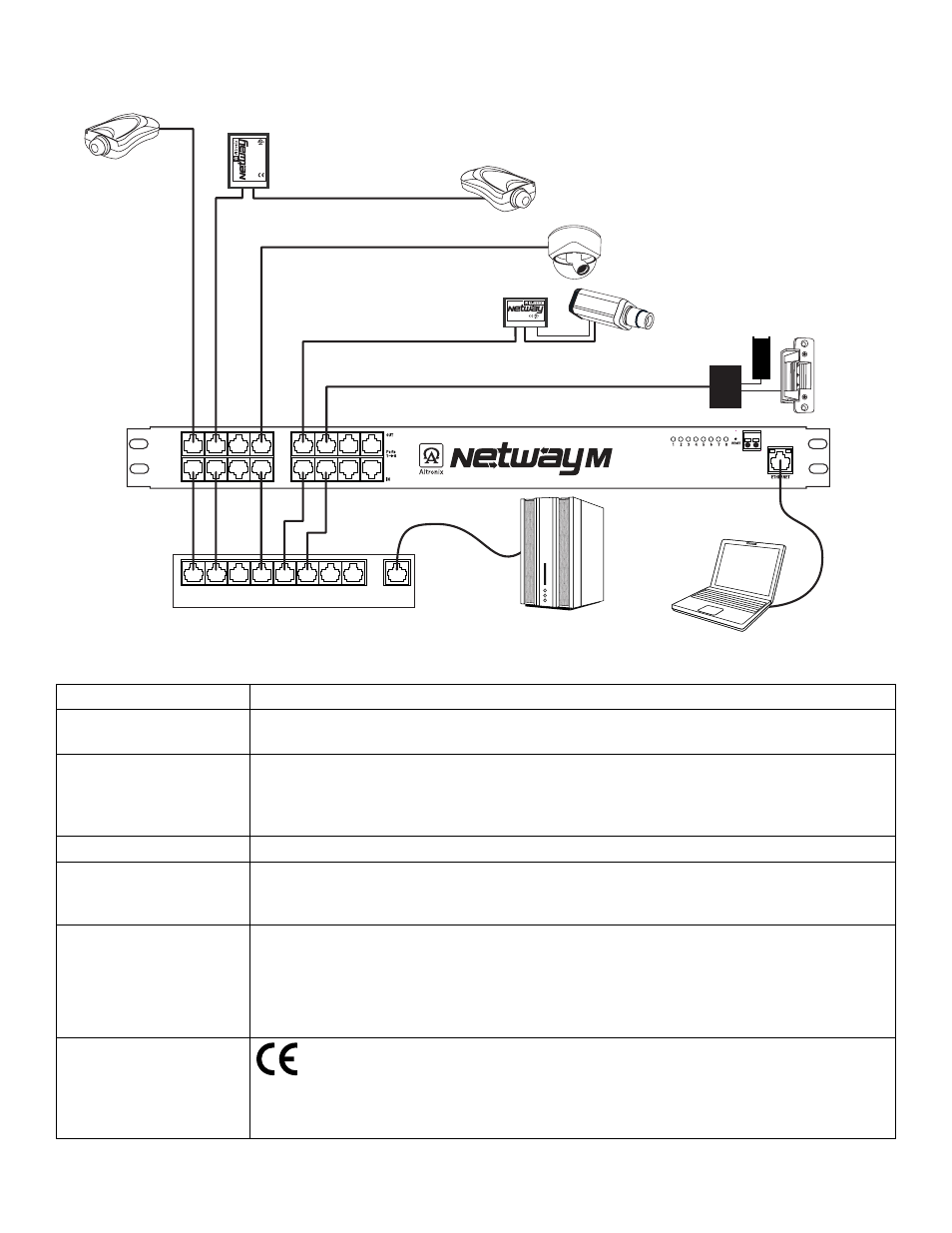

NetWay8M/NetWay16M Typical Application:
Fig. 4
Technical Specifications:
Parameter Description
No. of Ports NetWay8M - Eight (8) Ports.
NetWay16M - Sixteen (16) Ports.
Input power requirements NetWay8M: 115VAC 60Hz, 3 amp.
NetWay16M: 115VAC 60Hz, 4.9 amp.
Fuse: 4A/125V (NetWay16M has 2 fuses).
Note: To reduce the risk of fire, replace only with same type and rating of fuse.
Indicators Port Status LED
PoE Shutdown Voltage
and Current Range
5VDC to 24VDC or 12VAC to 24VAC
Minimum current: 2mA for 5VDC
Minimum current for higher voltages: 10mA
Environmental Conditions
Operating Ambient Temperature: UL60950-1 - 32ºF to 104ºF (0ºC to 40ºC).
UL294 - 32ºF to 120.2ºF (0ºC to 49ºC).
Relative humidity: 85%, +/ --- 5%
Storage Temperature: --- 4º to 158ºF (--- 20º to 70ºC) Storage
Operating Altitude: --- 1000 to 10,000 ft. (--- 304.8 to 3048m).
Regulatory Compliance UL/CUL Listed for Information Technology Equipment (UL 60950-1).
UL Listed for Access Control Systems (UL 294).
CE approved
NetWay8M
Card
Reader
HID Solo
Strike
NVR/Network Server
Ethernet Switch
Programming
and Status
PoE Camera
PoE Camera
NetWayXT
Extends Ethernet
100m (328 ft.)
NetwayXT Repeater
IN OUT Power
www.altronix.com
12VDC
IP camera
NetWay1512
www.altronix.com
IN OUT
Netway1512 Adapter
12VDC + Output ---
I.T.E. 43KC
PoE +
Camera
+ PoE --
SHUTDOWN
Typical UL294 Application:
