9 Diagnostics and service
VEGAFLEX 86 • Foundation Fieldbus
44233-EN-130910
8. Enter new probe length and then carry out a fresh adjustment
(see "Setup procedure, Carrying out min. adjustment - Carrying
out max. adjustment").
4
1
1
2
2
3
A
B
C
45 mm (1.77"
)
100 mm
(3.94"
)
25 mm (0.98"
)
50 mm
(1.97"
)

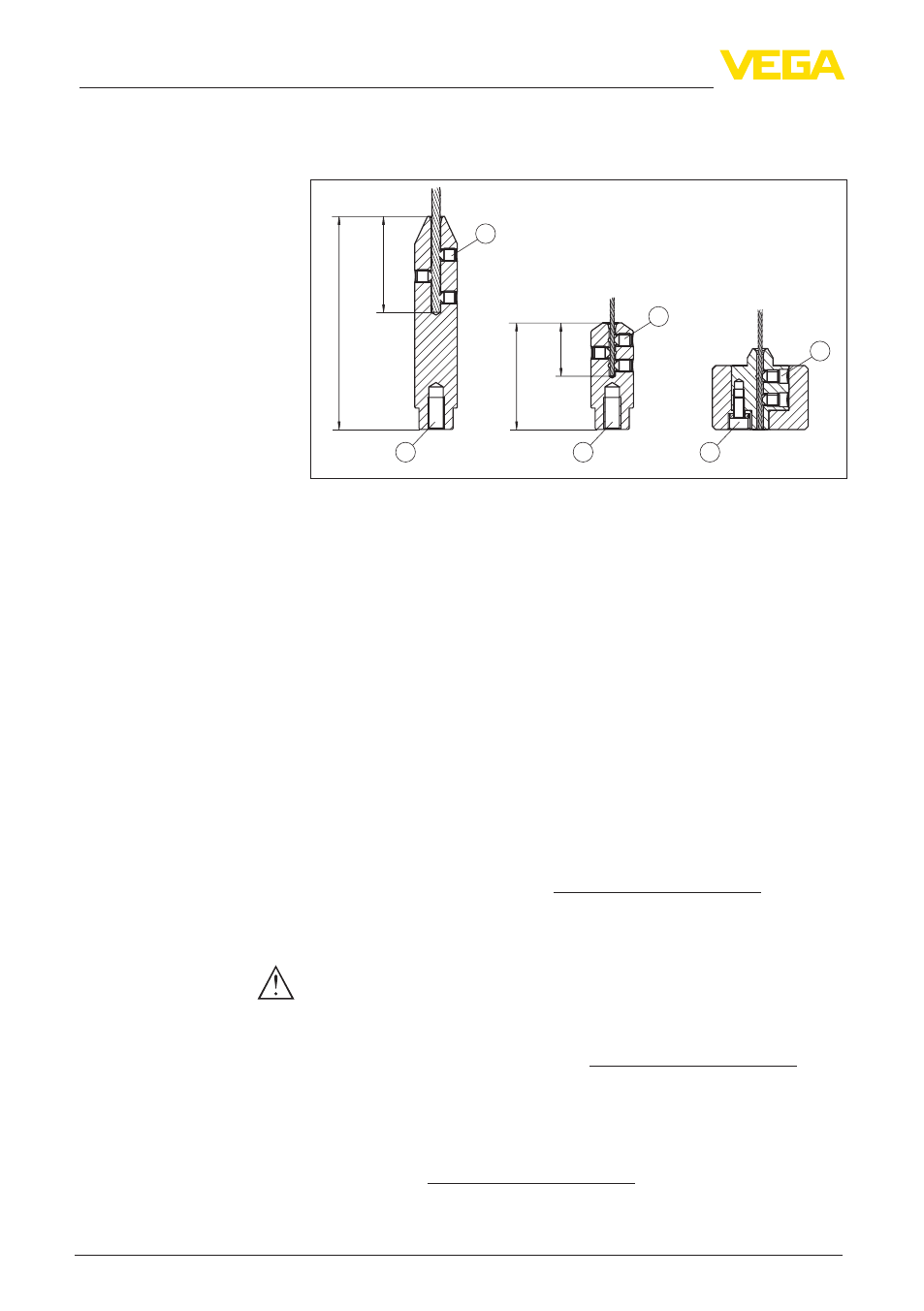

Fig. 55: Shortening the cable probe
A Gravity weight - cable ø 4 mm
B Gravity weight - cable ø 2 mm
C Centering weight - cable ø 2 mm
1 Pins
2 Thread M8 for eye-bolt
3 Fixing screw - centering weight
9.7 Software update
The following components are required to update the sensor soft-
ware:
•
Sensor
•
Voltage supply
•
Interface adapter VEGACONNECT
•
PC with PACTware
•
Current sensor software as file
You can find the actual sensor software as well as detailed infor-
mation of the procedur" and
"Software".
You can find information about the installation in the download file.
Caution:
Instruments with approvals can be bound to certain software ver-
sions. Therefore make sure that the approval remains effective with a
software update.
You can find detailed inf
"Approvals".
9.8 How to proceed in case of repair
You can find a repair form as well as detailed information on how to
pr and "Forms and certifi-
cates".
