6 Set up with the display and adjustment module
MINITRAC 31 • Foundation Fieldbus
41782-EN-131119
With this menu item you safeguard the sensor parameters against
unauthorized or unintentional modifications.
This menu item is described in the operating instructions manual
"Display and adjustment module".
Display
With this parameter you can change the display language.
This parameter is described in the operating instructions manual
"Display and adjustment module".

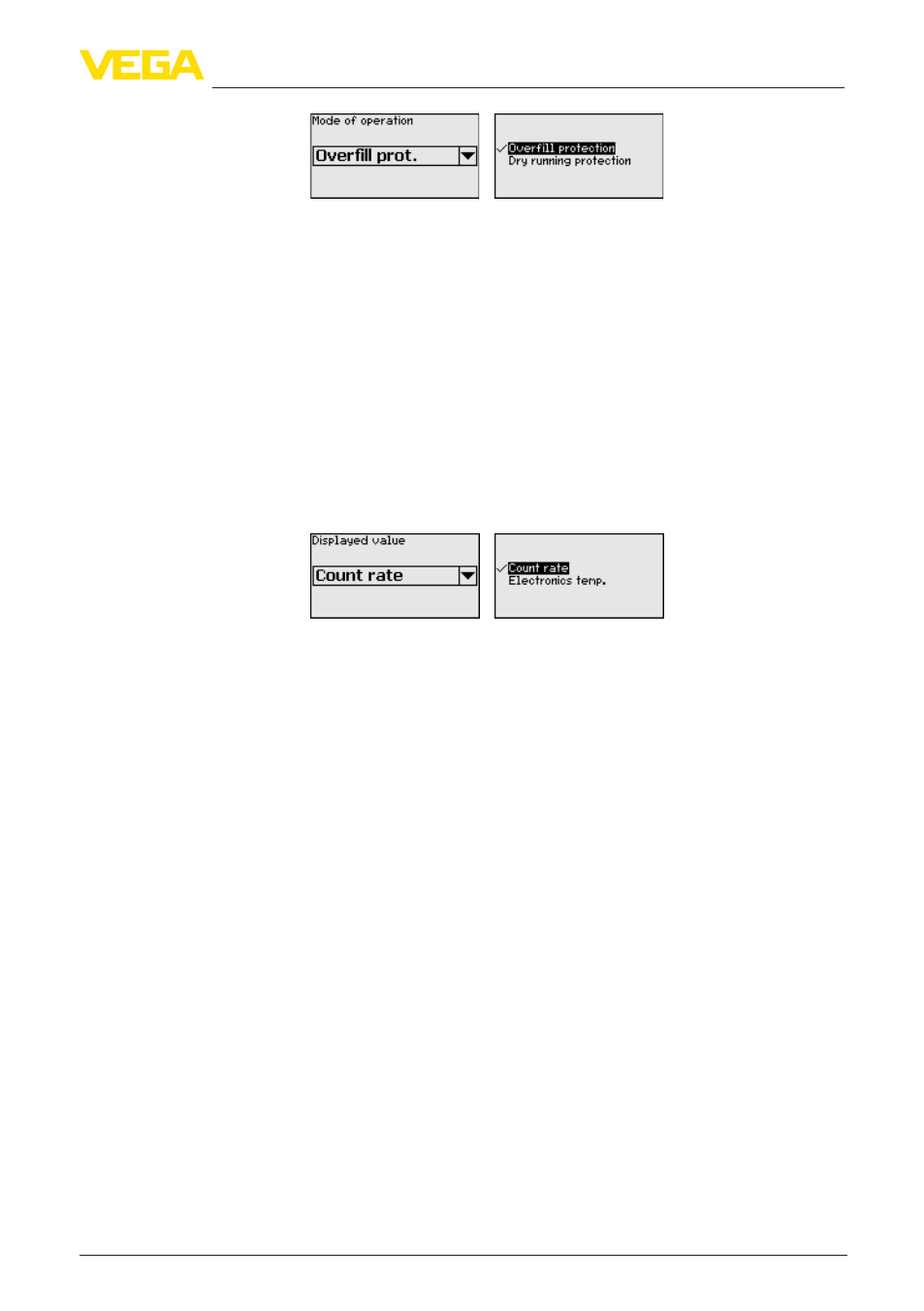

With this parameter you can change the indication of the display.
You can choose if the display should show the actual pulse rate or the
electronics temperature.
Diagnostics
In this menu item, you can enquire the status of your sensor. In normal
operation, the sensor displays the message "OK". In case of fault, you
will find the corresponding fault code here.
This parameter is described in the operating instructions manual
"Display and adjustment module".
The peak value function holds the max. and min. values during opera-
tion.
This parameter is described in the operating instructions manual
"Display and adjustment module".
Here, you can retrieve the adjustment value of the sensor. This is the
percentage value of the max. pulse rate at which the sensor switches
over.
If you have carried out a single point adjustment, this is the entered
value. With a two-point adjustment, this is the calculated value.
The value is an indication for the reliability and reproducibility of the
switching point.
The greater the difference in the pulse rate between covered and
uncovered status, the greater the differential value (Delta I) and the
more reliable the measurement. The automatically calculated damp-
ing is also oriented around the Delta I value. The higher the value, the
lower the damping.
A Delta I value below 10 % is an indication for a critical measurement.
Lock setup - adjustment
Display - Language
Display/Displayed value
Diagnostics - Device
status
Diagnosis - Peak value
Diagnosis - Adjustment
data
