6 Set up
6.1 Indicating and adjustment elements
1
2
3
on
PC
VEGALOG VEGALOG
571 CPU
!

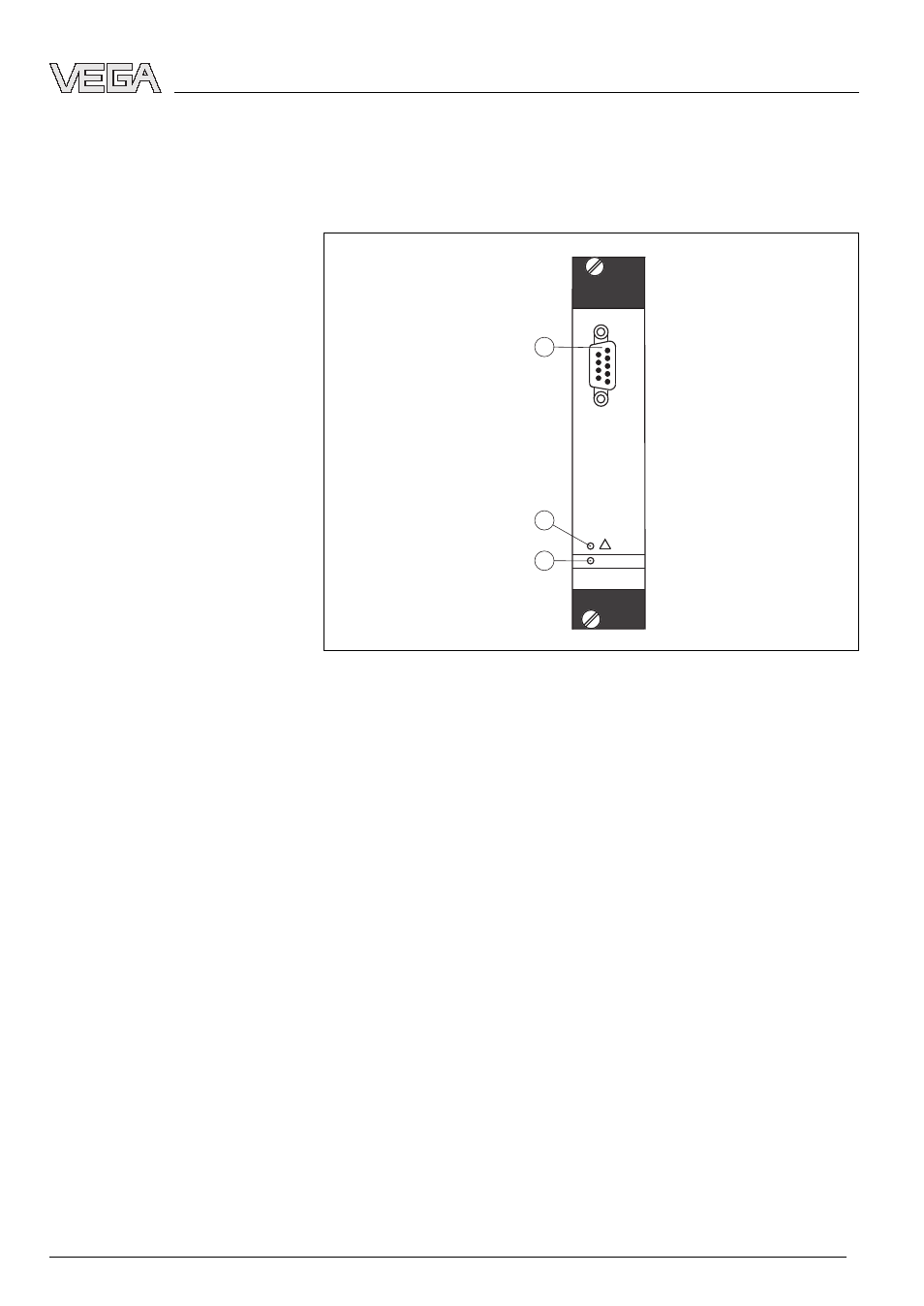

Fig. 6: Indicating and adjustment elements VEGALOG 571 CPU
1 RS232 interface
2 LED for fault signal
3 LED for operating voltage
l
LED fault signal [1]
- flashes in case of communication problems on the
LOGBUS
- lights during initialisation and during the self-test
-
lights permanently during a hardware error
l
LED operating voltage [2]
-
lights when voltage supply is on
The module cards of the VEGALOG system have no own
adjustment elements. All adjustment measures are carried out
through the PC via the adjustment software PACTware™.
6.2 Module card types
The modular system of VEGALOG 571 consists of different,
special module card types:
l
CPU card
Description of the status
LEDs
