9
3 Product description
PLICSRADIO T62 • Wireless emitting unit (multiple channel)
32624-EN-130228
1
2 3
4
5

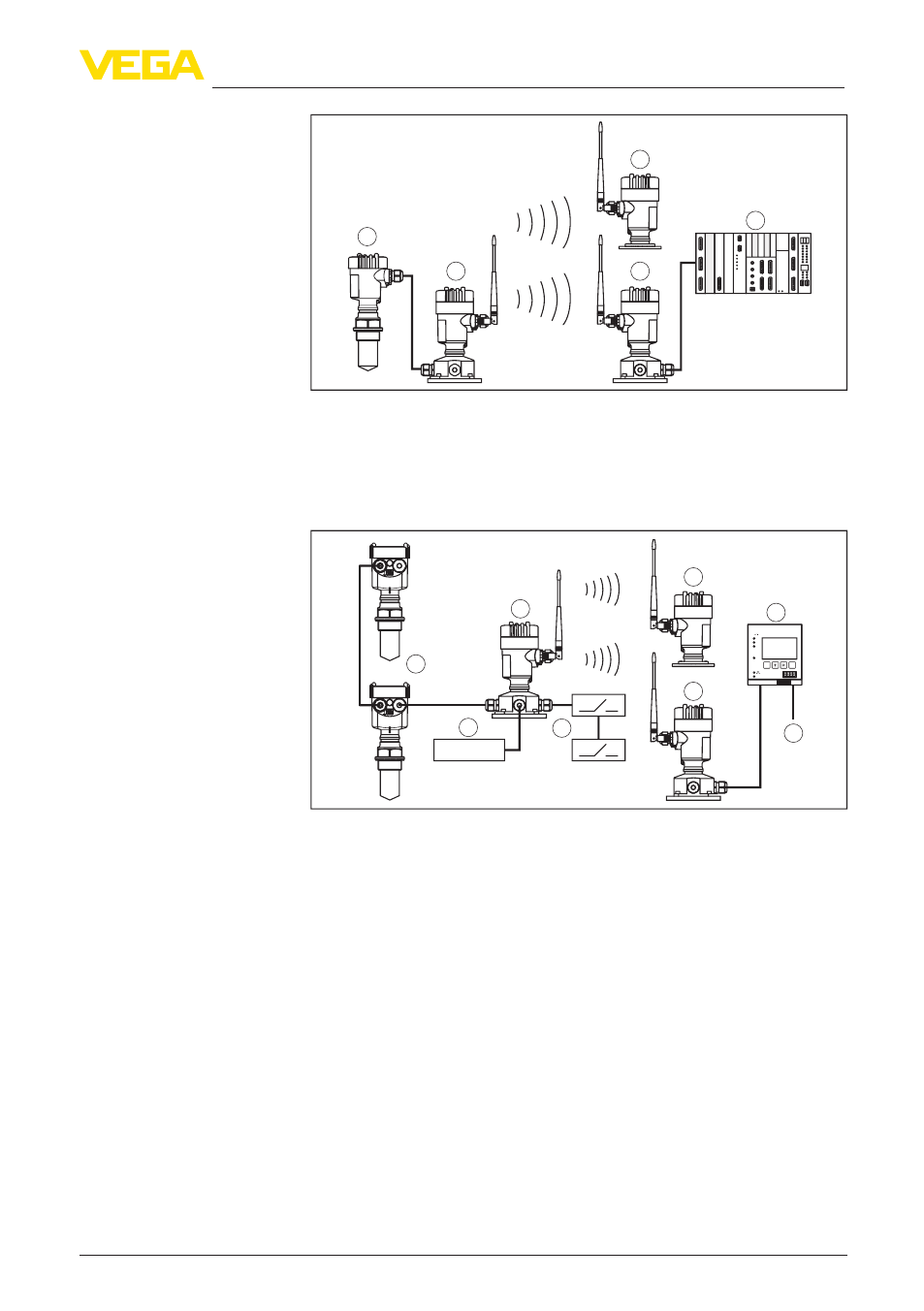

Fig. 2: Example PLICSRADIO - single channel application
1 HART sensor
2 Emitting unit PLICSRADIO T61
3 Receiving unit PLICSRADIO R61
4 Indicating unit PLICSRADIO D61
5 Processing, e.g. safety PLC or indication
4... 20 mA
Ser. No. 12345678
on
OK ESC
COM
PLICSRADIO C62
3
2
1
4
2 3
5
8
6
7
1
Fig. 3: Example PLICSRADIO - multiple channel application
1 2 x HART sensor
2 4 … 20 mA instrument
3 2 x switching instruments
4 Emitting unit PLICSRADIO T62
5 Receiving unit PLICSRADIO R62
6 Processing unit PLICSRADIO C62
7 Outputs (3 x 4 … 20 mA, 3 x relay, RS232/Ethernet)
8 Indicating unit PLICSRADIO D61
Up to three 4 … 20 mA/HART sensors can be connected to PLICS-
RADIO T62. The measured value transmission is carried out via the
digital HART protocol or the 4 … 20 mA signal depending on the
input. It can be also used as power supply unit for connected sensors.
There are also two inputs for switching instruments available. A PLIC-
SRADIO R62 available in the radio range can retrieve in conjunction
with a PLICSRADIO C62 the measured values of the connected sen-
sors via radio communication. A PLICSRADIO D61 available in the
radio range can display the measured values.
Functional principle
