VEGALOG 571 41

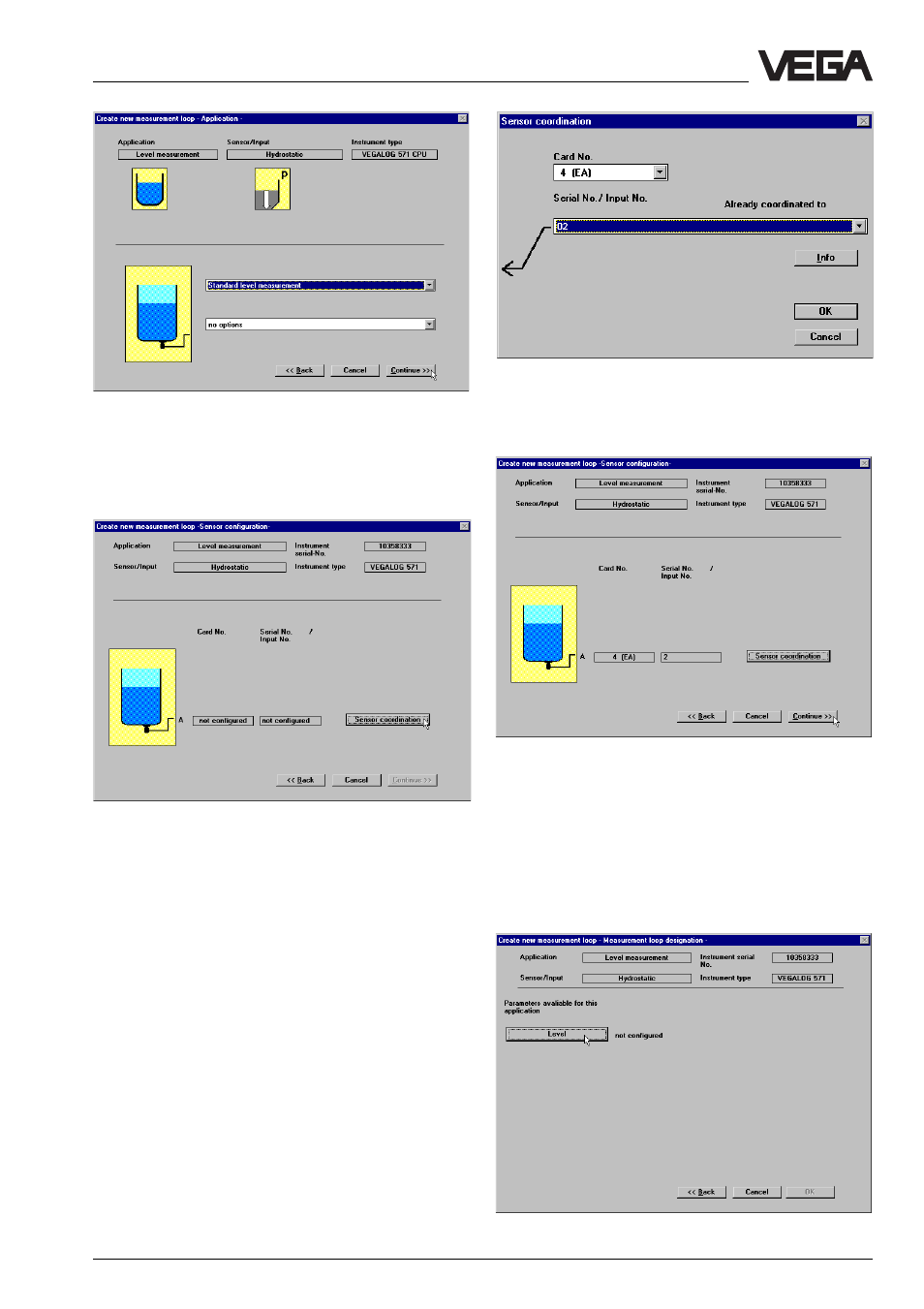

In the window “Create new measurement
loop - Sensor configuration“, you see that
there is no sensor co-ordinated to the meas-
urement loop. Click on
Sensor coordination .
In the window “Sensor coordination“, you can
determine which sensor is used for the meas-
urement loop. First choose the card (card
no.) to which the sensor is connected (or
should be connected) and then the input
number. In the example shown, card 4 (ana-
logue inputs), input no. 2. If you now click on
Info , you see to which card terminals the
sensor must be connected. With OK you
return to the window “Create new measure-
ment loop - Sensor configuration“.
In this window, you can now see that a sen-
sor is co-ordinated to the measurement loop.
Therefore, you can click on
Continue>> .
In the window “Create new measurement
loop - Measurement loop designation“, you
see that the configuration procedure is not
yet finished. Click on
Level – (if, for example,
you adjusted “Gauge measurement“ at the
beginning of the creation of a new loop, in-
stead of
Level , then Gauge will appear).
Set-up
