Wall Installation
Referring to Figure 1a, measure the Full Length of the housing and determine Dim K for brackets’ locations. Mount the brackets to
the wall with suitable fasteners. Be sure the brackets are level.

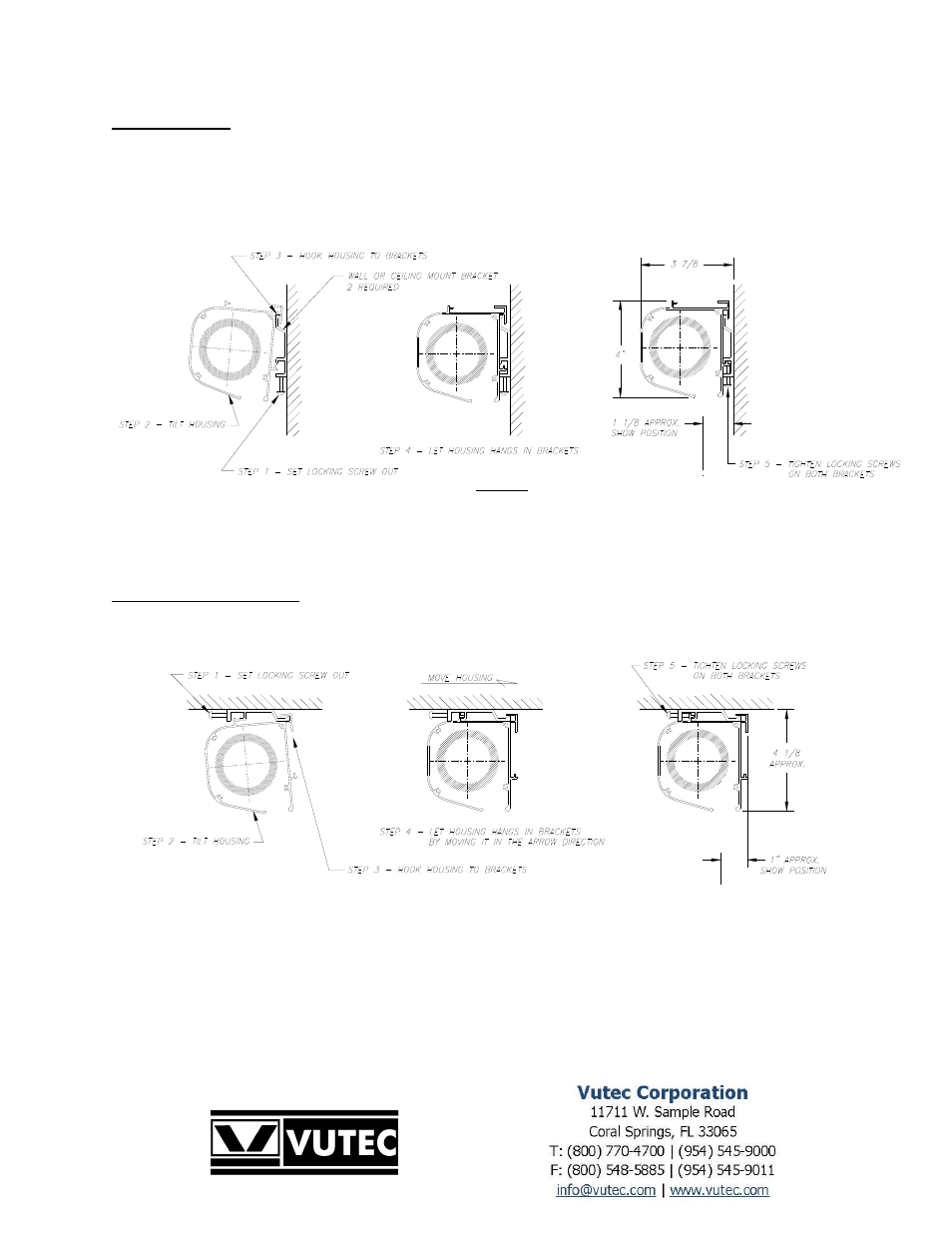

Follow the steps in Figure 2. Note, screen housing can be move side to side once it is hung in the brackets.
Under Ceiling Installation
Follow the steps in Figure 3. Note, screen housing can be move side to side once it is hung in the brackets.
Figure 2
