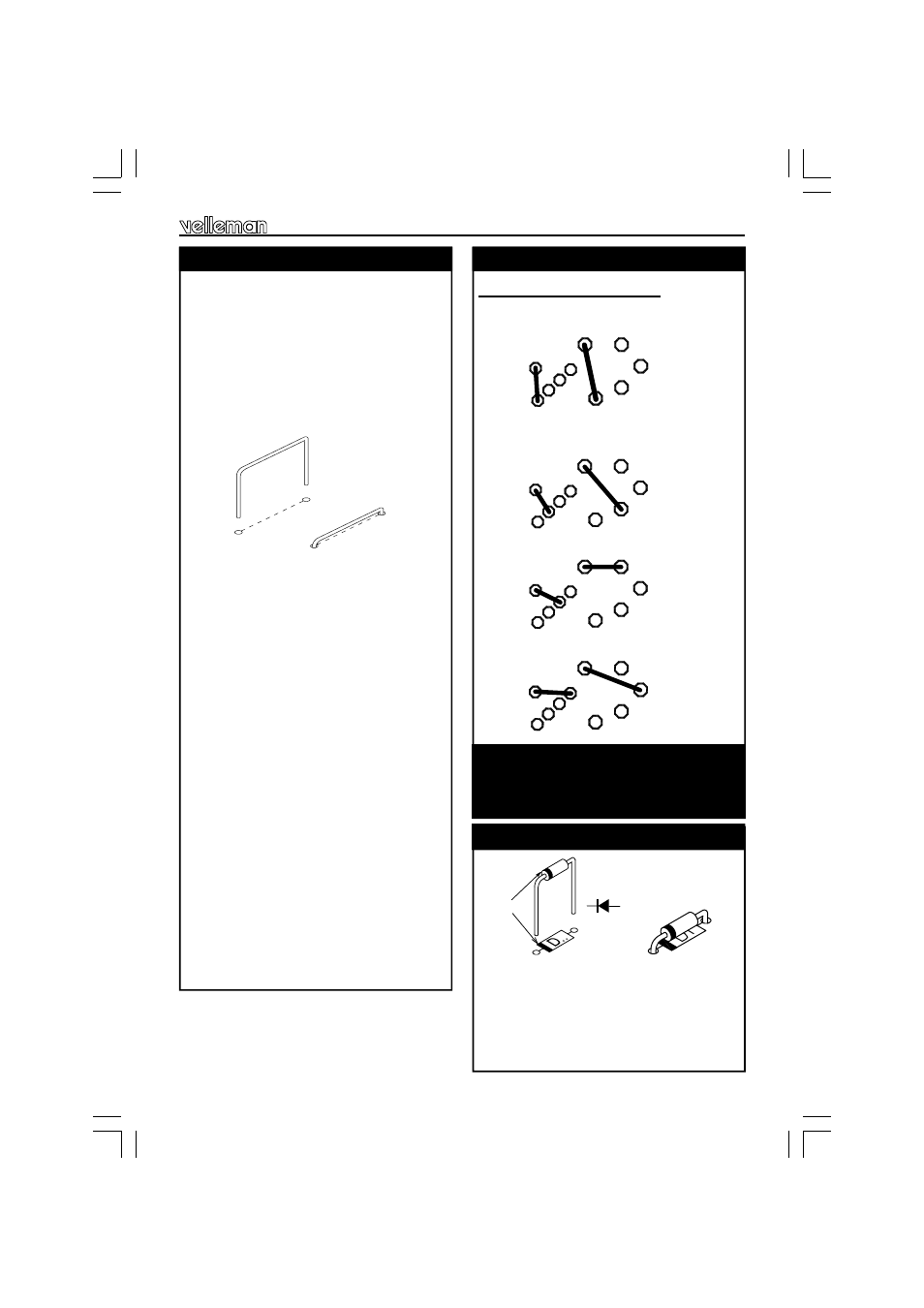

Construction

Note that from J1 to J6, two jumper leads have to
be mounted in the same hole.

TIP : In order to get nice straight wiring, without too
much folding and measuring, follow these hints:

Mount the lead on the PCB as it is.
Solder 1 end of the lead.
Then carefully pull on the free end of the lead

until it is straight.

Now solder the other end.

J1 (2 wires)

J2 (2 wires)

J3 (2 wires)

J4 (2 wires)

J5 (2 wires)

J6 (2 wires)

J10

J11

J12

J13

J14

J15

J16

J17

J18

J19

J20

J21

J22

J23

J24

J25

J26

2. Jumpers.

3. Jumpers for voltage selection

REMARK: Strike out the NOT used mains
voltage indication at the back of the
housing !! e.g. cross out with a permanent
black marker.

D1 : 1N4148

D2 : 1N4148

D3 : 1N4007

D4 : 1N4007

D5 : 1N4007

D6 : 1N4007

4. Diodes. Watch the polarity!

D...

CATHODE

MAINS VOLTAGE SELECTION:

For 100V mains input, mount:

For 120V mains input, mount:

For 230V mains input, mount:

For 240V mains input, mount:
