Mount the ring core transformers:
Stick a adhesive foot to the base of the cabinet, in the middle where each transformer has to be put.
Mount an output transformer on the left-hand side of the housing, see figure 6.0.
Check the position of the leads.
Turn over the housing and solder the trans-
former leads to the output terminals, see
figure 7.0.
Do not forget to insert a 3 cm length of insulating heat shrink sleeve over the wires:
Solder the double yellow wire to the 4 Ohm loudspeaker terminal.
Solder the red wire to the 0 loudspeaker terminal.
Solder the blue wire to the 8 Ohm loudspeaker terminal.
IMPORTANT: Heat the terminals up until the solder melts easily. Then slide the insulating heat
shrink sleeve over the leads.
PLATE
RUBBER WASHER
TRANSFORMER
RUBBER WASHER
METAL CASE
BOLT

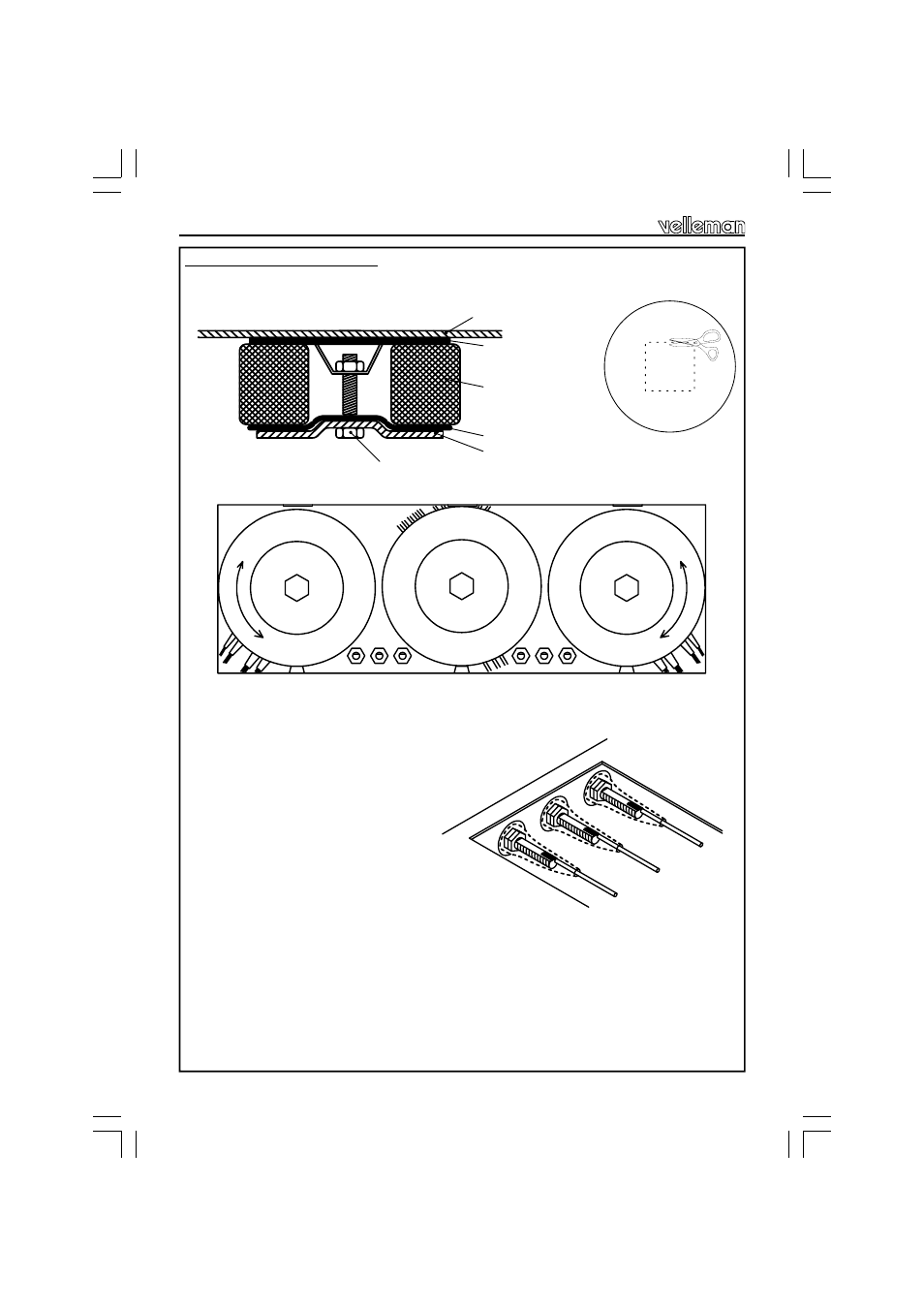

Fig. 5.0
Cut
4 x 4 cm
OUTPUT
TRANSFORMER
ZD043
TRANSFORMER
8D002
POWER
TRANSFORMER
ZD043
OUTPUT
WIRES WIRES WIRES
WIRES
ADHESIVE
FOOT FOOT
ADHESIVE
FOOT
ADHESIVE
WIRES
ADHESIVE
PROTECTION
FOIL
PROTECTION
FOIL
ADHESIVE
PROTECTION
FOIL
ADHESIVE
Fig. 6.0
4
0
8
BLUE
YELLOW
RED
HEAT-SHRINK
SLEEVE
Fig. 7.0
