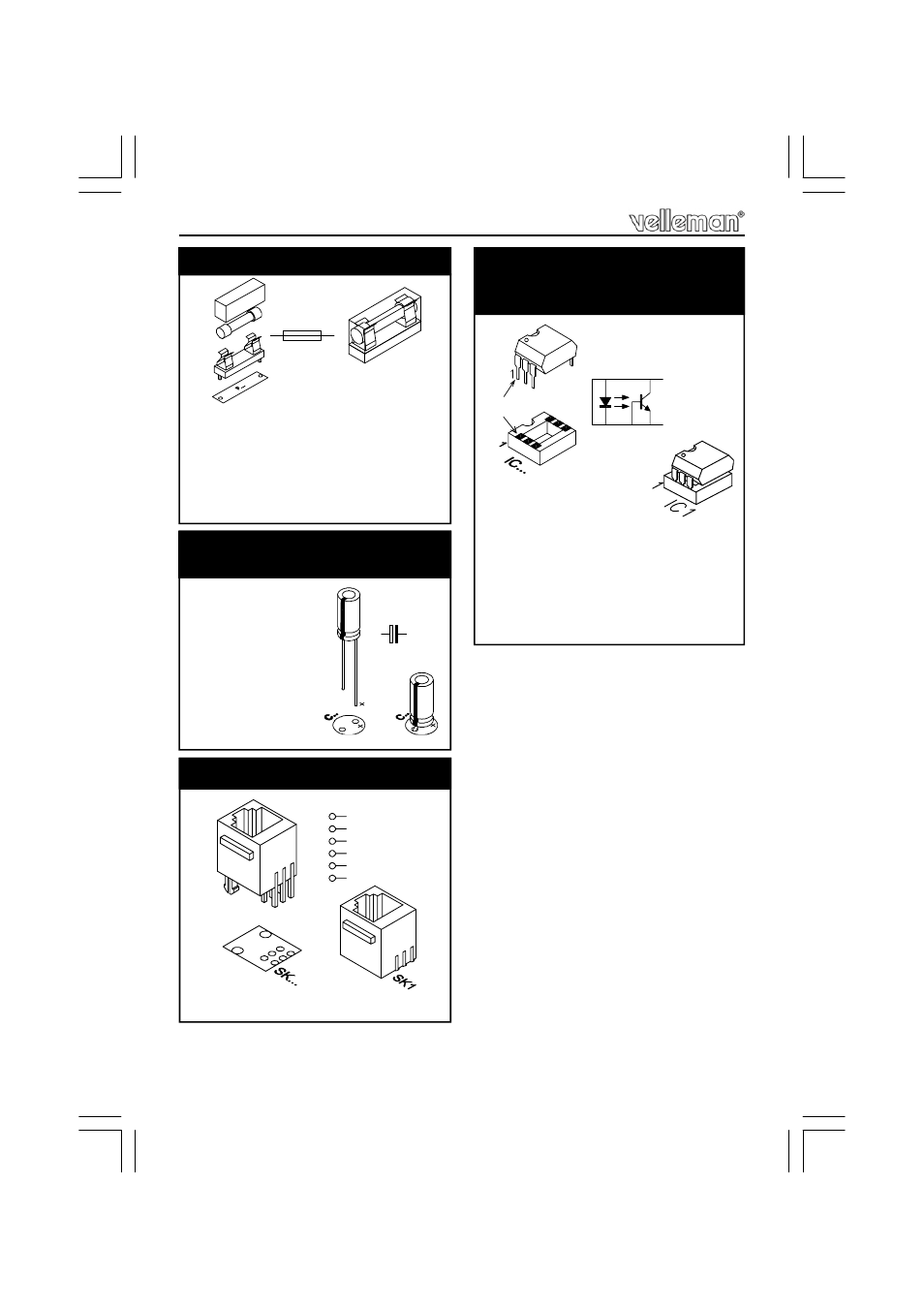

Construction
F1 : 2,5A SLOW
F2 : 2,5A SLOW
F3 : 2,5A SLOW
F4 : 2,5A SLOW
F5 : 2,5A SLOW
10. Fuse Holder + Fuse
F...
C1 : 22µF/50V
C2 : 22µF/50V
C3 : 22µF/50V
C4 : 22µF/50V
C5 : 22µF/50V
11. Electrolytic capacitors. Check
the polarity !
C...
SK21 : 6-POLE
12. Modular Jack
SK...
IC1 : 4N27, TIL111 or eq.
IC2 : 4N27, TIL111 or eq.
IC3 : 4N27, TIL111 or eq.
IC4 : 4N27, TIL111 or eq.
IC5 : 4N27, TIL111 or eq.
13. Insert the OPTO Coupler into
the socket (Watch the position of
the notch!)
IC...
2
1
6 4
5
PIN 1
