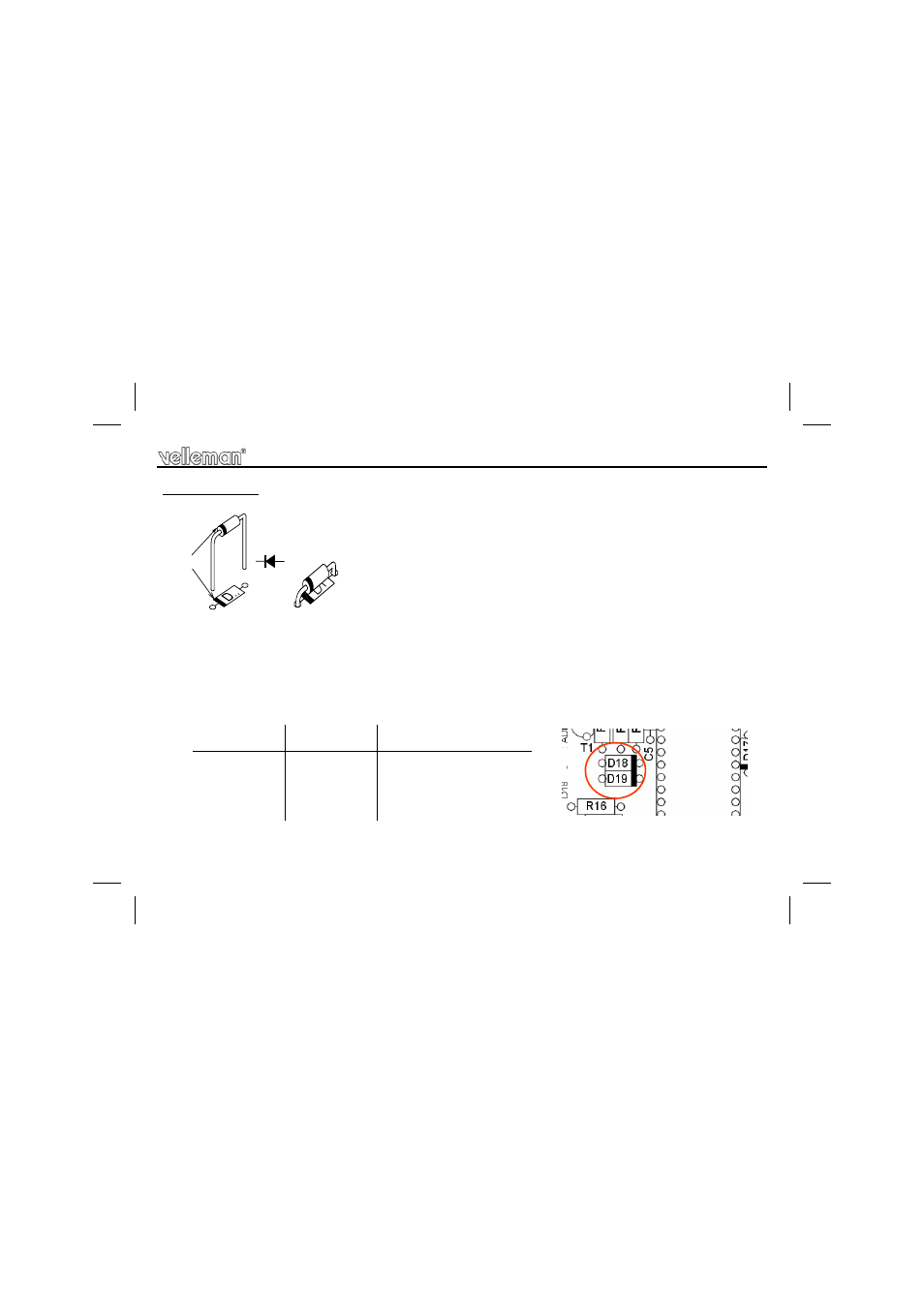

Set-up
D18 D19 ADDRESS SELECTION
Not mounted Not mounted 1 (D4 K6710)*
Not mounted Mounted 2 (D6 K6710)*
Mounted Not mounted 3 (D5 K6710)*
For each output :
If a momentary output is needed, DO NOT mount a diode for the
corresponding output D1 to D15.
If a toggle output is needed, MOUNT a diode for the corresponding
output D1 to D15.
ADDRESS SELECTION
Different possibilities in conjunction with diode setup:
The address selection allows you to operate up to 3 receivers in the same room without interference. Each
receiver shall have its own address setting.
HINT: 3 receivers in the same room gives you 45 outputs thanks to address setting.
D...
CATHODE
Diode type: 1N4148
Check the polarity !
