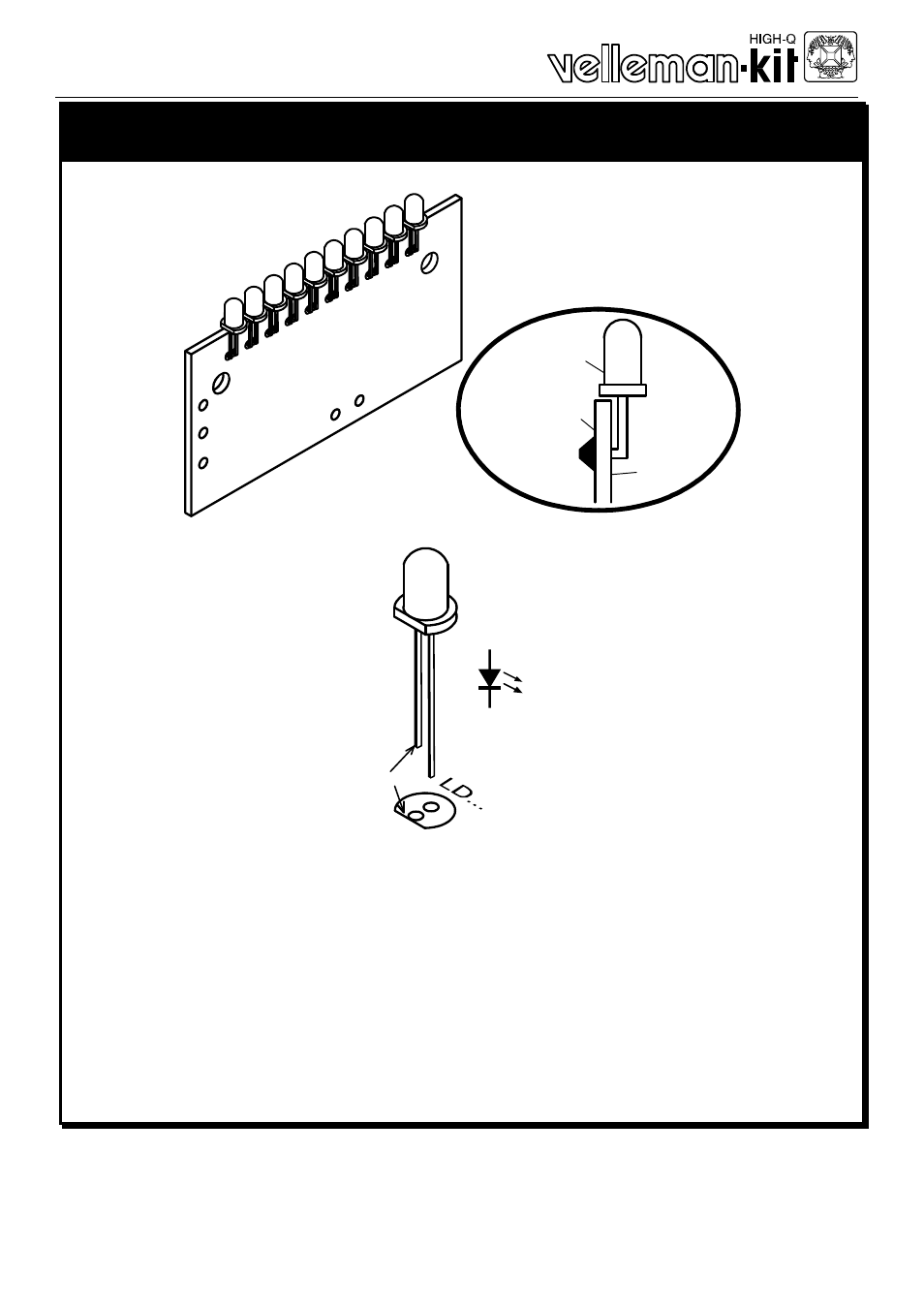

10. MOUNT THE LEDs, BEND THE LEADS CAREFULLY

(Check the polarity)

PCB

SOLDER

SIDE

LED

q LD1: green (5)

LD...

COLOR = 2...5

CATHODE

q LD2: green (5)
q LD3: green (5)
q LD4: green (5)
q LD5: green (5)
q LD6: green (5)
q LD7: green (5)
q LD8: yellow (4)
q LD9: yellow (4)
q LD10: red (2)
