5

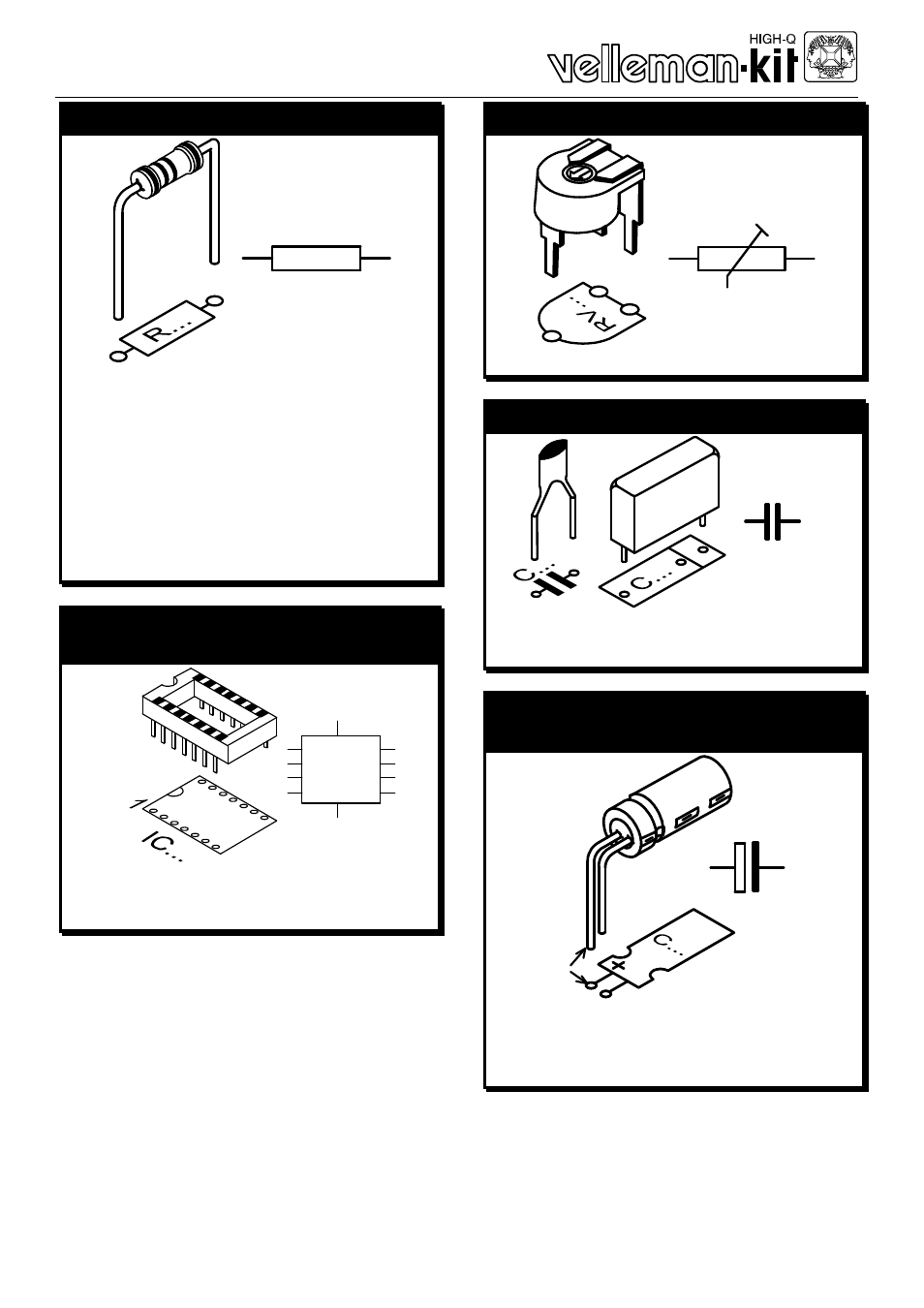

4. ¼W RESISTORS
R...
q R1:
47K (4-7-3-B)
q R2:
47K (4-7-3-B)
q R3:
330 (3-3-1-B)
q R4:
10K (1-0-3-B)
q R5:
10K (1-0-3-B)
q R6:
2K2 (2-2-2-B)
q R7:
470K (4-7-4-B)
5. IC SOCKETS
(Check the position of the notch)
IC...
1
q IC1: 8P
q IC2: 18P
6. RESISTOR TRIMMERS
RV...
q RV1: 220K (250K)
7. CAPACITORS
C...
q C1: 220nF (0.22µF, 224)
q C2: 220nF (0.22µF, 224)
8. ELECTROLYTIC CAPACITOR
(Check the polarity)
C...
+
q C3: 47µF
q C4: 47µF
q C5: 47µF
