LMS Disassembly
LMS Steer Axle - Removal
Never work under a vehicle supported by only a jack.
Always support vehicle with stands. Block the wheels and
make sure the vehicle will not roll before releasing the
brakes.
Wheel end seals can be easily damaged during handling.
Leave the seal in its package until installation to prevent
damage or contamination.

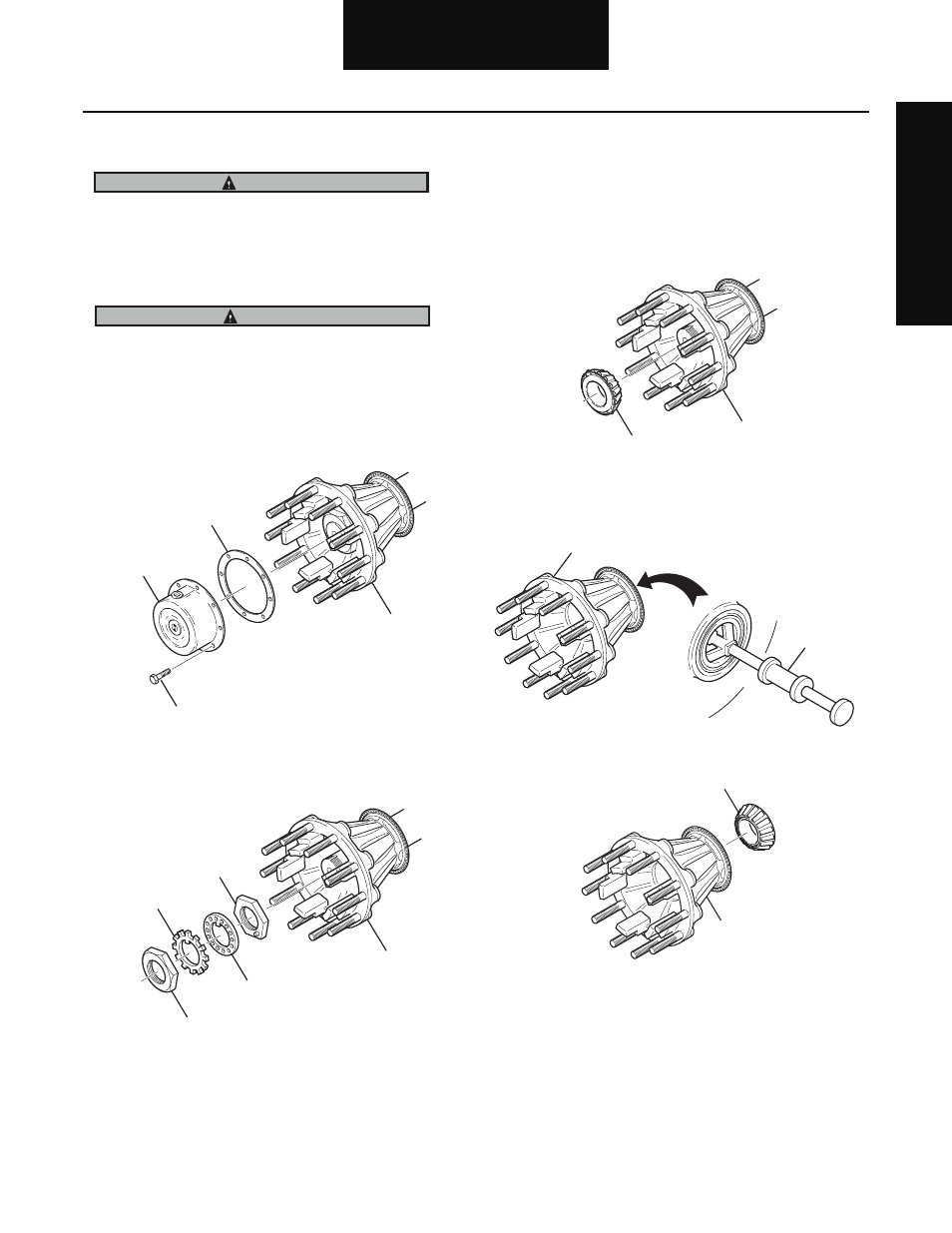

1. Jack up vehicle. Place drain pan under wheel end.
2. Remove hubcap bolts, hubcaps and gasket.
3. Remove locking tabs (if present).
4. Remove outer spindle nut and locking system.
5. Remove outer bearing.
6. Clean spindle.
7. Remove seal from hub.
8. Remove inner bearing.
WARNING
IMPORTANT
Hub cap bolt
Hub cap
Gasket
Hub
Outer jam nut
Spindle washer
Lock ring
Inner jam nut
Hub
Outer bearing
Hub
Slide hammer
Hub
Inner bearing
Hub
