Drive pinion – Spicer Convertible Tandem Axles User Manual
Page 24
18
Drive Pinion

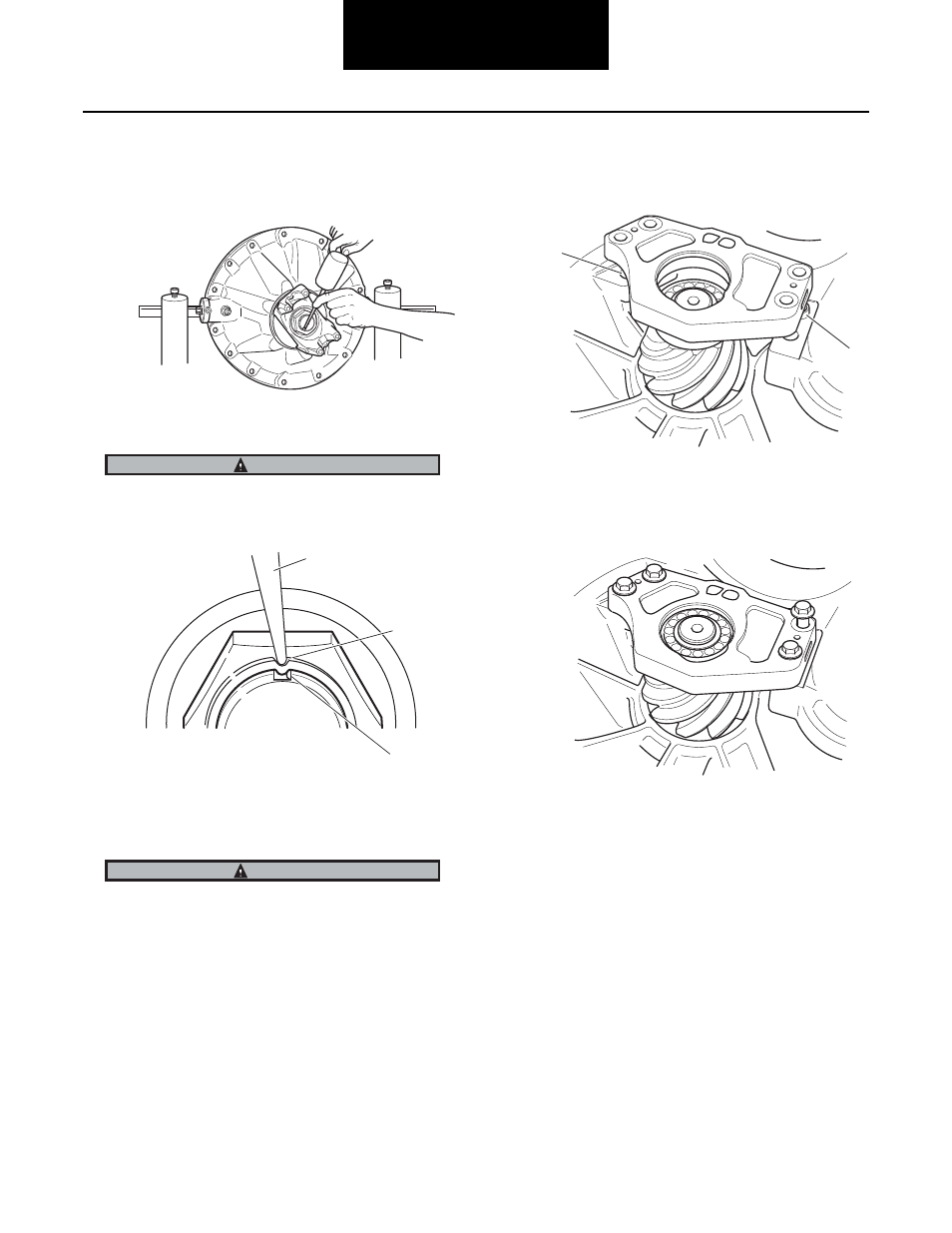

19. Once the proper rolling torque is achieved, use a
punch with a round tip to stake the pinion nuts
flange into the machined slot in the pinion shaft. See
diagram below.
The stake must be deep enough to enter the machined slot
of the pinion. See diagram below.
Failure to stake the pinion nut properly may result in the nut
coming loose during service. The pinion nut should never
be reused, always replace with new.
20. If a pilot bearing web is used, lineup the web to
the locating sleeves and tap in place with a rubber
mallet.
21. Install cap screws and torque to the proper specifi-
cations. See the Torque Chart.
TIP: If you are unable to torque the yoke nut cor-
rectly, try torquing the nut with the truck wheels on
the ground and with the axle shafts installed.
CAUTION
1 - Round Tipped Chisel
2 - Nuts Staking Flange
3 - Machined Slot In Pinion
1
2
3
WARNING
1
1
1 - Locating Sleeves
