Wheel Differential Assembly
Wheel Differential
Assembl
y

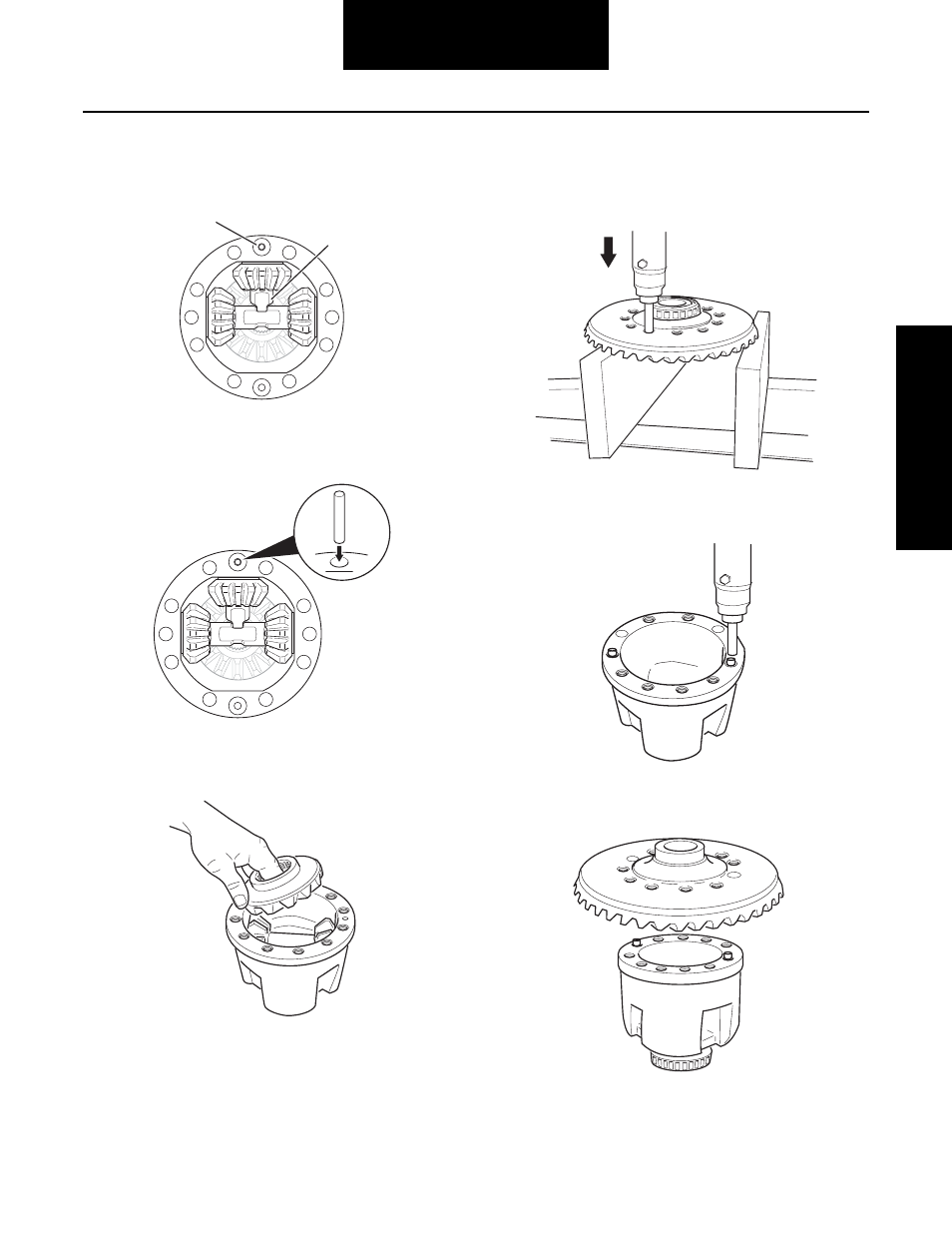

18. The end of the half shaft should fit into the slot of
the full shaft at the same time as the hole in the case
lines up with the hole in the half shaft.
19. Install the locking pins to both sides of the differen-
tial case.
20. Install outer side gear.
Note: No thrust washer is used at this location.
21. Next, the two locating dowel pins that are pressed
into the ring gear must be removed.
Note: The dowel can only be pressed in one direction. Press
the dowels towards the inside of the gear.
22. Press the dowel pins into the holes that the shaft
locking pins were installed.
23. Lower the ring gear onto the case assembly aligning
the locking dowels.
Fit End
Into Slot
Align Pin
Holes
Locking
Pin
