S130 carrier assembly – Spicer Single Drive Axles Service Manual: S110 and S130 User Manual
Page 14
11
Carrier Assembly
Carrier As
sembly

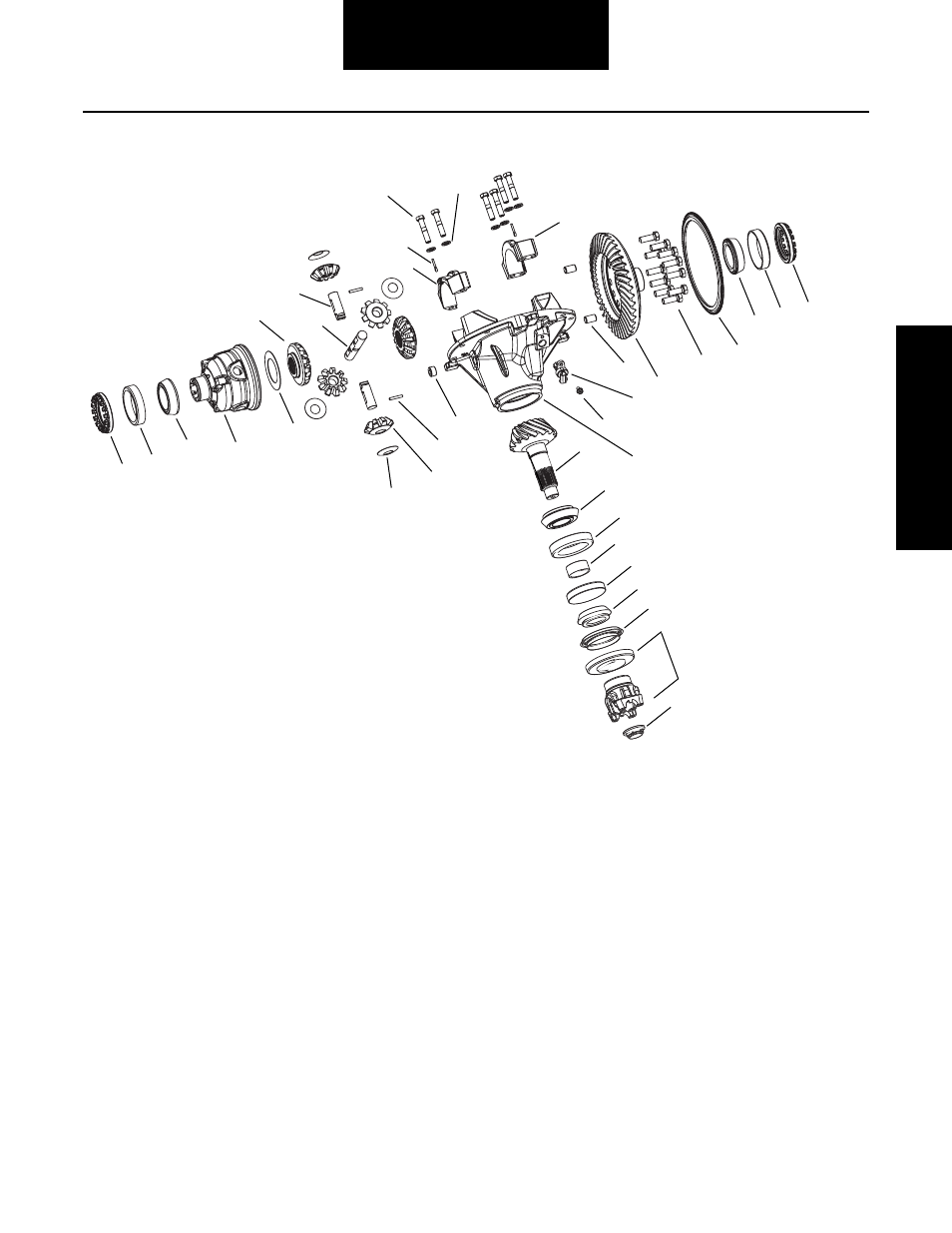

S130 Carrier Assembly
1 - Pinion Nut
2 - End Yoke
3 - Slinger
4 - Outer Pinion Bearing Cone
5 - Outer Pinion Bearing Cup
6 - Pinion Spacer
7 - Inner Pinion Bearing Cup
8 - Inner Pinion Bearing Cone
9 - Drive Pinion
10 - Carrier Housing
10A - Carrier Housing Assembly
10B - Switch
10C - Capscrew
10D - Backing Ring
11 - Diff Case Dowels
12 - Ring Gear
13 - Ring Gear Bolt
14 - Flange Half Bearing Cone
15 - Flange Half Bearing Cup
16 - Fland Half Bearing Adjuster
17 - Side Pinion Thrust Washer
18 - Side Pinion
19 - Side Gear
20A - Differential Shaft
20B - Differential Stub Shaft
21 - Pin
22 - Capscrew
23 - Flat Washer
24 - Flange Half Cap
25 - Plain Half Cap
26 - Cotter Pin
27 - Side Gear Thrust Washer
28 - Plain Half Diff Case
29 - Plain Half Bearing Cone
30 - Plain Half Bearing Cup
31 - Plain Half Bearing Adjuster
32 - Pipe Plug
33 - Optional Truetrac
1
9
8
7
6
5
4
3
2
10C (Optional)
10B (Optional)
11
12
13
14
15 16
10D (Optional)
31
30
29
28
27
17
18
32
21
19
10, 10A (Optional)
(10A includes items 10B, 10C and 10D)
24
25
22
23
20B
20A
26
