Wheel Differential Assembly
Wheel Differential
Assembl
y

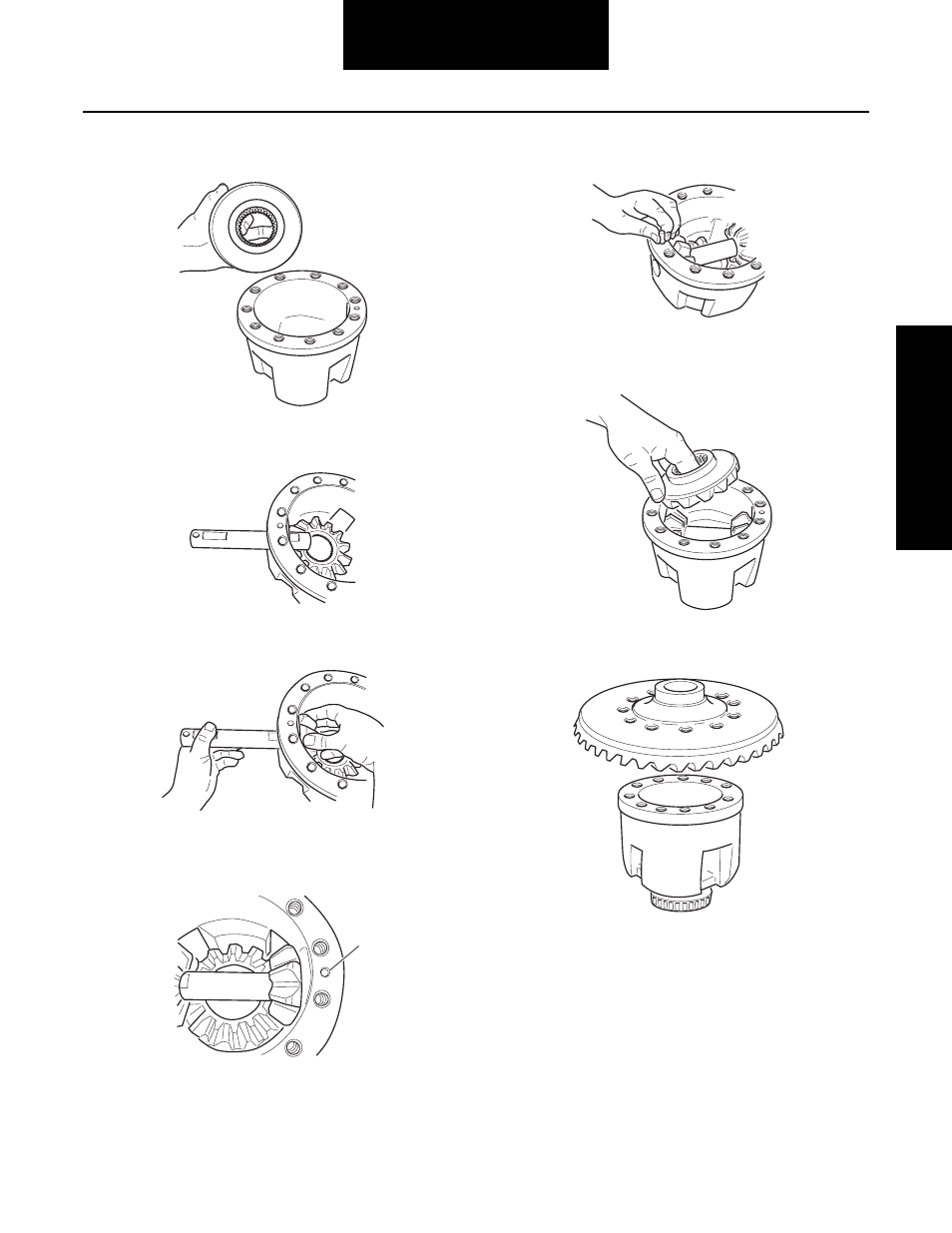

10. Install inner side gear and thrust washer in differen-
tial case.
11. Start wheel differential shaft in differential case with
the locking pin hole facing up.
12. Install the first side pinion thrust washer and gear.
Push shaft through washer and side pinion.
13. Install second side pinion and thrust washer. Push
shaft through washer and side pinion until it is flush
to the outside of the case.
14. Make certain the hole in the shaft and case line up
and install the locking pin.
15. Install outer side gear.
Note: No thrust washer is used at this location.
16. Lower ring gear onto case assembly aligning the ring
gear capscrew holes.
