Page 18
15
Diagnostics

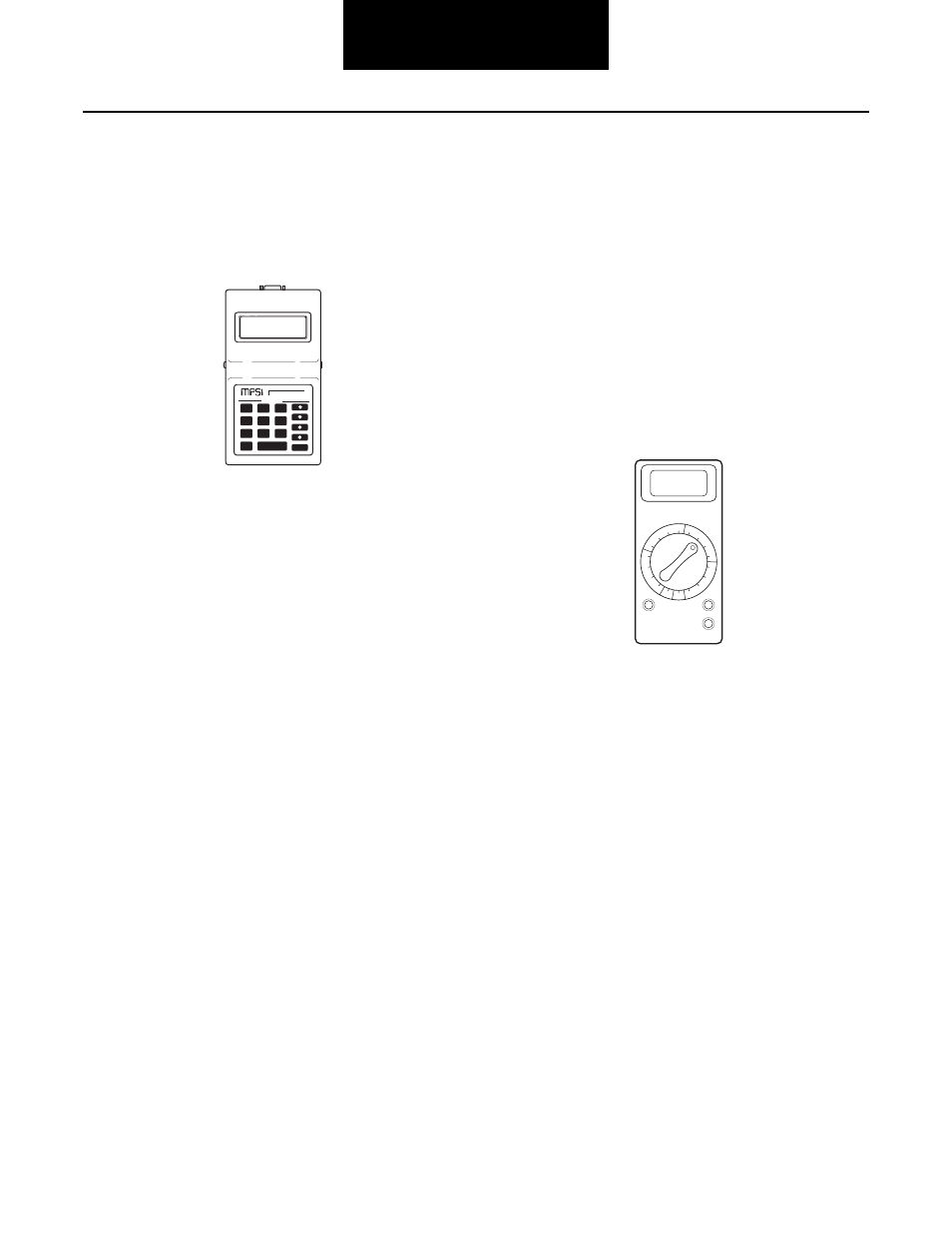

Handheld Tester
A Prolink handheld tester may be used to read and clear
service codes and to obtain a short description of failures. The
tester can initiate test sequences for controller outputs and
can also read system parameters when equipped with the
Dana program card.
Multimeter
Based upon system schematics and aided by component
specific service codes, a multimeter can be used to check
sensor and solenoid resistances and to find wiring harness
faults. The multimeter can be used to check the Tire Pressure
Control System wiring and components for:
•
Continuity
•
Ground
•
Broken wires
•
Open circuits
•
Shorted circuits
•
Incorrect battery voltage
MICRO PROCESSOR SYSTEMS INC.
Pro-Link
KENT-MOORE
ENTER
FUNC
7
8
9
4
5
6
1
2
3
0
