1.0 Introduction
The ZEN controller presented in this document is based on the Signal Ranger Mk2 DSP
board and the SR2_Analog8 expansion board from Soft dB.
The Signal Ranger Mk2 DSP (Digital Signal Processor) board has the following features:
1) DSP (TMS320C5502@300 MHz) 16-bit fixed point from TI.
2) FPGA (XS3S400) with 63 user-programmable digital I/Os from XILINX.
3) High speed USB 2.0 interface.
4) 64 kbytes on-chip (DSP) dual-access RAM, 4 Mbytes external 75 MHz SDRAM
and 2 Mbytes external Flash ROM.

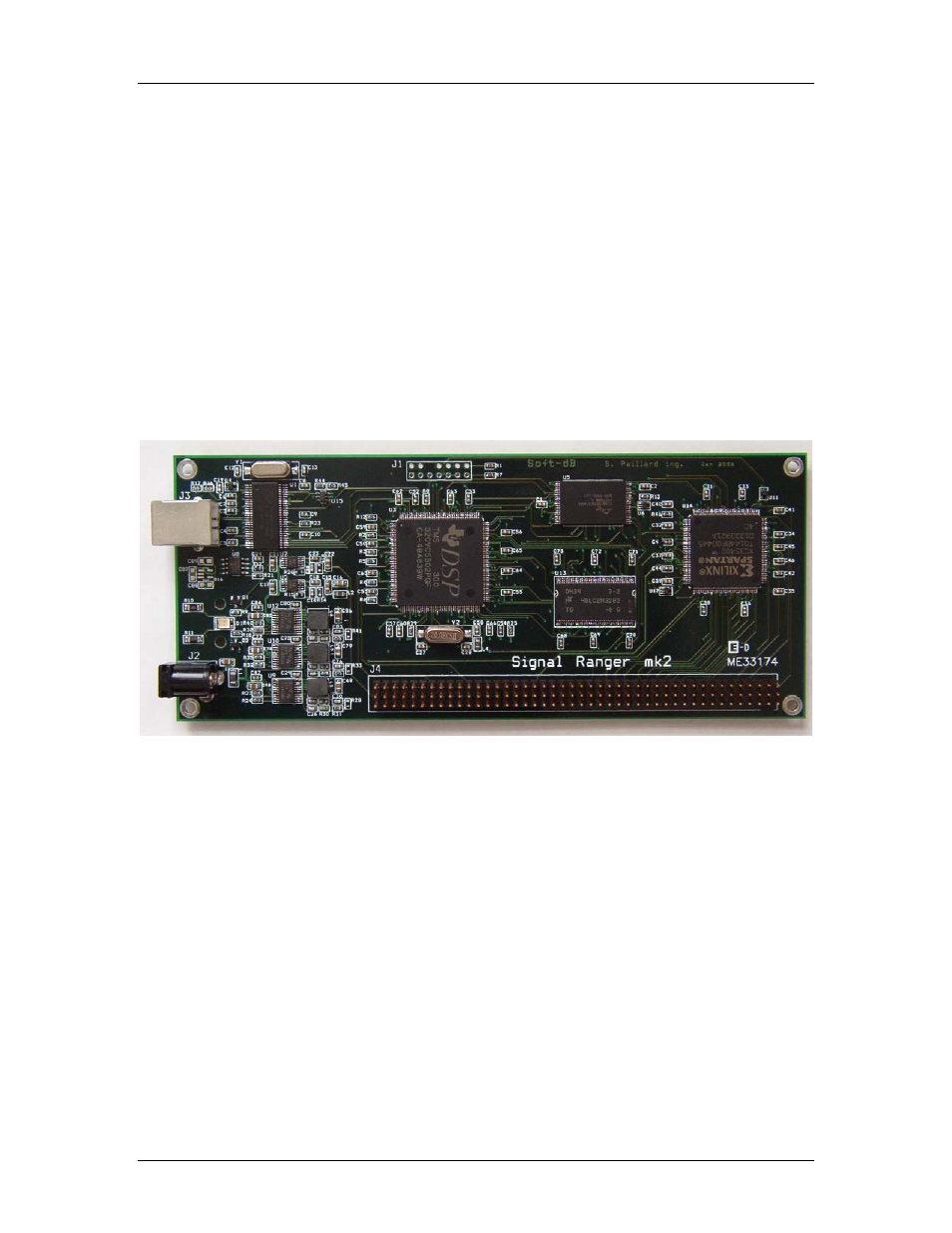

Figure 1: Signal Ranger Mk2 DSP board (without the SR2_Analog_8 expansion
board)
