MSD GM HEI Rotor
PN 84101
The MSD GM HEI Rotor is supplied ready to install on MSD’s HEI Distributor, PN 8365. It can also be
used on stock GM HEI Distributors by removing the x-shaped Rotor Adapter as shown in Figure 1.

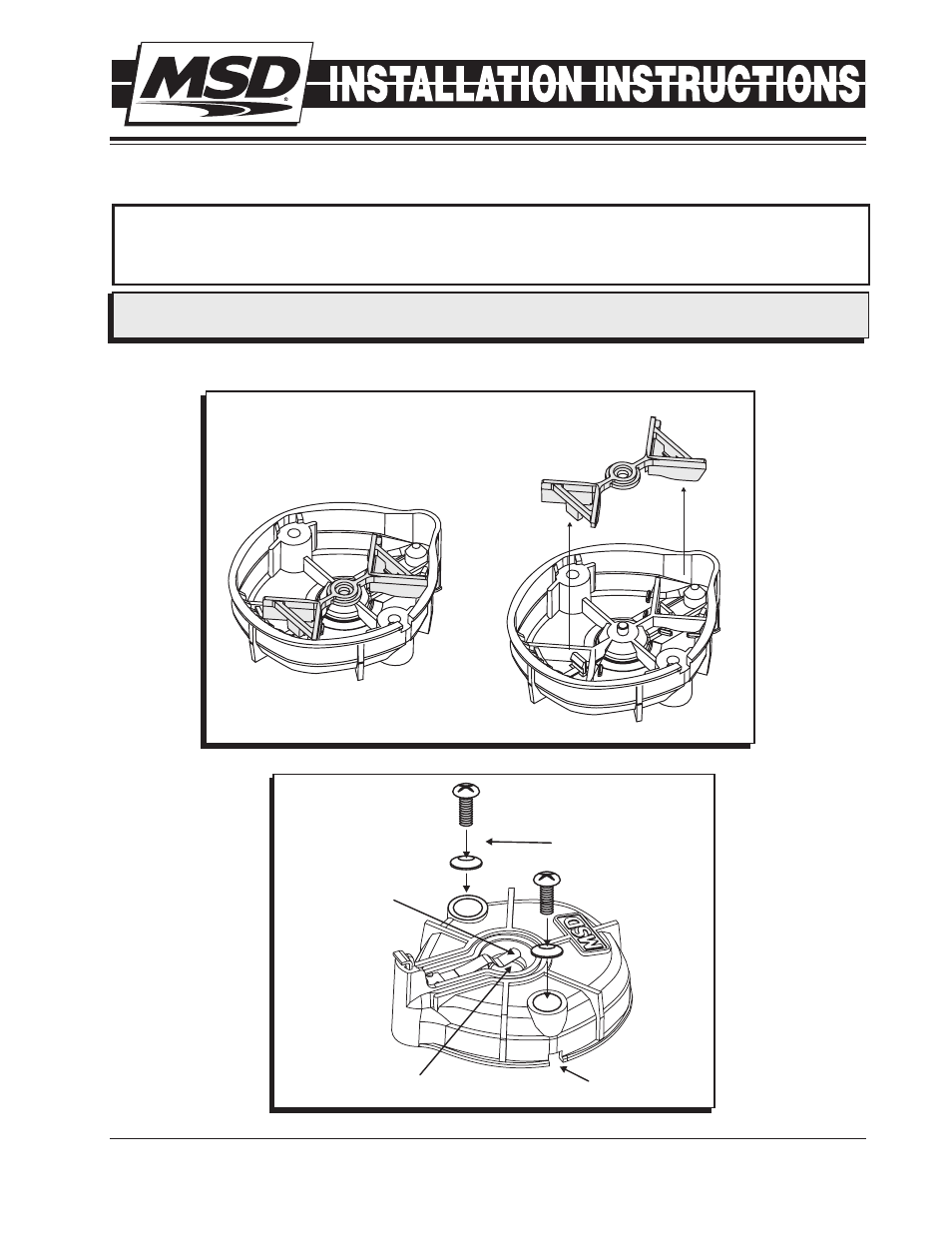

Figure 1 Removing the Rotor Adapter for Stock Applications.
Figure 2 Installing the Rotor.
REMOVE ADAPTER
LEAVE
INSTALLED
ADAPTER
ROTOR ADAPTER
MSD HEI DISTRIBUTOR
INSTALLATION
STOCK GM HEI
APPLY SPARK
GUARD HERE
(SEE PAGE 2)
ALIGNING SLOT
DOME MUST
FACE UP
ROTOR TANG
Parts Included:
1 - Rotor
M S D
• W W W . M S D P E R F O R M A N C E . C O M • ( 9 1 5 ) 8 5 7 - 5 2 0 0 • F A X ( 9 1 5 ) 8 5 7 - 3 3 4 4
ONLINE PRODUCT REGISTRATION: Register your MSD product online and you’ll be entered in our
monthly 8.5mm Super Conductor Spark Plug Wire give-away! Registering your product will help if there
is ever a warranty issue with your product and helps the MSD R&D team create new products that you
ask for! Go to www.msdperformance.com/registration.
2 - Screws
2 - Belleville Washers
