Adjustments – MSD 84211 Rotor Phasing Kit for MSD Distributors Installation User Manual

Page 2

INSERT SCREWDRIVER

AND ROTATE TO ADJUST

PHASING

INCREMENTS

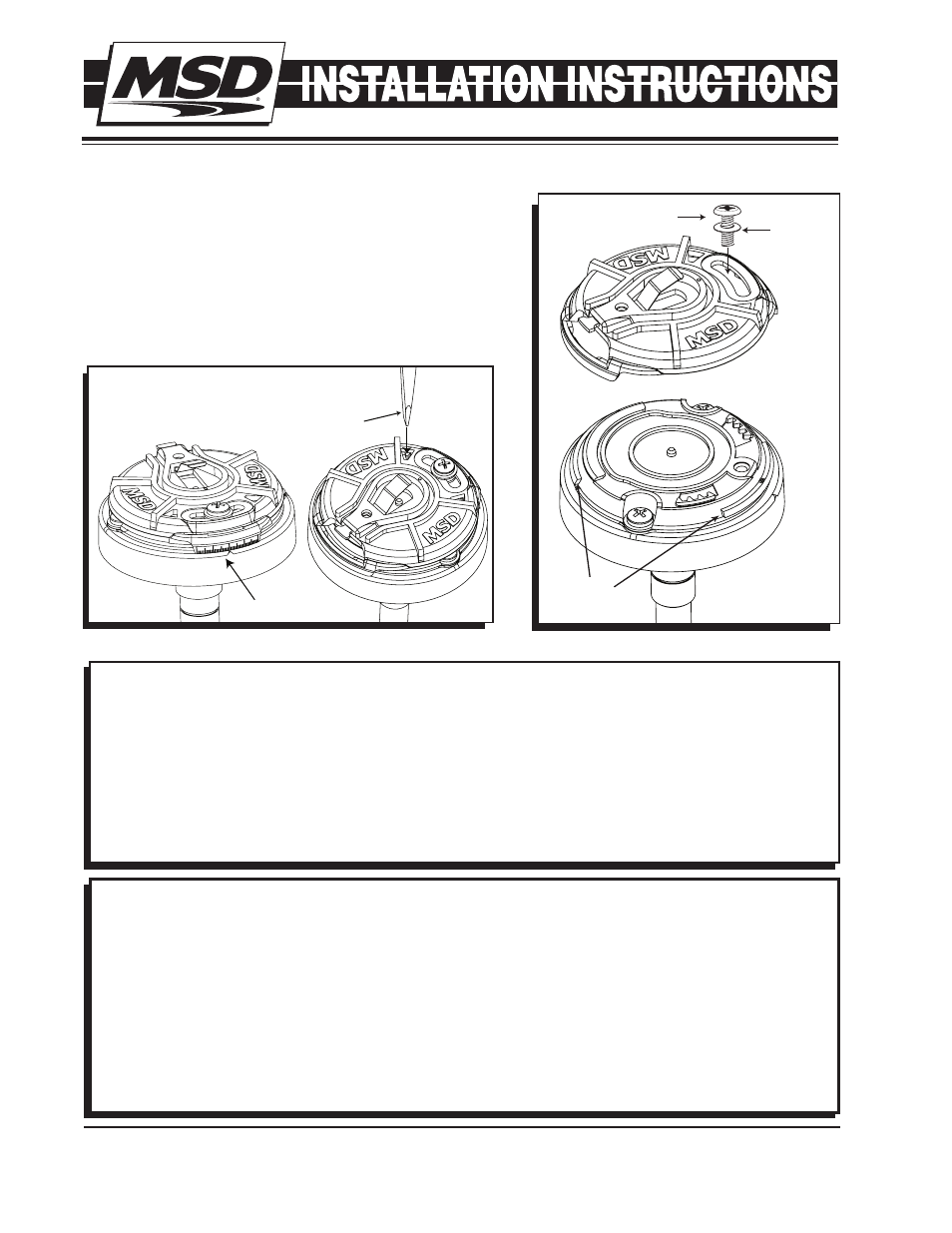

Figure 4 Adjusting the Rotor.

DOME MUST

FACE UP

5/16” SCREW

CLOCKING

TABS

POSITION ON

BASE AND

ROTATE INTO

POSITION

Figure 3 Top Rotor.

Install the top of the rotor by aligning the tabs and rotating the

top into position (Figure 3). Use the 5/16" screw with washer

to hold in position. It is recommended to position the rotor in

the middle position and adjust from this point.

ADJUSTMENTS

The PN 84211 Rotor provides 40° (+/- 20°) of adjustment.

Adjustments are easy by loosening the rotor screw and using

a flatblade screwdriver to clock to rotor top. See the supplied

tech brief for details on setting rotor phasing.
