MSD 8235 Inductive Blaster SC Coil Installation - Manual

MSD Blaster SC Coil
PN 8235
IMPORTANT: Read the instructions before attempting the installation.
Parts Included:
1 - Blaster SC Coil, PN 8235
1 - Parts Bag and Mounting Hardware
1 - MSD 90° Boot and Terminal
WARNING: During installation, disconnect the battery cables. When disconnecting the battery,
always remove the Negative cable first and install it last.
WARNING: The Blaster SC Coil and Coil Driver produce very high voltage and current. Use
caution during installation and while working near the Coil assembly.
The MSD Blaster SC Coil is designed to be used with the SC Coil Driver, PN 6305, and Pro-Billet
Honda Distributor, PN 8488. An MSD SCI, 6-Series and 7-Series Ignition Control may also be used.
The Blaster SC Coil cannot be used with factory ignition systems as a stand alone coil.
COIL LOCATION AND MOUNTING
1. Find a suitable mounting location for the Coil
and Driver assembly. It can be mounted in any
position as long as it is away from direct engine
heat sources. Also make sure that the Coil Driver
wiring harness reaches the distributor.
2. Ensure that there is enough room to clear the Coil
and the Coil Driver when they are assembled.
3. Use the Coil as a template and mark the mounting
holes. Figure 1 also provides a template to assist
in the mounting.
4. Use a 3/16" drill bit to make the mounting
holes.

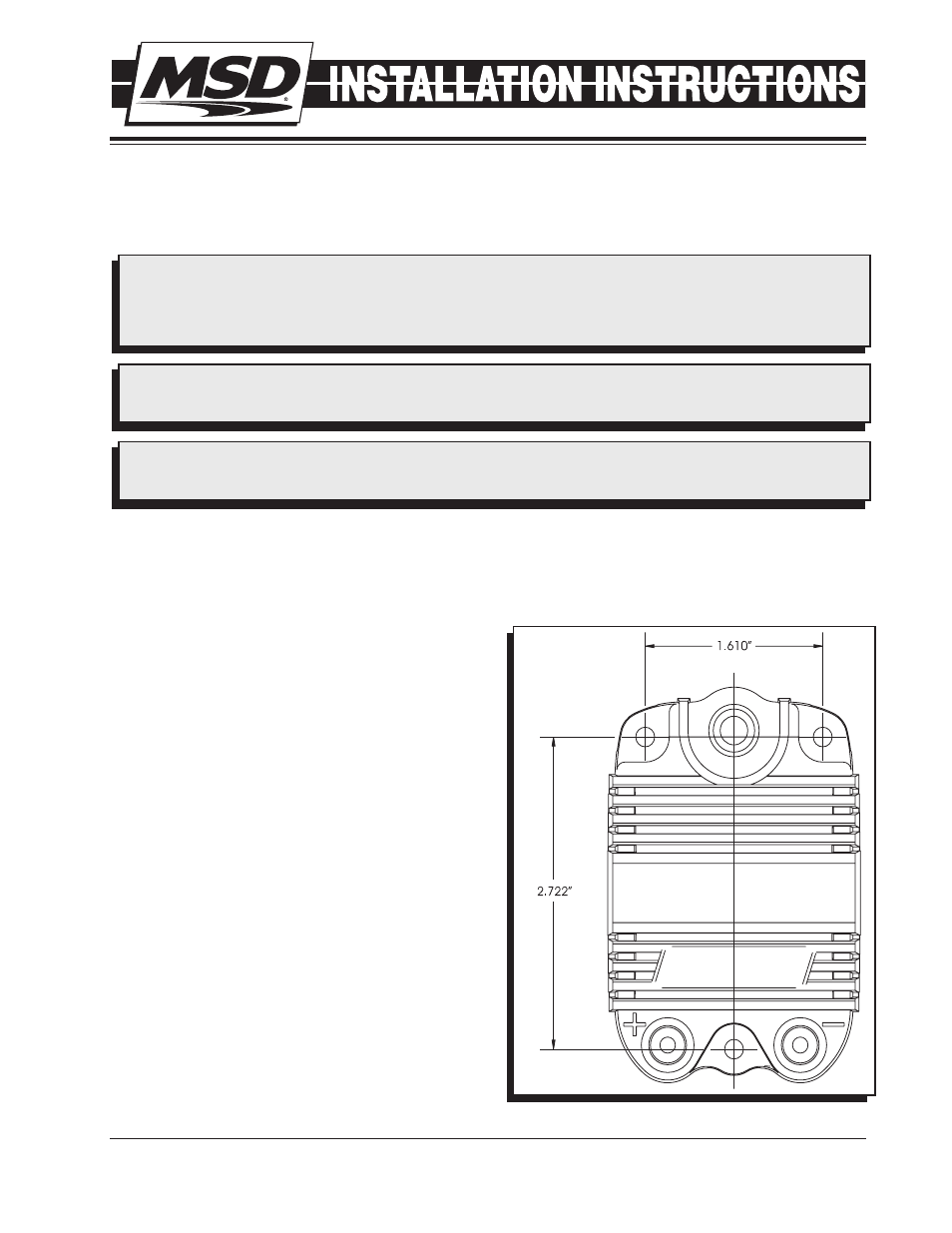

Figure 1 Coil Mounting Template.
Components Required:
1 - SC Coil Driver, PN 6305
1 - Pro-Billet Honda Distributor, PN 8488
