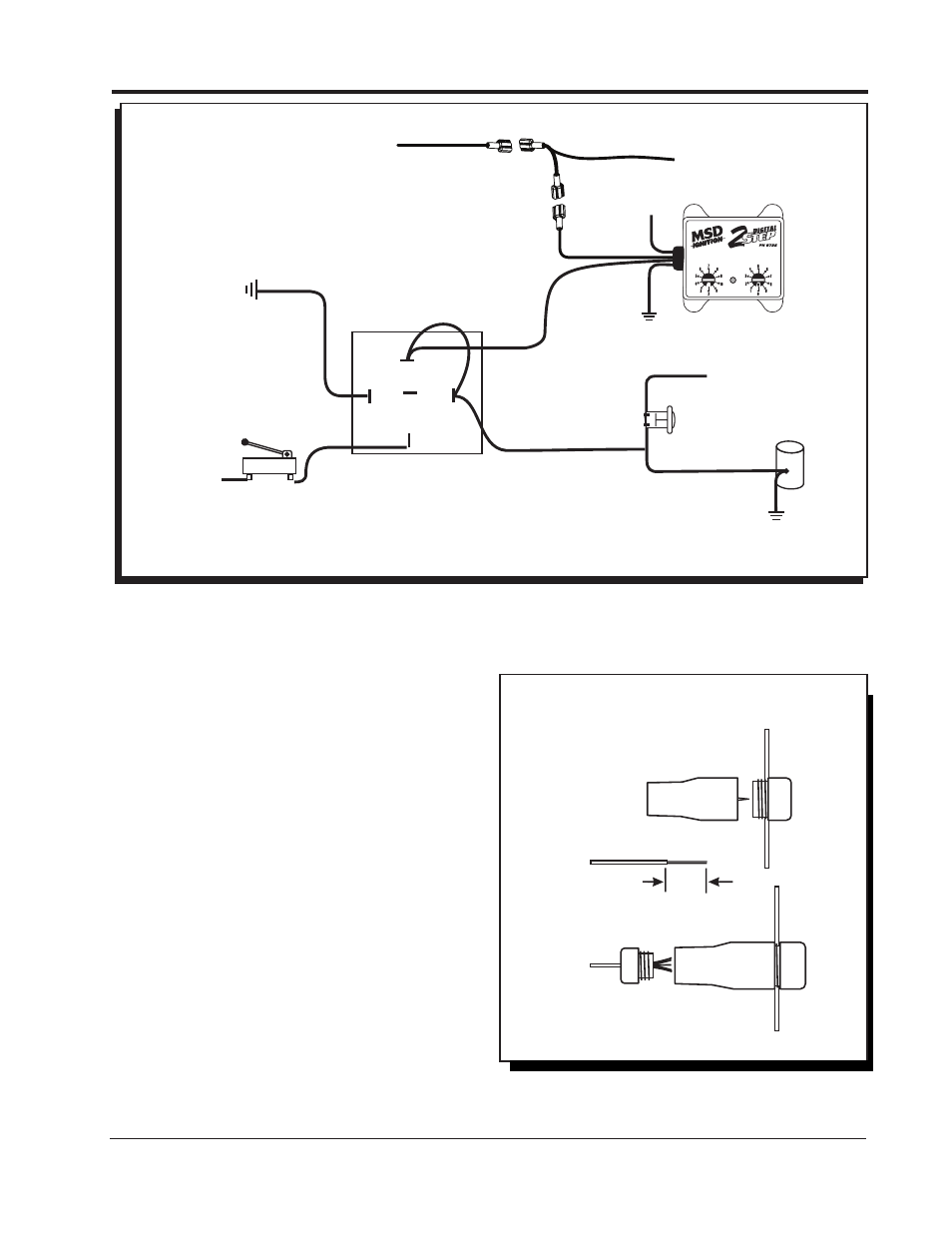

Figure 3 Wiring the Digital 2-Step to a Latching Relay.
BLACK
TO
GROUND
RELAY
PN 8961
BLUE
JUMPER
(+) 12V
CLUTCH
SWITCH
LINE LOCK
SOLENOID
TO 12 VOLTS
IF YOUR APPLICATION REQUIRES USING THE CLUTCH FOR EVERY SHIFT,
THIS DIAGRAM WILL PROVIDE A REV LIMIT ON THE LAUNCH ONLY AND
HOLD THE LINE LOCK ON UNTIL THE CLUTCH PEDAL IS RELEASED.
MOMENTARY
PUSH BUTTON
SWITCH
TO
GROUND
TO
GROUND
87A
87 NO
NC
C
86 85
30
TO
12 VOLTS
RED
TO MSD
DIGITAL 6AL
GRAY
GRAY
TACH
OUTPUT
X1000 X100
WIRE TAP INSTALLATION
1. Insert male end cup into wire to be spliced.
3. Hand tighten barrel into male end cup.
3. Strip wire approximately 3/8” (10mm).
4. Insert wire into male end exposing only bare
wire.
5. Hand tighten male end to barrel.
WIRE TO BE
SPLICED
MALE
END
MALE
END
CUP BARREL
3/8”
(10mm)
Figure 4 Wire Tap.
