ASSEMBLING THE COIL WIRE
Once the cap is installed and the coil is wired, you
will need to assemble a coil wire. You will need a
razor blade and a 4-inch vice.
The Mini-Stripper-Crimper is an all in one spark plug
wire stripper and crimp tool. It will work with both
MSD 8.5mm Super Conductor and 8mm Heli-Core
wires to produce a strong, professional crimp.
TERMINALS
MSD offers several different terminals with our
Universal wire sets. There are two terminal styles
used, either a standard style or the Dual Crimp
Terminal (Figure 4). The standard design requires
stripping more of the wire sleeve because the
conductor will be bent under the terminal. The Dual
Crimp has specific crimp tabs for the conductor
which require needle nose pliers.
STRIPPING THE WIRE
1. Once you’ve determined which terminals you are
working with, position the wire in the corresponding
strip guide. There are two holes; one for the 8mm
wire and another for the 8.5mm wire.
2. There are two stripping positions indicated on the
stripping slot, depending on the terminal being
used. Slide the wire to the correct position and
strip the sleeve by holding a razor blade flush with
the strip guide and rotate the wire 360° (Figure
5).
3. Remove the wire and twist the cut end of the sleeve
off in a counterclockwise direction.
Figure 5 Stripping the Sleeve.
DUAL CRIMP
TERMINAL
STANDARD
TERMINAL
CONDUCTOR
CRIMP TABS
WIRE SLEEVE
CRIMP TABS
STANDARD
DUAL CRIMP

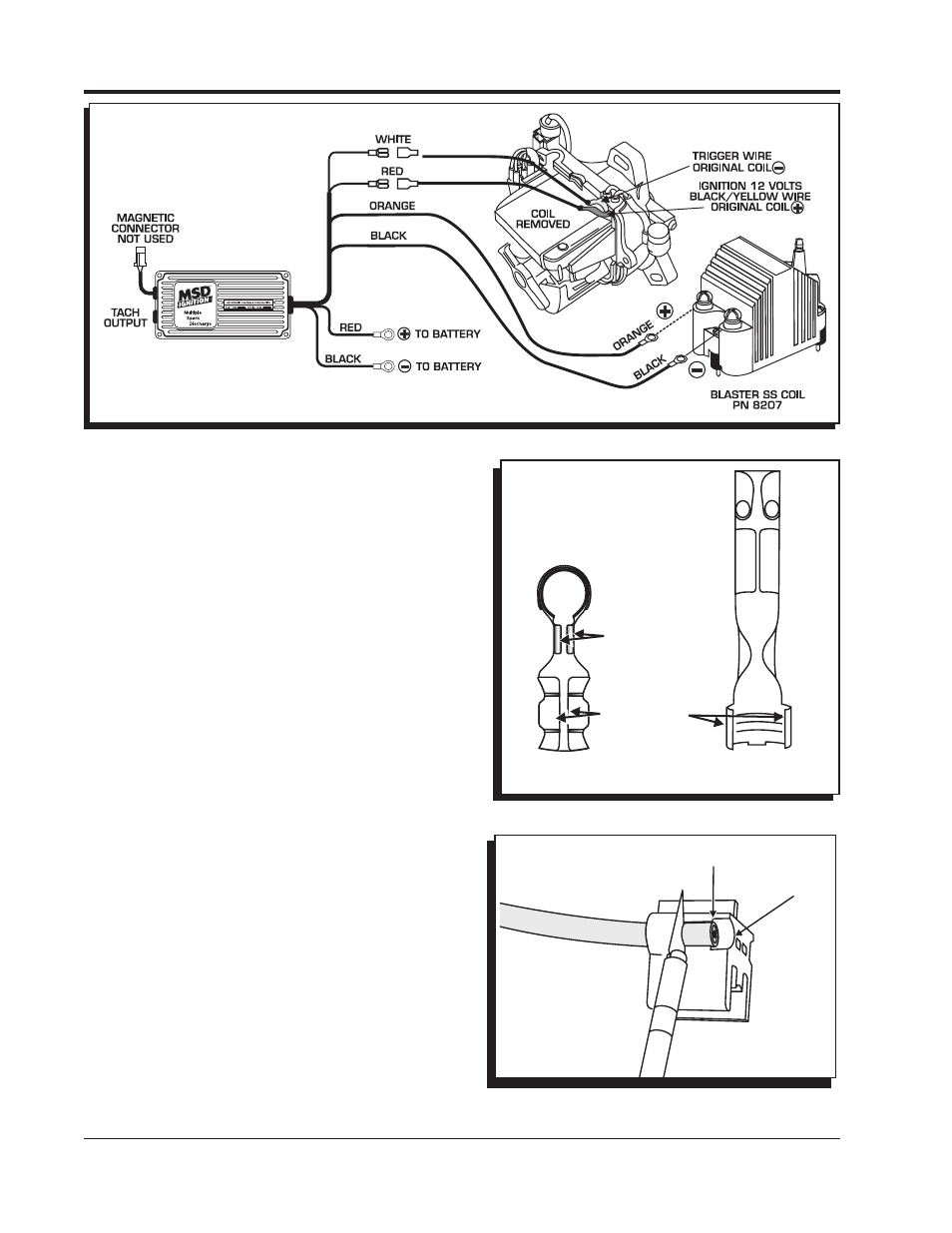

Figure 3 Wiring an MSD SCI Ignition with a Blaster SS Coil.
Figure 4 Identifying the Different Style Terminals.
