Parts Included:
1 - CAN-Bus Hub
1 - Mounting Hardware Parts Bag
MSD 4-Connector CAN-Bus Hub
PN 7740
ONLINE PRODUCT REGISTRATION: Register your MSD product online and you’ll be entered in our
monthly 8.5mm Super Conductor Spark Plug Wire give-away! Registering your product will help if there
is ever a warranty issue with your product and helps the MSD R&D team create new products that you
ask for! Go to www.msdperformance.com/registration.

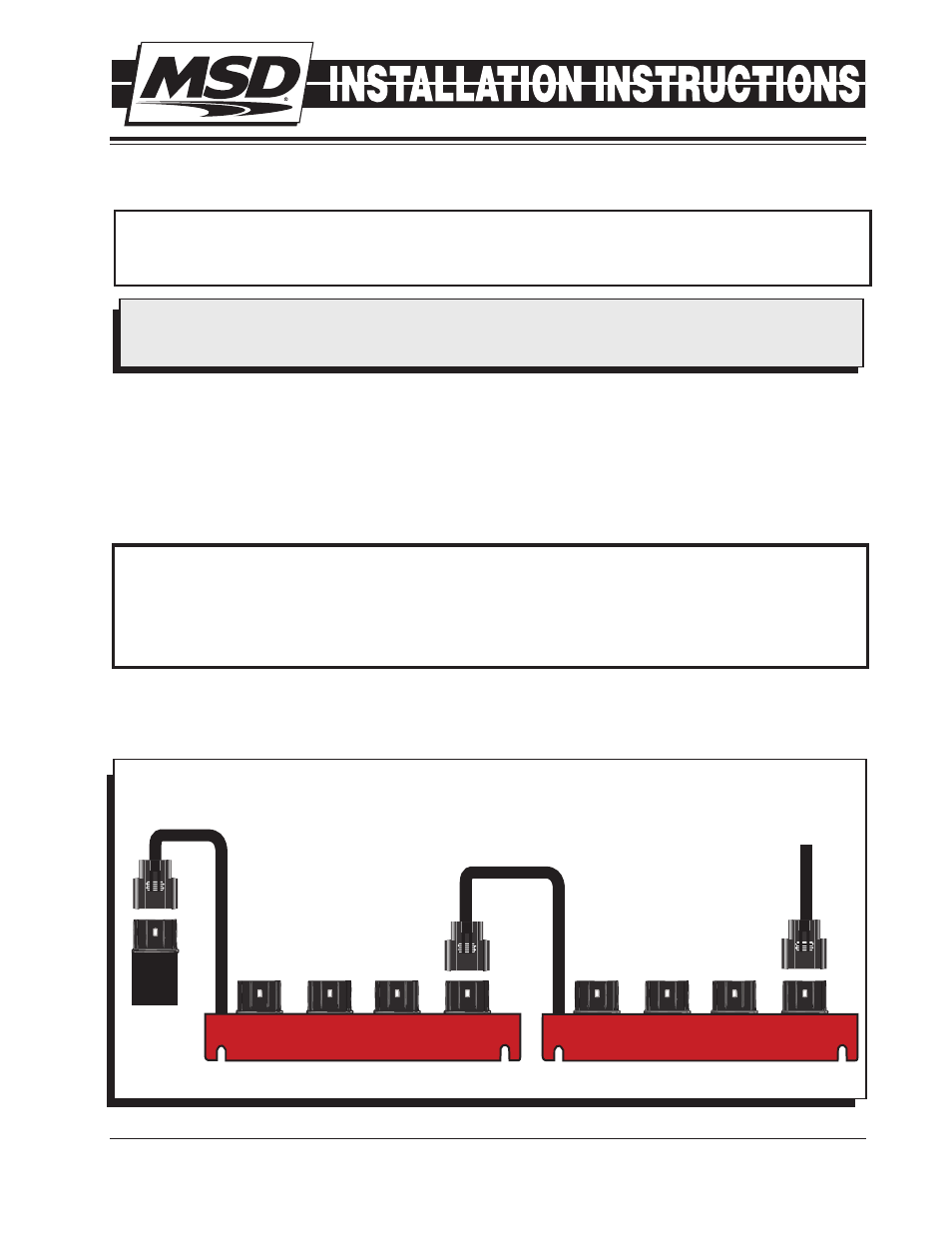

CAN-Bus HUB, PN 7740
CAN-Bus
RESISTOR
REQUIRED
CAN-Bus HUB, PN 7740
TO MSD
CONTROLLER,
PN 7730
Figure 1 Wiring
The 4-Connector CAN-Bus Hub is intended for use with MSD Ignition CAN systems only. For a CAN
system to work it must have definite ends. MSD Power Grid System Controller that will attach to the CAN
system includes one end for the network incorporated internally. The controllers also come with a CAN-Bus
Terminator, PN 7741, which will act as the second end to the system. Without the CAN-Bus Terminator in
place at the end of the CAN-Bus system, signals could be distorted. These distorted signals could result
in permanent or intermittent problems that include but are not limited to; improper timing, false signals,
and repetitious signals. Always be sure to have the MSD Controller and the CAN-Bus Terminator at the
ends of the MSD CAN-Bus.
When the System Controller is attached to the CAN Hub, it should be placed opposite of the
pigtail. Modules will go in the following open connections. The CAN-Bus Terminator must be
attached to the pig-tail end. If multiple CAN Hubs are needed, the prior hub(s) should be attached
to the first connector of the subsequent hub. Doing so (as shown in Figure 1) will create a single
channel for the CAN system with modules as branches.
Always be sure to supply a solid mount for the CAN Hub. The mounting system includes removable ends
for the Hub that slide to allow the terminals to be turned in 90° increments. Never cut the CAN-Bus harness.
If any of the CAN-Bus harnesses are not long enough for a desired mounting location MSD suggests the
use of extensions (2’, PN 7782; 4’, PN 7784; 6’, PN 7786).
