INSTALLATION INSTRUCTIONS 3
M S D I G N I T I O N
• W W W . M S D I G N I T I O N . C O M • ( 9 1 5 ) 8 5 7 - 5 2 0 0 • FA X ( 9 1 5 ) 8 5 7 - 3 3 4 4

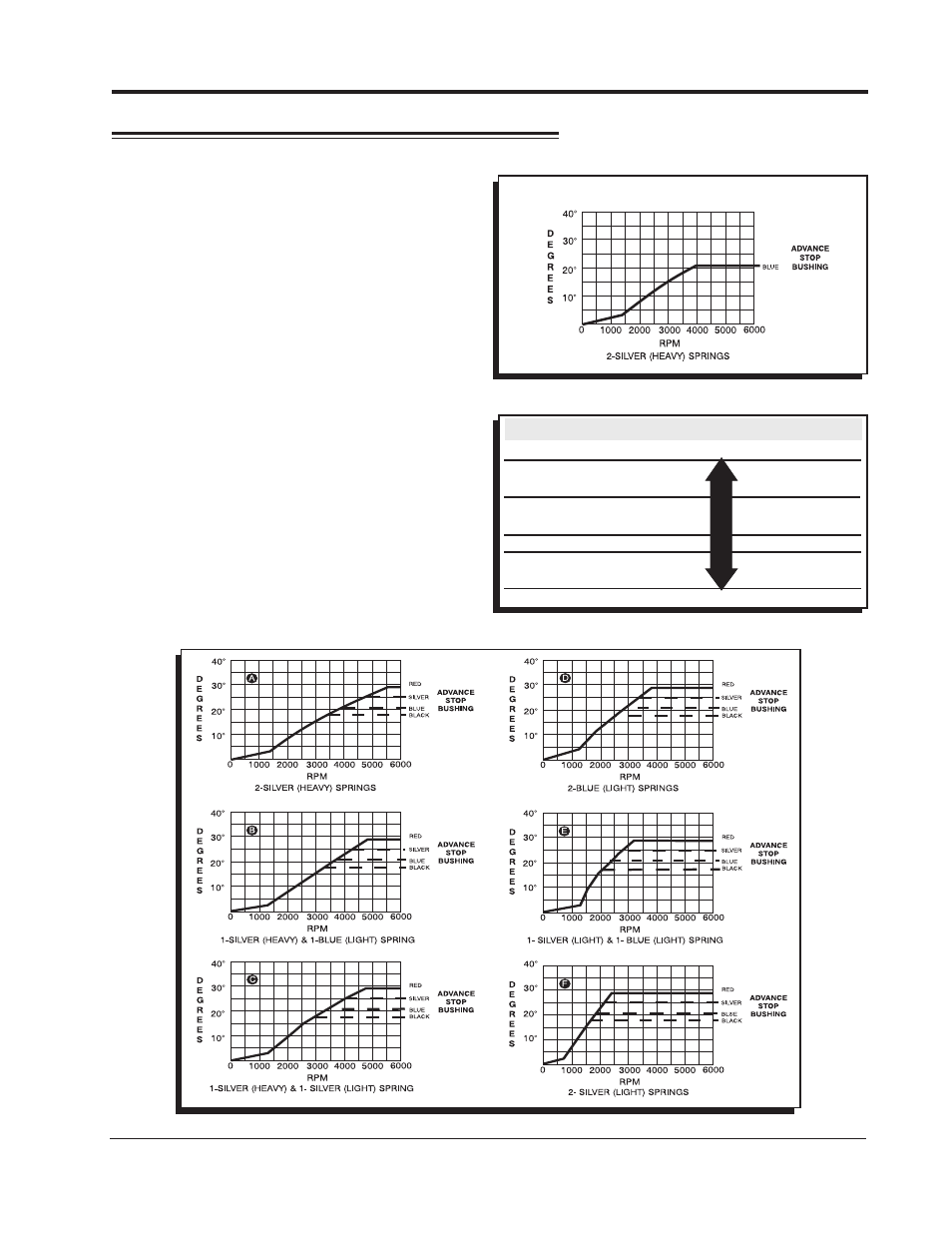

Figure 2 The Factory Equipped Curve.
Timing Curve From Factory
Figure 3 Spring Combination Chart.
SPRING COMBINATION RATE OF ADVANCE FIGURE 4
2- Heavy Silver SLOWEST A
1- Heavy Silver B
1- Light Blue
1-Heavy Silver
C
1-Light Silver
2- Light Blue
D
1- Light Silver E
1- Light Blue
2- Light Silver
FASTEST F
CENTRIFUGAL ADVANCE CURVE
SELECTING THE ADVANCE SPRINGS
The rate, or how quick the advance comes in
is determined by the type of springs which are
installed on the distributor. The MSD distributors
are equipped with two Heavy Silver springs
installed. These will give you the slowest
advance curve possible (Figure 2). The parts
kit contains two additional sets of springs which
can be used to match the advance curve to
your particular application. Refer to the Spring
Combination Chart (Figure 3) for combinations
that can be achieved.
To change the springs, remove the cap and
rotor and use needlenose pliers to remove the
springs. Be sure the new springs seat in the
groove on the pin.
Figure 4 Advance Curves.
