MSD 8239 Mitsubishi Dodge Coil, 1996-on Installation - Manual

IMPORTANT: Read instructions before attempting the installation.
Parts Included:
1 - Blaster Mitsubishi Coil
WARNING: During installation, disconnect the battery cables. When disconnecting the battery,
always remove the Negative cable first and install it last.
The MSD Blaster Mitsubishi Coil is designed as a replacement coil and produces a high voltage
spark. To get even more ignition performance, install an MSD DIS-2 Ignition Control, PN 6211.
MSD offers two 4-tower coils that are performance replacements for a variety of years and vehicles
including Mitsubishis, Neons and others. The only difference between the two coils is the connec-
tor and you need to ensure that you have the correct coil for your application. Figure 1 shows the
difference between the two.
Note: If you require the coil with round terminals but have the flat blade coil, an Adapter can be
ordered from Mopar Dealers as PN M04897087AA.
1. Disconnect the stock coil connector and note the position of the plug wires before removing the
wires.
2. Remove the four mounting bolts and remove coil.
3. Install the new MSD Mitsubishi Coil and retaining screws.
4. Plug in the wiring harness and connect the coil wires.
WARNING: High Voltage is present on the coil terminals. DO NOT touch the coil terminals or
tower when the engine is cranking or running.
ROUND
TERMINAL PINS
FLAT
TERMINAL PINS
PN 8239 PN 8229

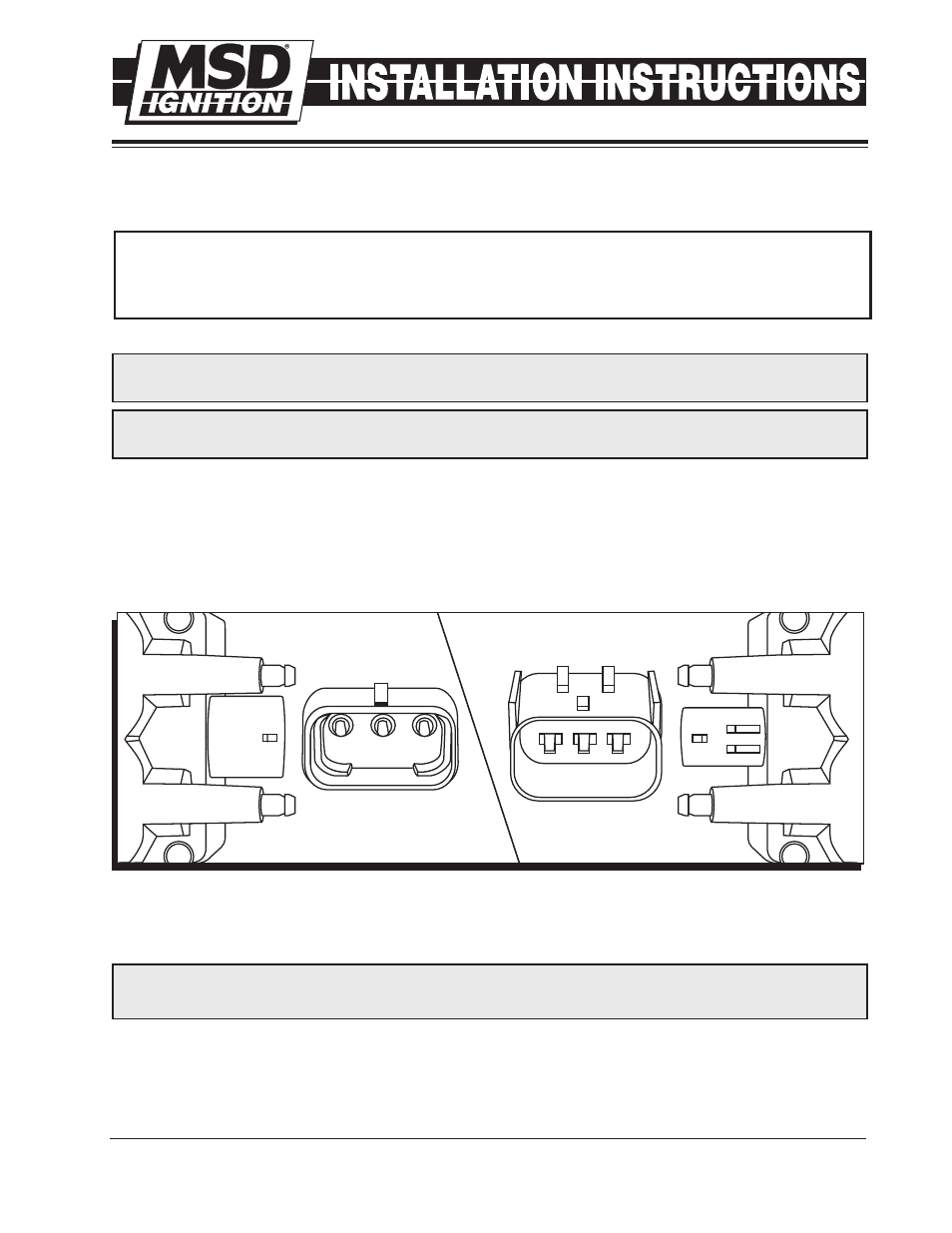

Figure 1 The difference between the PN 8229 and 8239.
