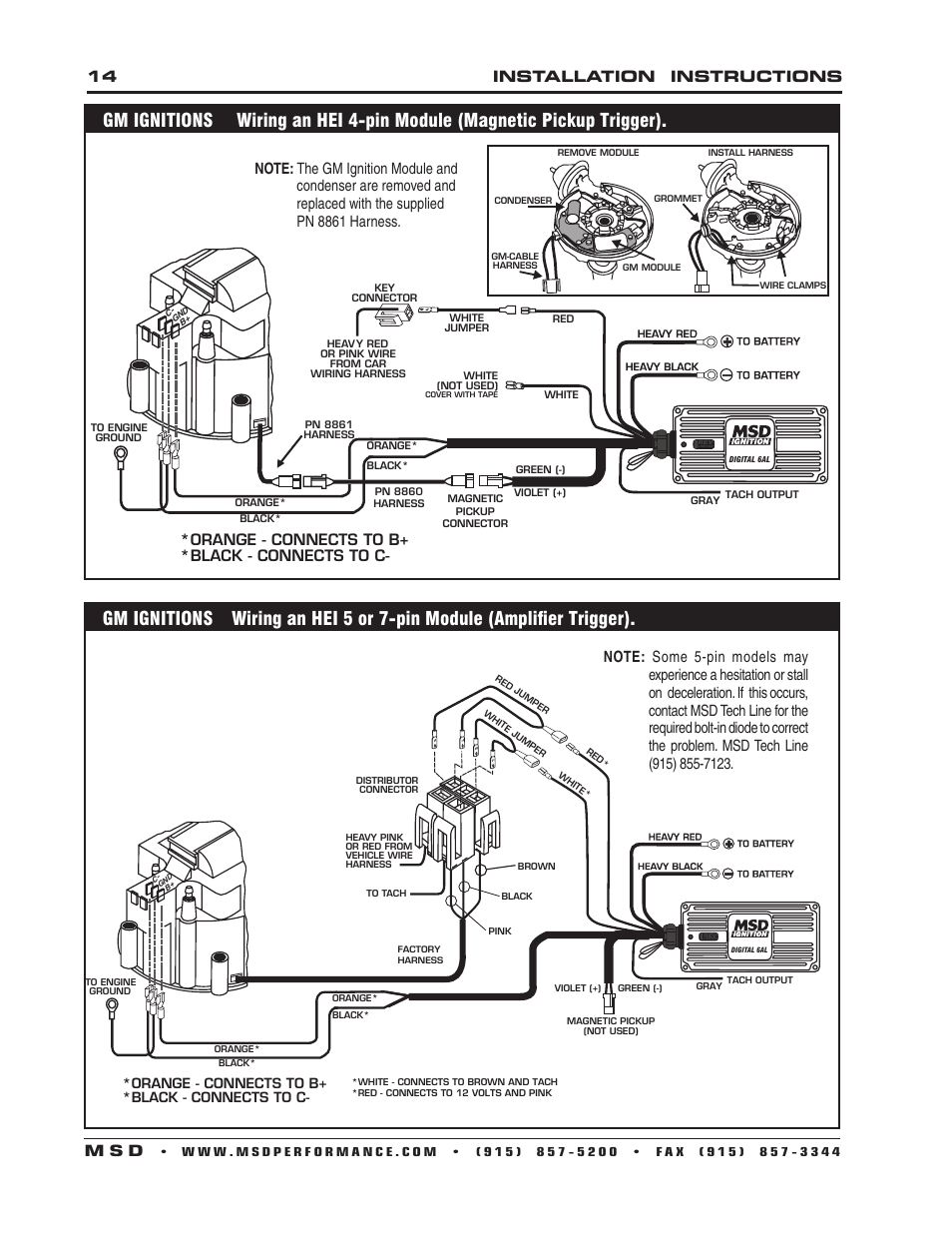

14 installation instructions m s d, Orange - connects to b+ *black - connects to c – MSD 6201 Digital 6A Ignition Control User Manual
Page 14
