INSTALLATION INSTRUCTIONS

7

M S D I G N I T I O N

• W W W . M S D I G N I T I O N . C O M • ( 9 1 5 ) 8 5 7 - 5 2 0 0 • FA X ( 9 1 5 ) 8 5 7 - 3 3 4 4

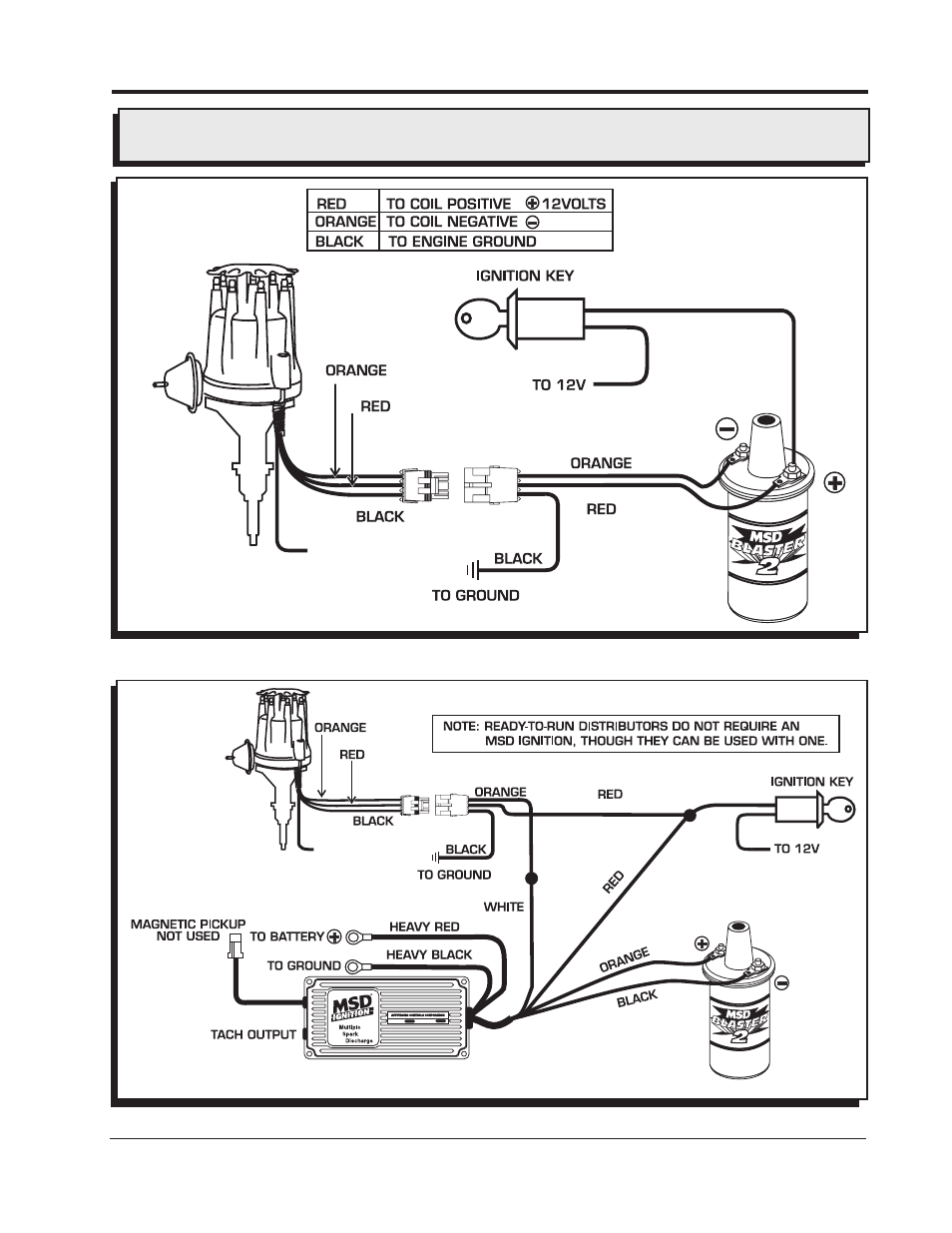

Figure 13 Wiring the Ready-to-Run Distributor.

Figure 14 Wiring to an MSD Ignition Control.

WARNING: High voltage is present on the coil terminals. Do not touch the terminals or coil tower

when the engine is cranking or running.

GRAY TO

TACH INPUT

GRAY TO

TACH INPUT
