1. Remove the existing distributor cap without
disconnecting any of the spark plug wires.
2. With the cap off, crank the engine until the
rotor is aimed at a fixed point on the engine or
firewall. Note this position by making a mark
(Figure 9).
3. Place the distributor cap back on and note
which plug wire the rotor is pointing to. MARK
THE SPARK PLUG WIRES and remove the
distributor cap.
4. Disconnect the wiring from the distributor.
5. Loosen the distributor hold down clamp and
slide the clamp out of the way.
6. Lift the distributor out of the engine. Note that
the rotor rotates as you lift the distributor out.
This is due to the helical cut gear and should
be taken into consideration when installing the
new distributor.
7. Install the gasket and apply a liberal amount of
the supplied lubricant to the distributor gear.
(The supplied O-rings can only be used if
the Chevrolet block has been modified as
shown in Figure 10.)
8. Install the distributor making sure that the
rotor comes to rest pointing at the fixed mark.
If the distributor will not fully seat with the rotor
pointing to the marked position, you may need
to rotate the oil pump shaft until the rotor lines
up and the distributor fully seats.
9. Position and tighten the hold down clamp onto
the distributor.
10. Install the distributor cap and spark plug wires
one at a time to ensure correct location. A
wire retainer is supplied to secure the wires
in place. Align the mounting bosses and use
the supplied 1.5" self-tapping Phillips screws
to hold the retainer in place.

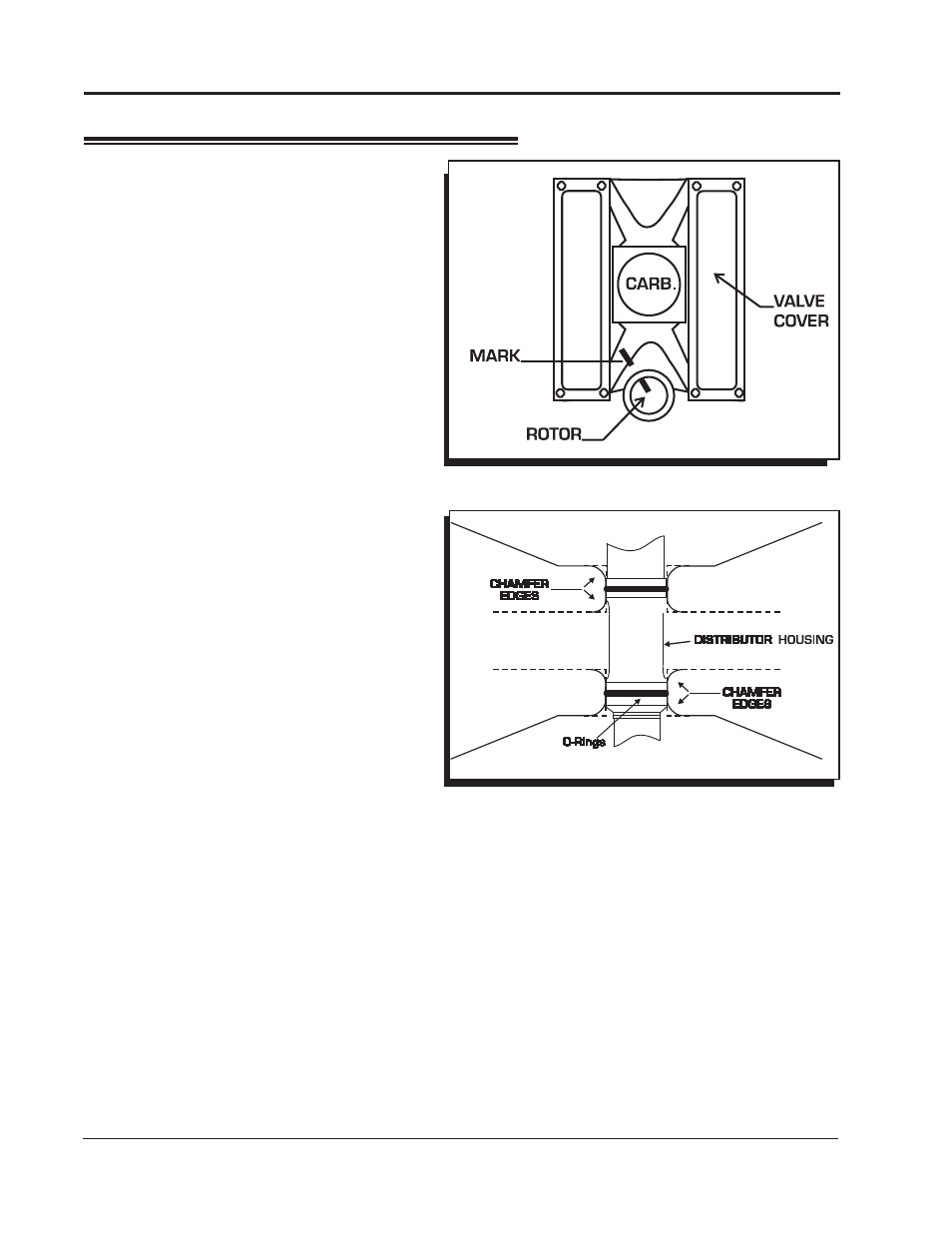

Figure 9 Marking the Rotor Location.
INSTALLING THE DISTRIBUTOR
Figure 10 Modified Chevy Block for use with O-Rings.
