FOR SERVICE SEND TO:
AUTO METER PRODUCTS, INC.
413 W. Elm St., Sycamore, IL 60178 USA (815) 899-0801
Email us at [email protected]
2650-1077 9/20/04
© 2004 Auto Meter Products, Inc.
SERVICE
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. Please specify when you need
the product back. If you are sending product back for Warranty adjustment, you must include a copy (or original) of your sales receipt from the place of purchase.
12 MONTH LIMITED WARRANTY
The manufacturer warrants to the consumer that this product will be free from defects in materials and workmanship for a period of twelve (12) months from the date of the original purchase. Products that fail
within this 12 month warranty period will be repaired or replaced at the manufacturer's option to the consumer, when determined by the manufacturer that the product failed because of defects in material or
workmanship. This warranty is limited to the repair or replacement of parts in the instrument and the necessary labor done by the manufacturer to affect the repair or replacement of the instrument. In no
event shall this warranty exceed the original purchase price of the instrument, nor shall the manufacturer be responsible for special, incidental or consequential damages or costs incurred due to failure of this
product. Warranty claims to the manufacturer must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies only to the original purchaser of product and is non-
transferable. All implied warranties shall be limited in duration to the said 12 month warranty period. Breaking the meter seal, improper use or installation, accident, water damage, abuse, unauthorized
repairs or alterations voids this warranty. The manufacturer disclaims any liability for consequential damages due to breach of any written or implied warranty on all products made by the manufacturer.
Dial light: For wedge
base bulb replacement,
order Auto Meter 3219
or GE 86 bulb. Turn
socket 1/8 turn counter-
clockwise to remove.
1.
Turn on the power to the tach by turning the key on
(Do Not start the engine). Set the desired RPM by
turning the adjust knob on the tach; the pointer will
move. Stop when it reaches the desired shift point.
2. Turn the power off. The tach will now use the
selected shift point, until set differently.
3.
During normal tachometer operation,the shift light
will come on when the tachometer reaches your set
point. It will stay on until the engine speed drops
below the set point.
Shift-Set: To dial-in your
desired shift-point turn the
Shift-Set knob with power
on. (See above for
complete details.)
Shift-Lite: For shift-Lite bulb replacement, remove three
screws on light. The bulb, located in the rear section, is
easily removed by pushing and rotating it counter-
clockwise. Replace with #1076 automotive bulb.
TM
Note: The shift point setting can be checked
anytime the vehicle is started. Turn the
ignition on and the shift point setting will
show on the dial.

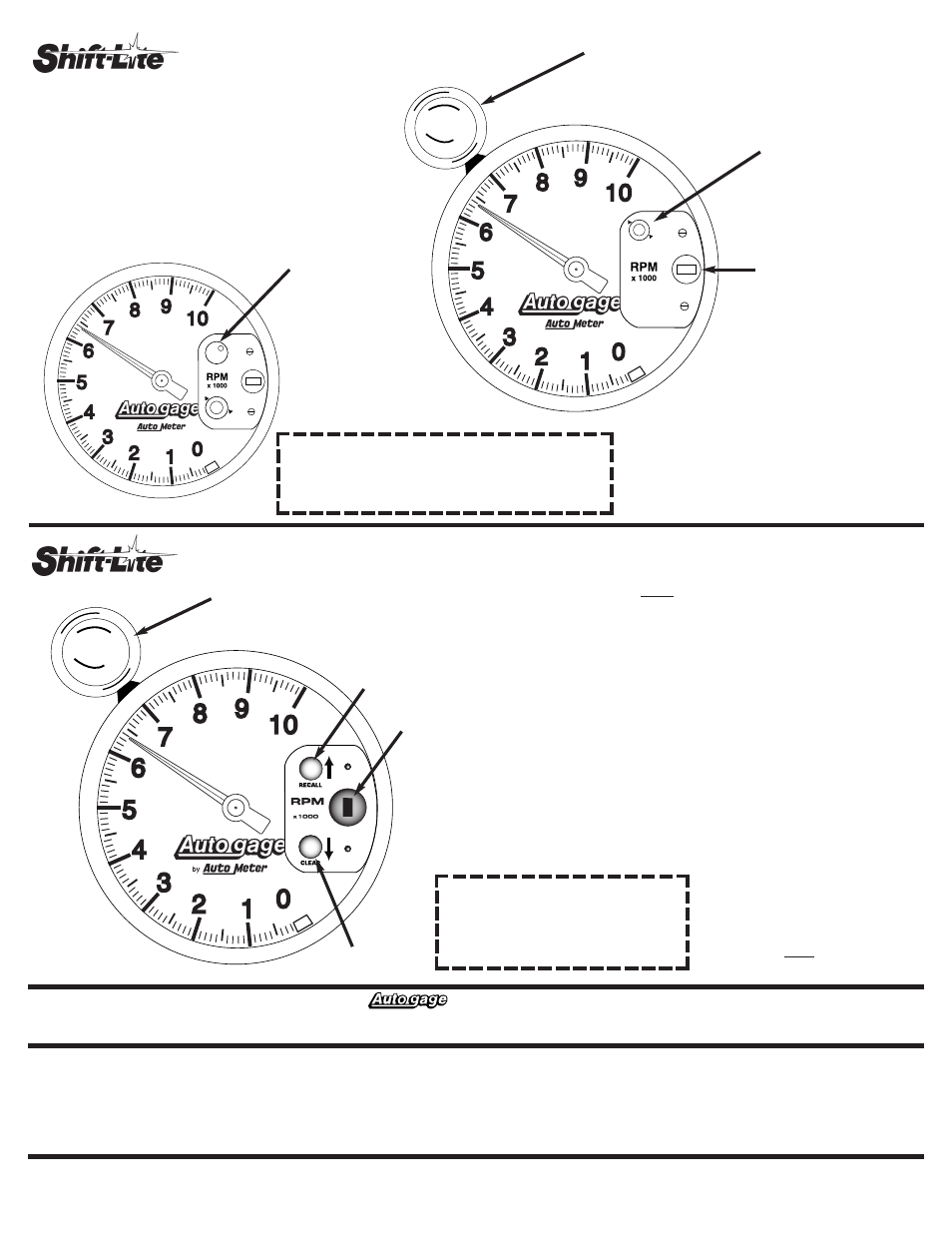

Model 233904 Shown Here
Model 233903
233903 Shift-Lite:
The Shift-Lite on
model 233903 is
located on the
dial face.
Operation (for models with Shift-Lite)
TM
Operation (for models with Memory)
Dial light: For wedge
base bulb replacement,
order Auto Meter 3219
or GE 86 bulb. Turn
socket 1/8 turn counter-
clockwise to remove.
Shift-Lite: For shift-Lite bulb replacement, remove three
screws on light. The bulb, located in the rear section, is
easily removed by pushing and rotating it counter-
clockwise. Replace with #1076 automotive bulb.
Model 233906
Shown Here
Erase Memory
Recall RPM
1.
Press both buttons at the same time while in the Normal
Operation mode to initiate the Shift Light Set mode.
2.
The Shift Light Set mode may be identified by the shift light
flashing on briefly twice per second. The pointer will display
the current shift light set point.
3. Press and hold the top button to scan upwards (clockwise).
Press and hold the
bottom button to scan downward
(counter-clockwise).
4.
A brief tap on either button will cause the pointer to move
slightly in the appropriate direction for fine tuning the shift
point. The gauge will return to Normal Operation by simply
not touching either switch for 5 seconds.
Note: When power is first applied to the
tach, the Shift-Lite will light briefly
to self-test the bulb and show the
shift point. The shift point setting
can be checked at any time there
is power to the gauge. Press both
buttons briefly and the shift point
will display for 5 seconds.
WARNING
Check with engine builder for maximum
recommended safe shift point before setting
shift point on tachometer. Failure to do this
could lead to over-revving of engine, causing
serious damage to engine and car.
Normal / Memory Operation
• Press and hold the
top button to display the stored peak RPM.
• Release the button to return to normal operations.
• Press and hold the
bottom button for a minimum of 1 second
to clear the current peak memory.
• (On model 233906) Press both buttons at the same time to
initiate the
SHIFT LIGHT SET mode. (See back for details)
WARNING
Check with engine builder for maximum recommended safe
shift point before setting shift point on tachometer. Failure to
do this could lead to over-revving of engine, causing serious
damage to engine and car.
