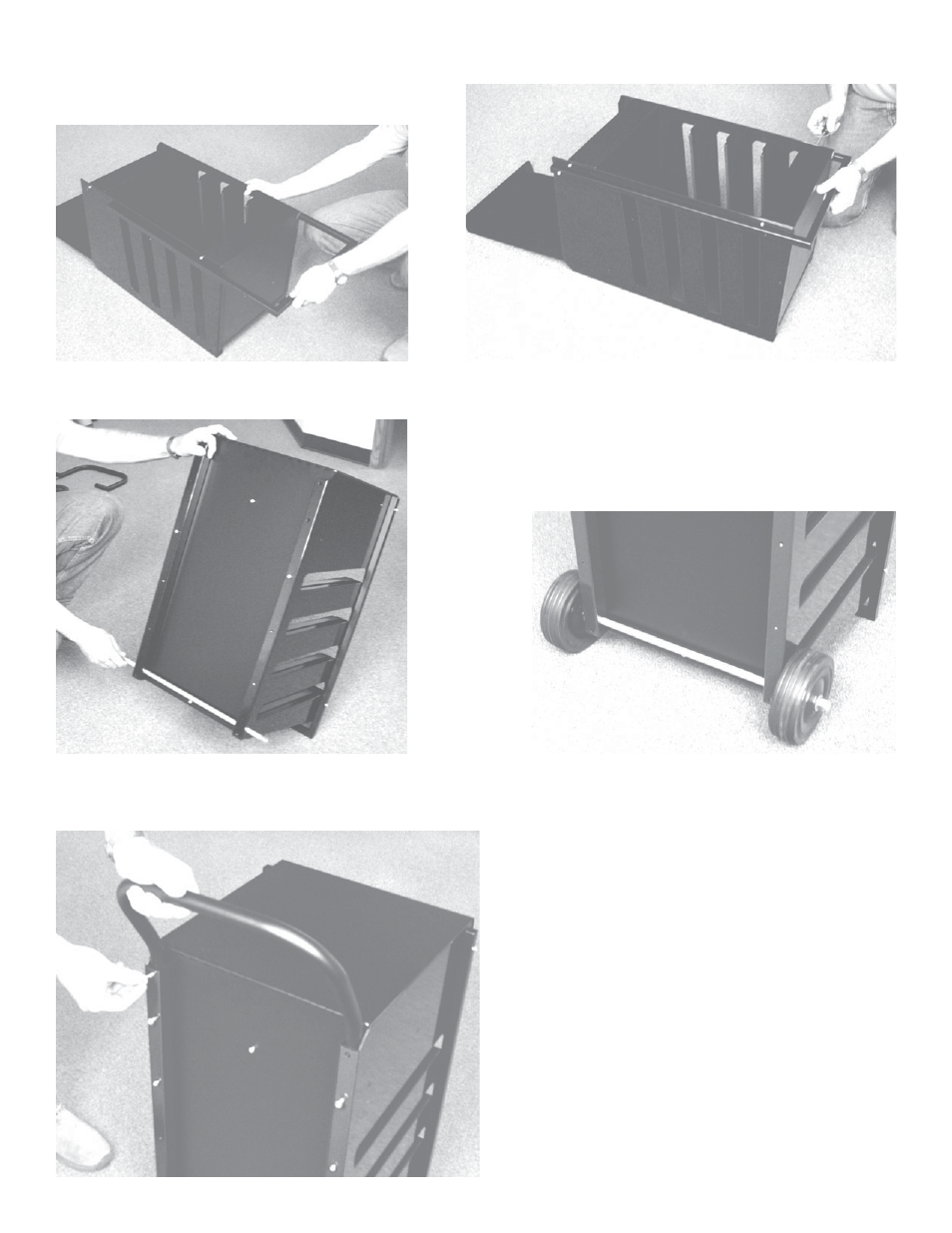

7) Lay the cart on its back and slide the front
support (“U” shaped frame) onto the cart just
behind the tray screws.
8) Line up mounting holes and start screws.
9) Slide axle thru holes at bottom back.
10) Put a thin layer of grease on the axle where
each wheel will go. On each side place 1 washer,
then the wheel, 1 more washer, and a self-locking
nut. Tighten the nuts just to where the wheel won’t
turn, then back off until the wheel turns freely.
11) Install the handle as shown, align the
holes, and install the bolts.
You are now done with assembly. Tighten all
screws that were just started during assembly.
DON’T OVERTIGHTEN. All screws are self-
locking and don’t need to be overly tight.
Put your scale pads in the cart and wheel it
around your shop. If the wheels seem to drag
loosen one of the axle nuts slightly.
You can put your scale control box in the
upper compartment. The lid will not pinch the
cables if closed with the cables out. OR you
can put the control box carrying case on top
of the cart and store other tools in the upper
compartment.
Scale pad ‘slots’ are slanted so that the pads
will not fall out during transportation.
