Ver. 4) – Longacre 78295 Digital Caster_Camber Gauge with AccuLevel (version 4) and QuickSet Adapter User Manual
Page 2
(ver. 4)
Monroe, Wa. 360 453 2030 www.longacreracing.com
7/07 Ver 4

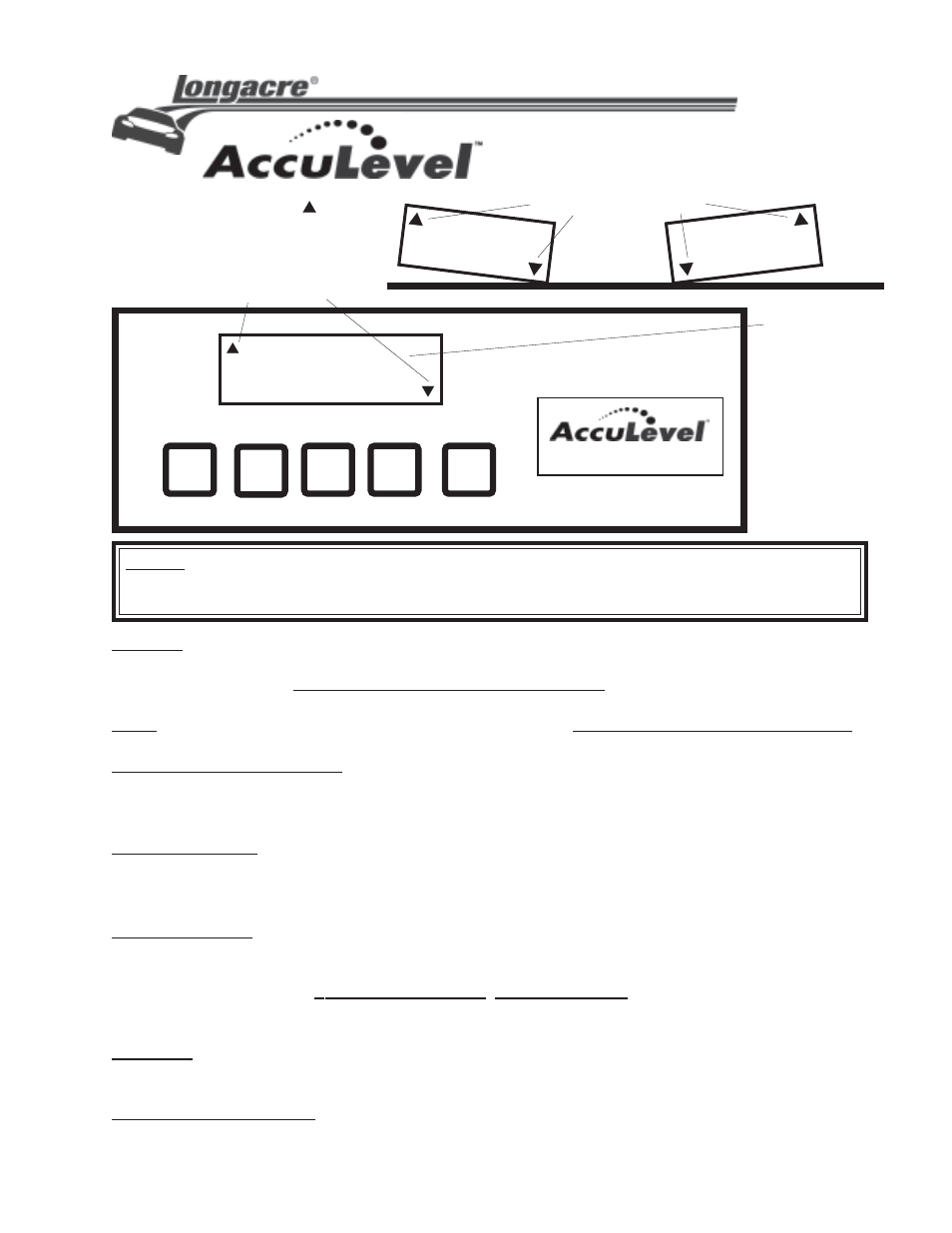

Digital Level Measurement
from 0.0
O
to 90.0
O
Pointers on display - -
show direction of tilt.
(If
AccuLevel
™
is used for measuring
very small angles - under 2
O
- this feature
will tell you which way the tilt is)
LEVEL
Note direction of pointers
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
H
H
H
H
H
will ONLY
be on if the unit
is holding a
reading or in
calibration
ON/OFF
HOLD
1.8
1.8
1.8
1.8
1.8
H
H
H
H
H
NOTE: This Ver. 4
AccuLevel™
has 2 modes of operation. 1) In Normal angle measurement
mode the display is steady. 2) In Caster Mode the display flashes (and will not measure absolute
angles). Push
CASTER
button to exit Caster mode and go back to Normal angle measurement.
Turn on: Push
ON/OFF
.
AccuLevel™
shuts off automatically after 15 minutes to save battery life.
Batteries should last a year or more in normal use. See back side for battery door. Replace with 2)
AAA alkaline batteries. Recalibrate when you change batteries.
Zero:
AccuLevel™
maintains its zero when shut off and DOES NOT REQUIRE ZEROING.
Compare one angle to another: The
ZERO
button is ONLY used to compare one angle to another. Place
AccuLevel™
on a surface and push
ZERO
. The display will go to 00.0
00.0
00.0
00.0
00.0
. Move to a different
surface to compare the difference. Push
ZERO
again to return to normal use.
To hold a reading: Push
HOLD
and release. The display will show
H
H
H
H
H
and flash. When
H
H
H
H
H
stops
flashing (approx. 5 sec.) the reading is held on the display. Push
HOLD
again to go back to active
reading. NOTE:
AccuLevel™
MUST be held absolutely steady during this 5 seconds.
To CALIBRATE: Place
AccuLevel™
on a reasonably level surface (does not need to be per-
fectly level). Turn on, then push
ON/OFF
again and hold for 5 seconds until unit shuts off. Turn unit on
again and
-
-
-
-
-
1
1
1
1
1
-
-
-
-
-
will appear on the display. Now push
ZERO
.
-
-
-
-
-
1
1
1
1
1
-
-
-
-
-
H
H
H
H
H
will begin to flash and in a few
seconds
-
-
-
-
-
2
2
2
2
2
-
-
-
-
-
will appear.
Turn unit around 180
O
in the same spot and push
ZERO
again.
-
-
-
-
-
2
2
2
2
2
-
-
-
-
-
H
H
H
H
H
will begin to flash and in a few seconds normal readings will reappear. Calibration is now complete.
CASTER
(CASTER)
:
AccuLevel™
will display front suspension Caster when used in a specially
designed Caster/Camber gauge (see Longacre catalog or website). See gauge instructions for details.
DISPLAY BACKLIGHT
(LIGHT)
:
AccuLevel™
Ver. 4 has a display back light.
Do not drop the unit. Keep it clean and dry and avoid strong electrical or magnetic fields. Do
not push 2 buttons at once. If it will not be used for several months remove batteries.
NOTE:
AccuLevel™
is very sensative to small
angle changes. Some
functions described below
will not activate unless the
unit is held very steady.
LIGHT
ZERO
DIGITAL LEVEL
CASTER
