Front Lift
1) Place jack under center of ATV front end and lift until front wheels clear the ground. Be careful to
support ATV properly so that it is securely supported but so that A-arms and shocks can droop to full
extension.
2) Remove front wheels and lower portion of shock from the A-arm.

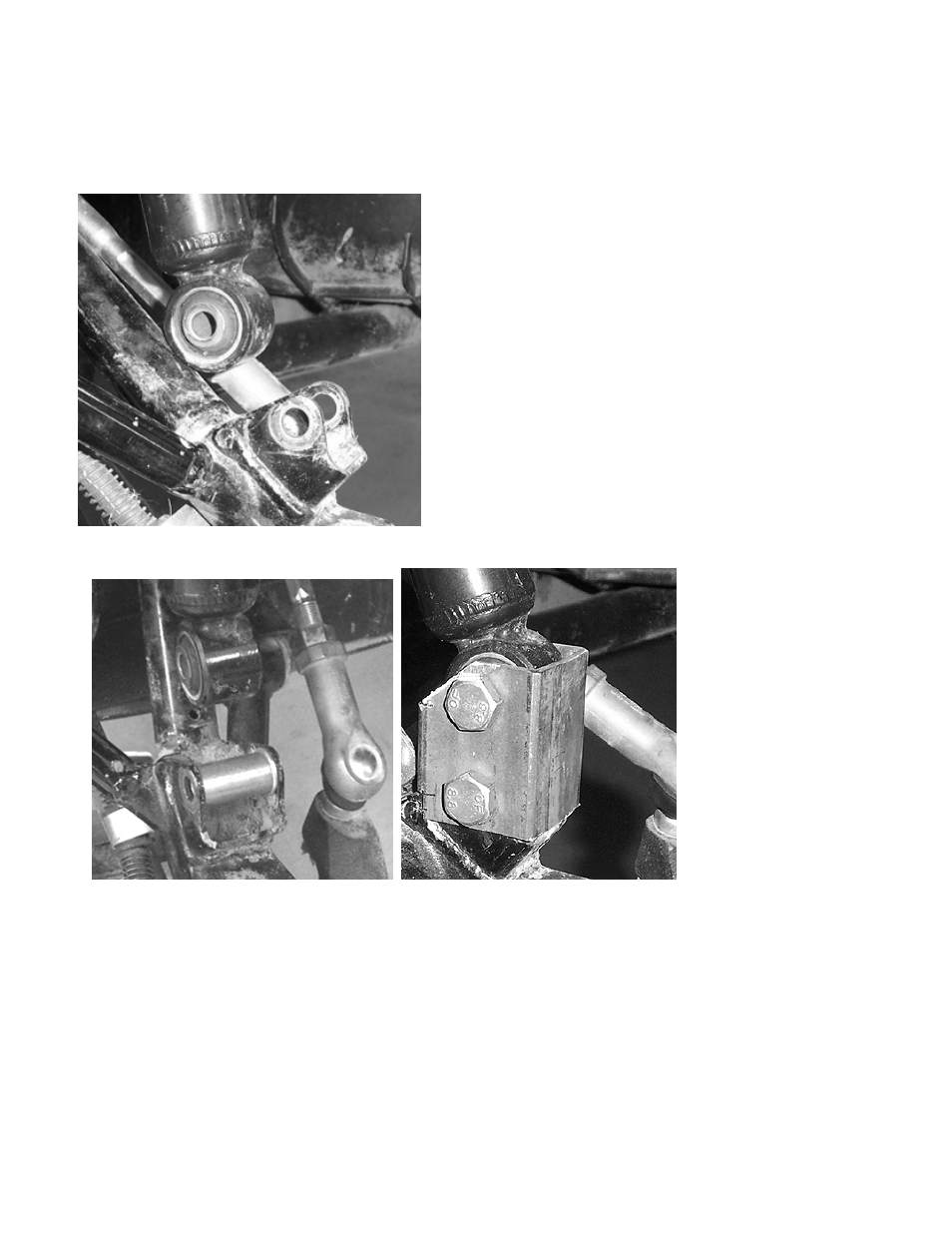

3) Slide bottom of lift bracket over A-arm shock mount and insert one medium spacer between the center
of the shock mount tabs and bracket.
4) Now insert the 10 x 60 hex bolt and secure the bracket and spacer to the frame with the 10mm
Locknut.
5) Slide bottom of the shock into top of the lift bracket. Insert the small spacer between the shock and the
bracket. Then insert the 10 x 60 hex bolt, but do not attach the 10mm locking nut yet!
