High Lifter Radiator Relocation Kit for Honda 420 Rancher User Manual
Page 8

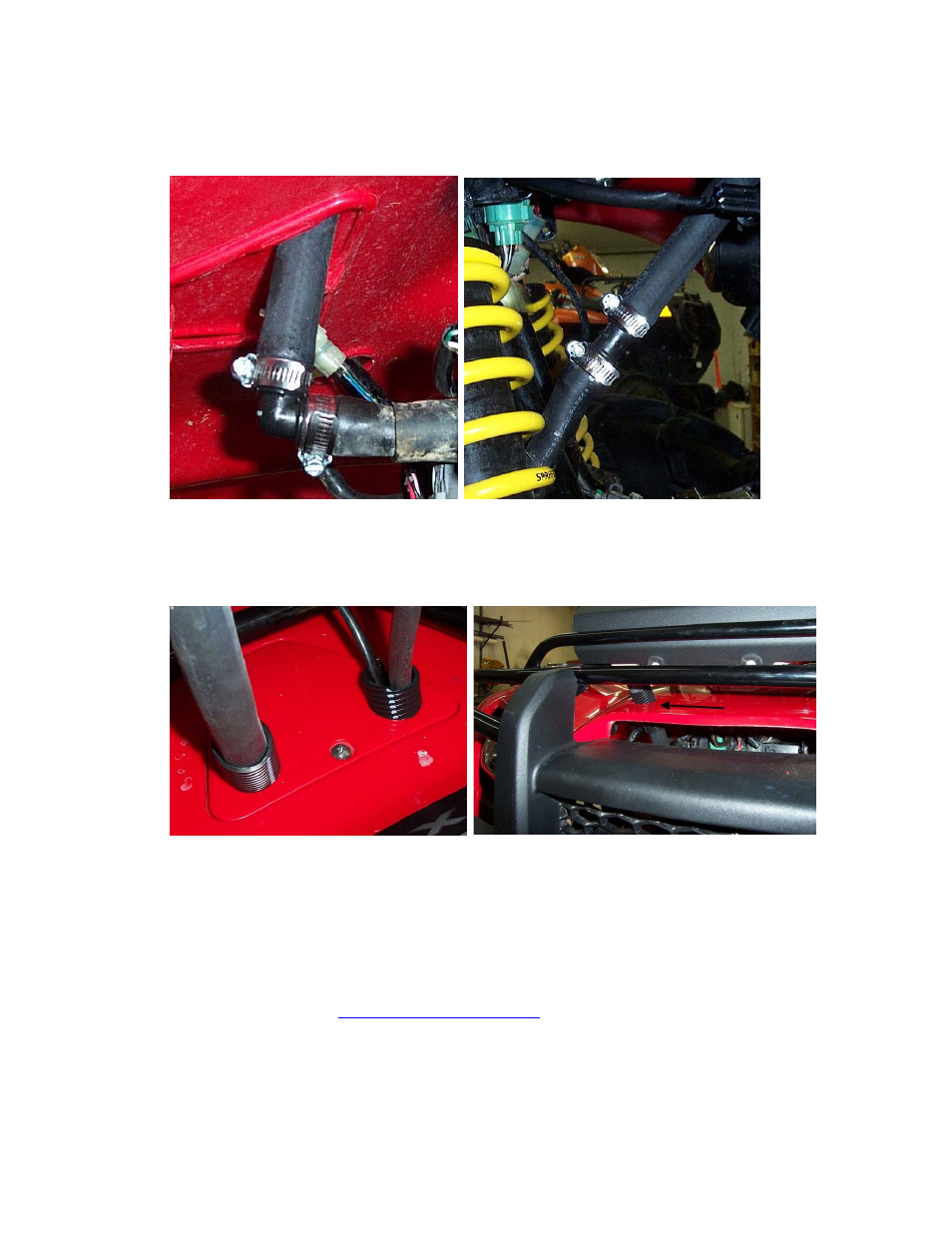

19. Now connect the inlet and outlet hoses to the hoses you left connect to the engine. You
will use the straight fitting on the lower hose and the 90 degree fitting on the upper hose.
Secure the hoses to the fitting with the clamps provided in the kit.
20. VERY IMPORTANT: Place the protective sleeve around the hoses to keep them from
rubbing on the rack. If the hose is left unprotected the vibration of the hose against the
rack will cause a hole to form in the hose.
21. Use all zip ties provided in the kit to secure all lines, hoses, and wires so that they do not
allow rubbing.
22. Fill the radiator with factory approved fluids and make sure to check levels after riding a
short distance. Air can get trapped in the system so make sure that it is properly filled.
Thank you for purchasing this kit and for many more products like
this check us our
