High Lifter Radiator Relocation Kit for Honda 420 Rancher User Manual
Page 4

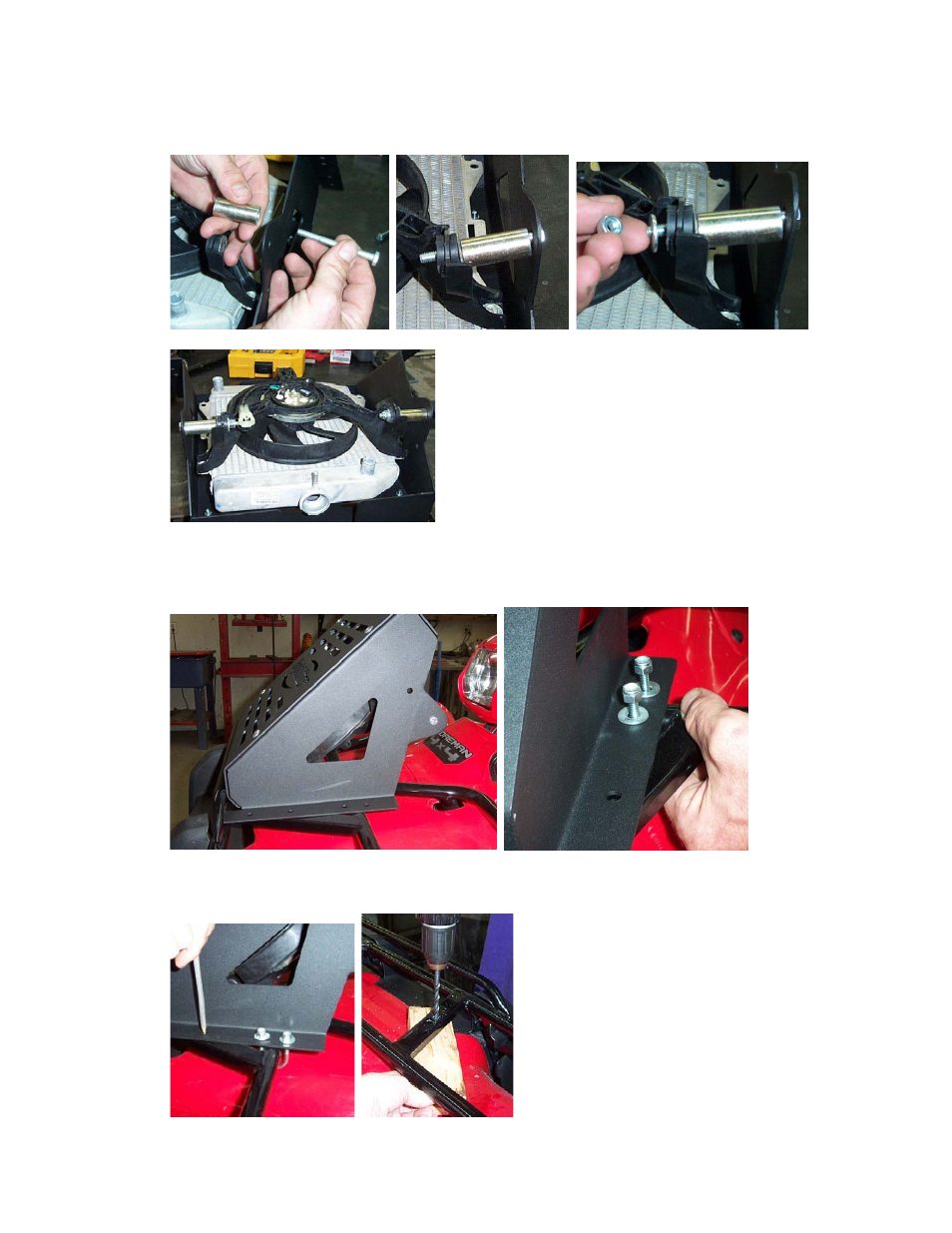

6. Next using the two spaces and 1/ x 2 ¾” bolts connect the fan to the brackets. Secure
them using ¼” flat washer and ¼” lock nuts.
7. Once the kit is assembled, place the kit on the front rack and loosely connect the U-bolts
to the frame. Mark the holes that need to be drilled to allow the hoses and wires for the
fan will pass through the rack and to allow the kit to be secured to the rack.
8. Mark and drill the two ¼” holes that need to be drilled in the rack to secure the kit. Place
a small block of wood under the rack so when you are drilling the hole and it punches
through you do not damage the plastic.
