High Lifter Radiator Relocation Kit for Honda 420 Rancher User Manual
Page 7

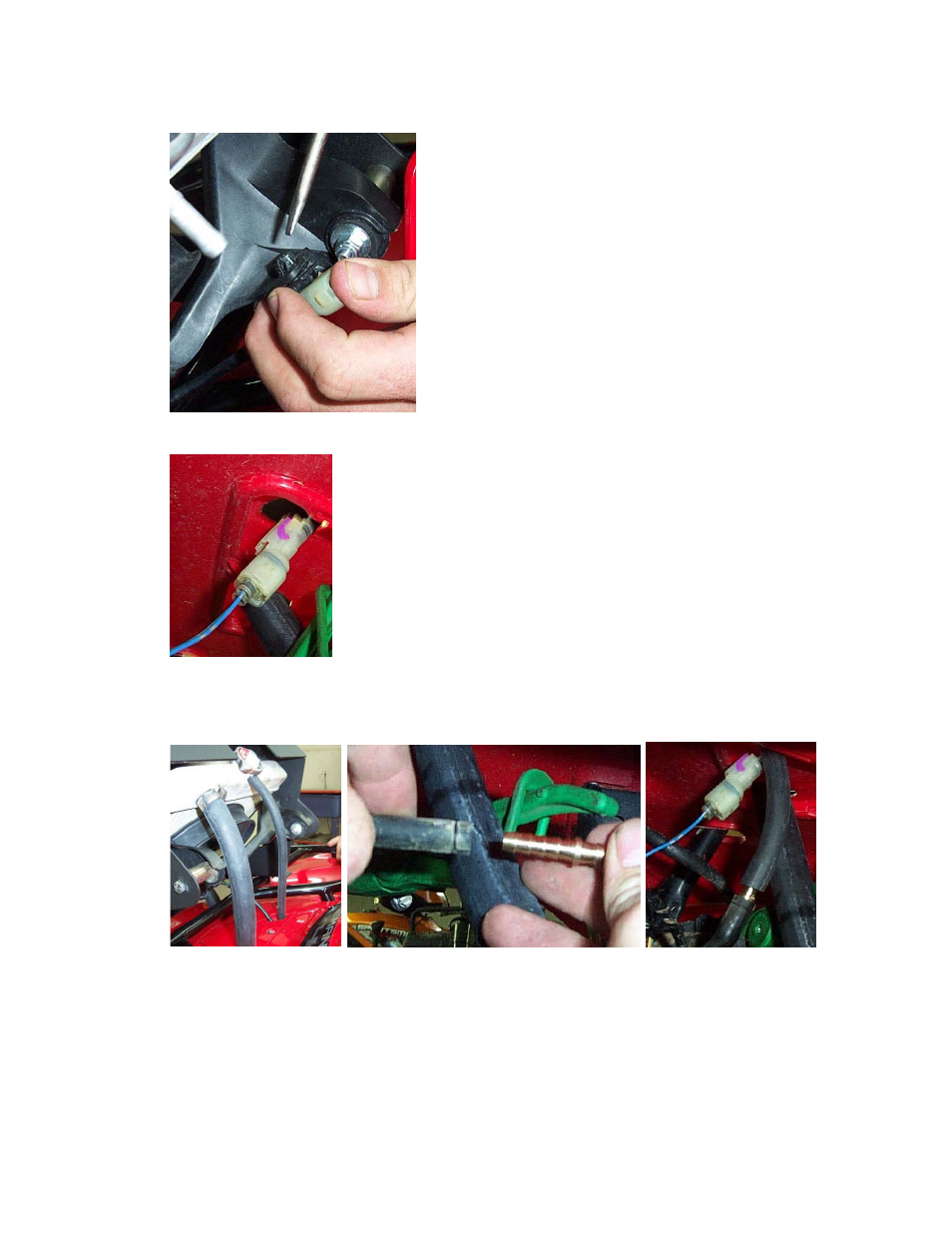

16. Disconnect the fan plug from the shroud.
17. Connect the fan plugs through the hole that was drilled and where you ran the ¼”
overflow hose.
18. Using the ¼” black hose provided in the kit, run the overflow hose from radiator, down
through the other hole that was drilled in the access panel. Connect the new hose to the
existing ¼” overflow hose using the ¼” hose barb. Use a zip tie to secure the hose to
barb.
