High Lifter Radiator Relocation Kit for Honda 420 Rancher User Manual
Page 5

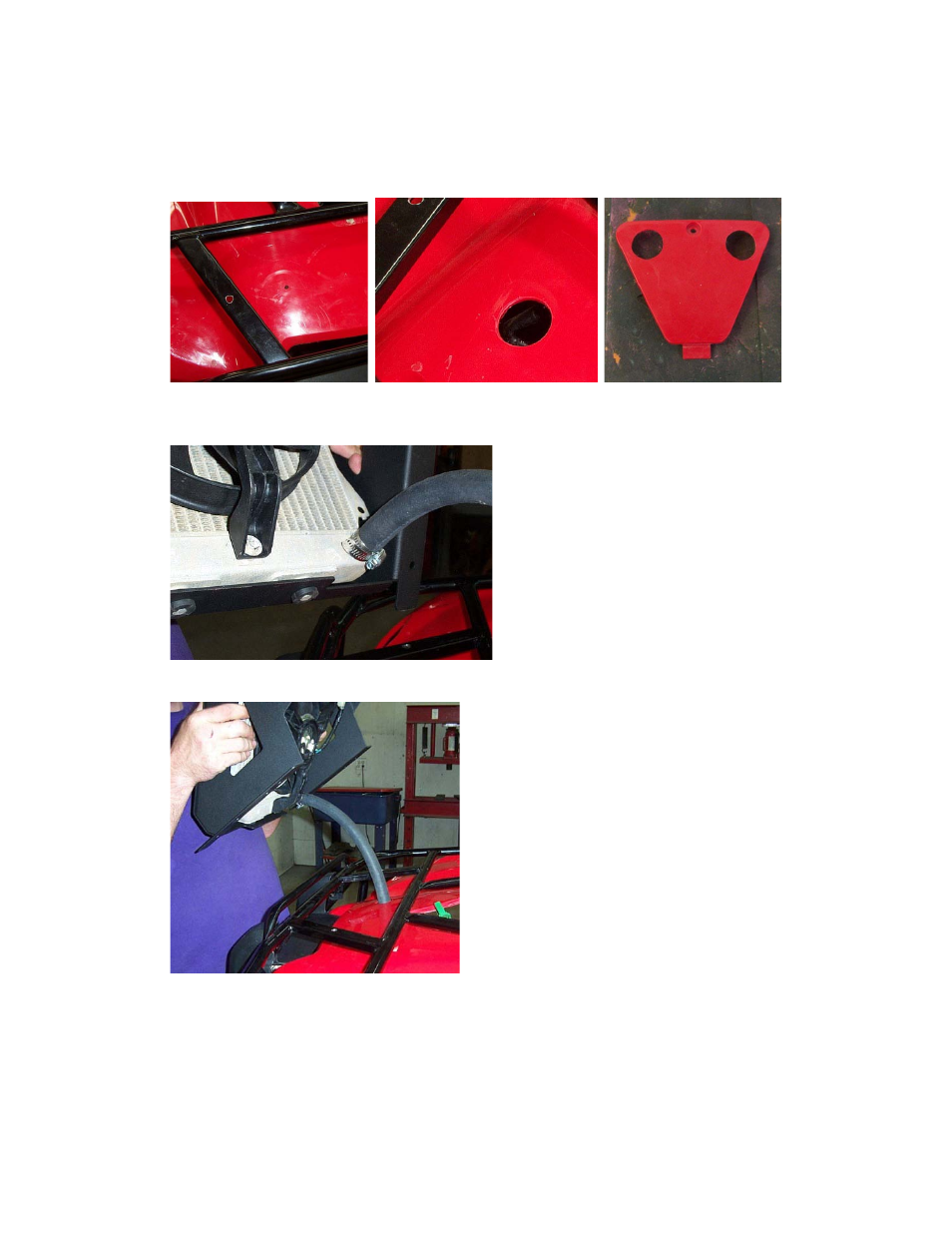

9. Mark all holes to be drilled then remove the radiator from the rack.
10. Drill three holes, one in the plastic and two in the access panel under the front rack. The
holes need to be 1” in diameter.
11. Connect 2ft of hose to the bottom of the radiator. Secure the hose to the lower portion of
the radiator with the clamp provided.
12. You need to insert the hose through the hole you drilled in the plastic as you are installing
the radiator relocation kit to the rack.
