High Lifter Lift Kit for Polaris 900 XP Ranger - Signature Series User Manual
Page 9
9

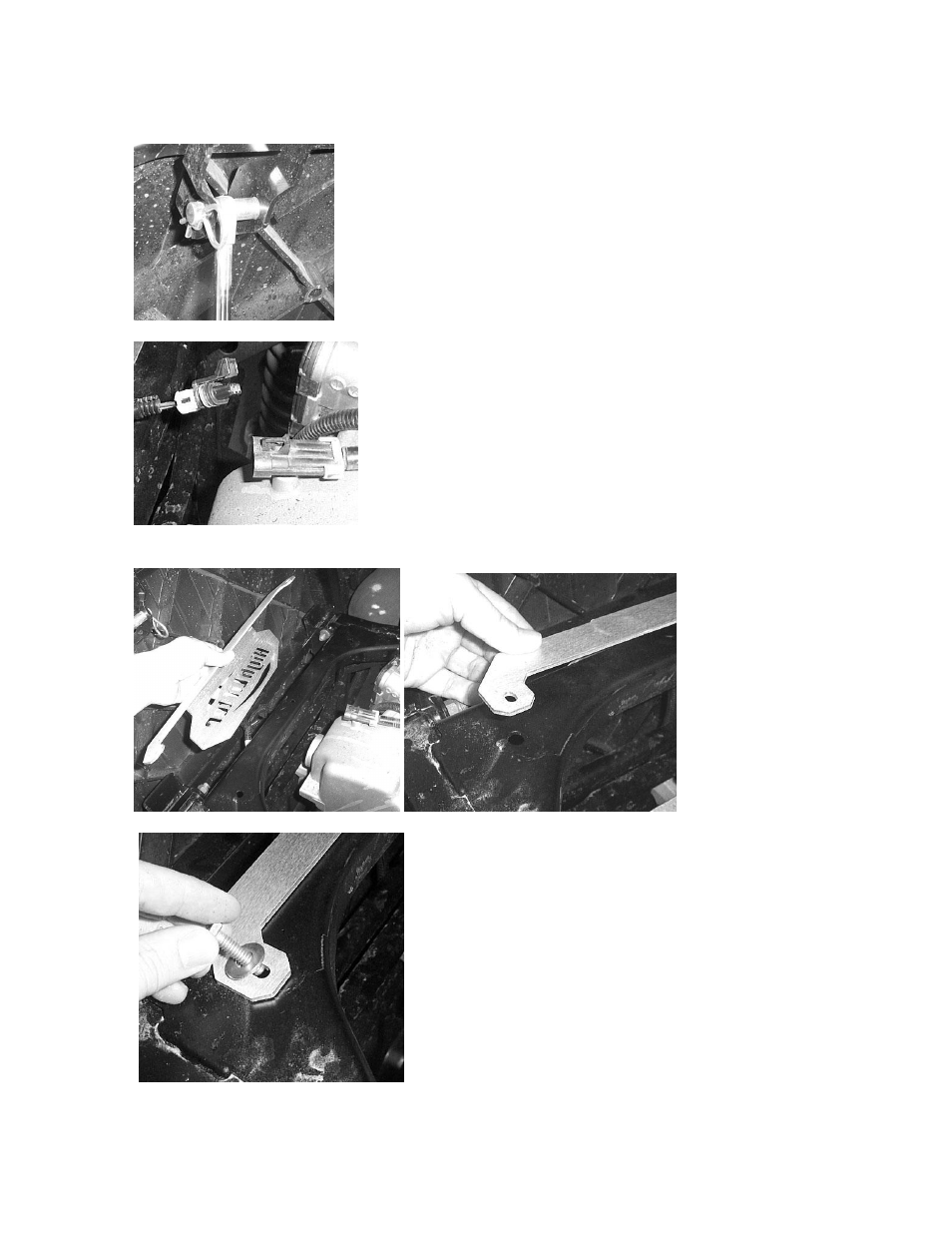

High Lifter Name Plate Installation
1. Raise the dump bed on the UTV. You will need to disconnect the shock from the bed to make the
installation easier. Let the bed tilt all the way back once you disconnect the shock.
2. Next disconnect the tail light wires and move them out of the way.
3. Now place the name plate on the rear frame making sure to align the holes in bracket to the holes
in the frame.
4. Connect the pate to the frame using the ¼ x 1” hex bolt and ¼” washer on the top of the plate.
