Rear lift installation – High Lifter Lift Kit for Polaris 900 XP Ranger - Signature Series User Manual
Page 5
5

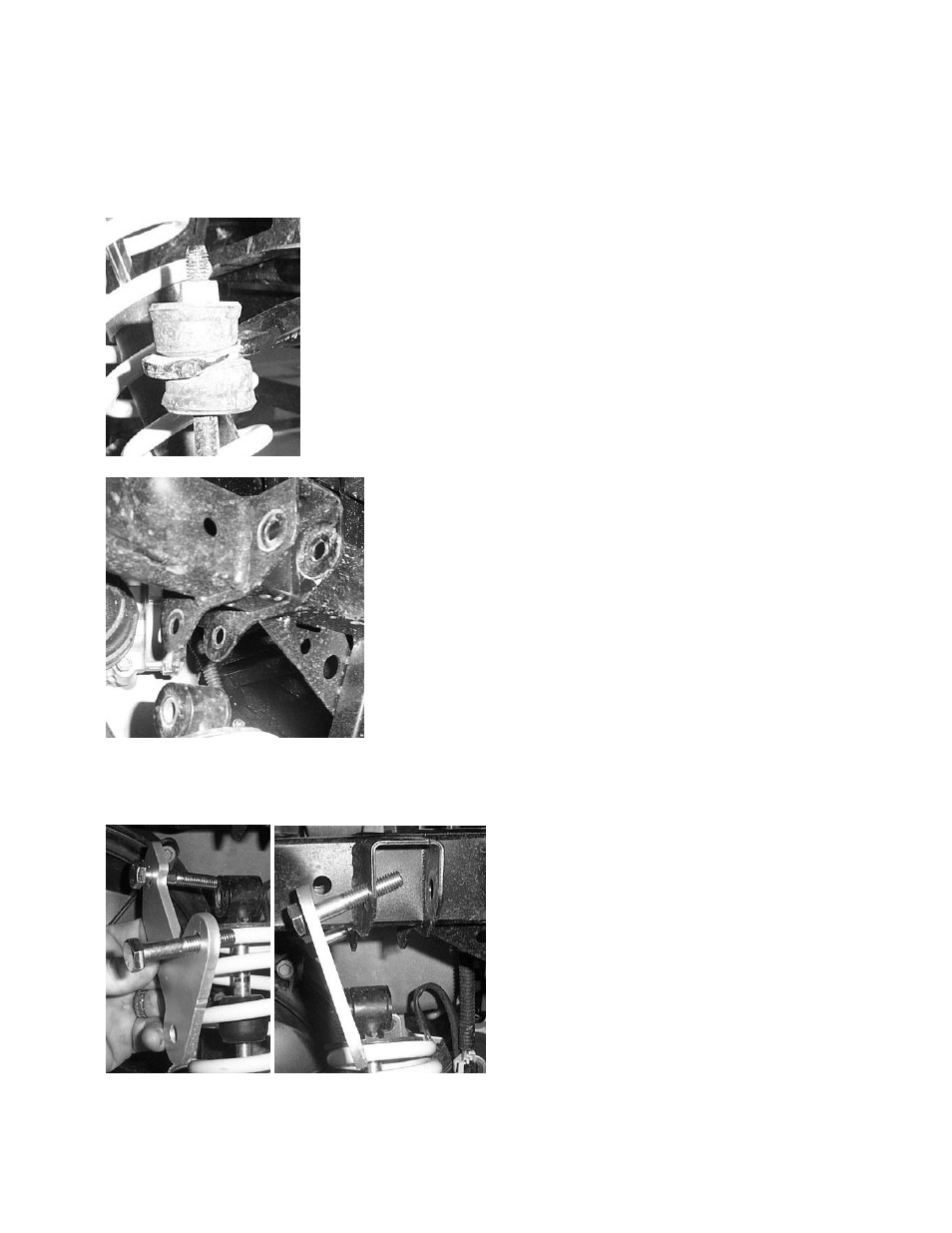

Rear Lift Installation
1) Place UTV transmission in park. Place jack under center of UTV front end and lift until rear wheels
clear the ground. Be careful to support the UTV properly so that A-arms and shocks can droop to full
extension.
2) Remove the rear wheels.
3) Loosen the nuts that secure the sway bar to the sway bar rod. Only loosen the nuts.
4) Disconnect the upper part of the rear shock from the frame.
5) Place the one rear lift bracket to the outside of the rear shock mount. It needs to be on the side that
faces the front of the UTV. Connect the bracket using two 10x65mm hex bolts. Insert the two bolts
through the bracket. Insert the bolts through the shock mount tabs.
