High Lifter Lift Kit for Polaris 900 XP Ranger - Signature Series - Manual (Page 3)

3

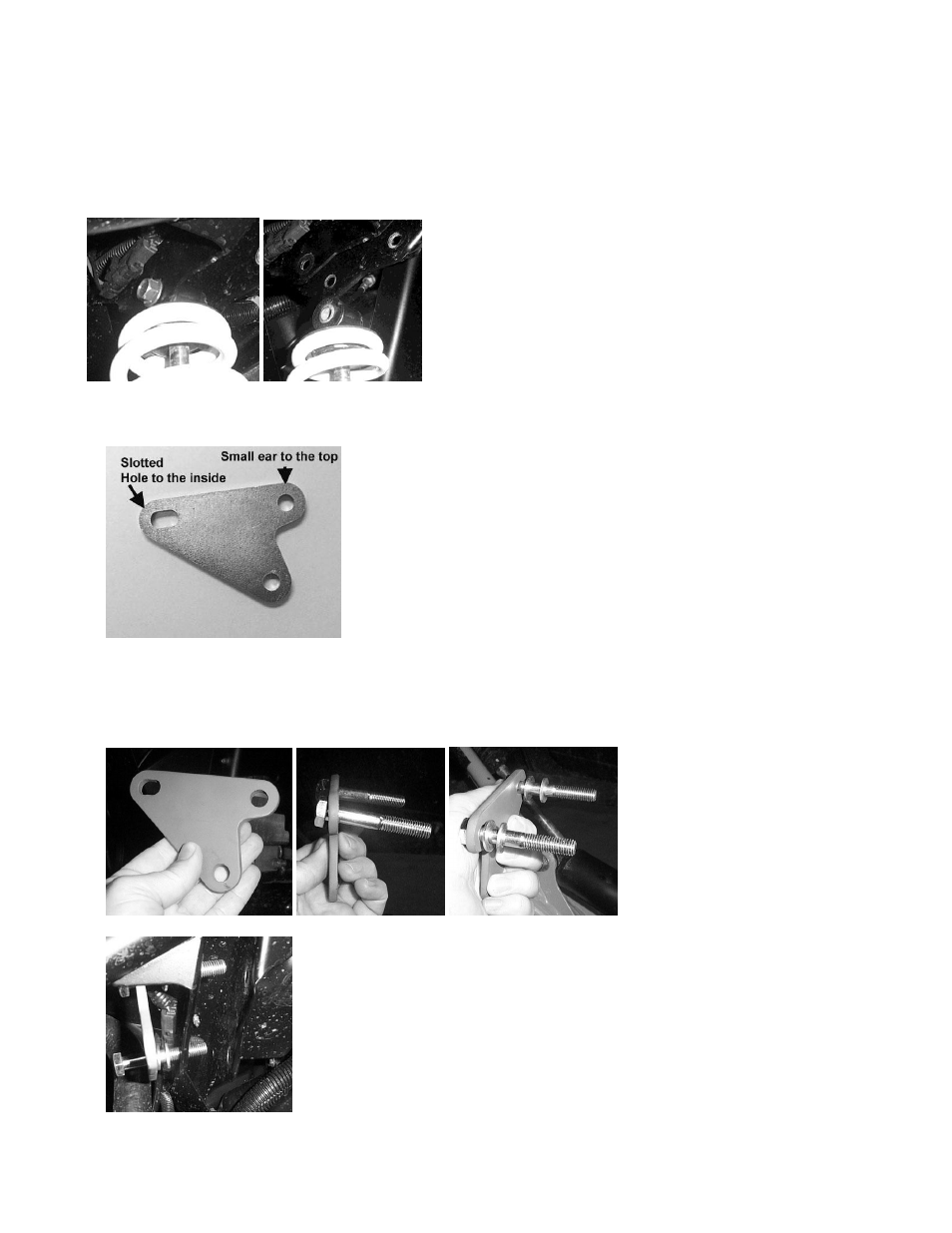

Front Lift Installation
1) Place UTV transmission in park. Place jack under center of UTV front end and lift until front wheels
clear the ground. Be careful to support the UTV properly so that A-arms and shocks can droop to full
extension.
2) Remove front wheels.
3) Remove the top of the front shocks.
4) When installing the front lift bracket make sure to note the direction of the bracket. The slotted hole
goes to the inside of the frame and the small ear goes to the top.
5) Place the one lift bracket to the outside of the front shock mount. It needs to be on the side that faces
the front of the UTV. Connect the bracket using two 10x55mm hex bolts and four 10mm flat washers.
Insert the two bolts through the bracket, then place two washers on each bolt. Insert the bolts through
the shock mount tabs.
