2. User Interface
2.1. Overview of the Recorder Panel
The Recorder Panel has been designed with various panes allowing its size to be changed
depending on the features in use.
You can use the Pane Display button to display or hide the second window pane.

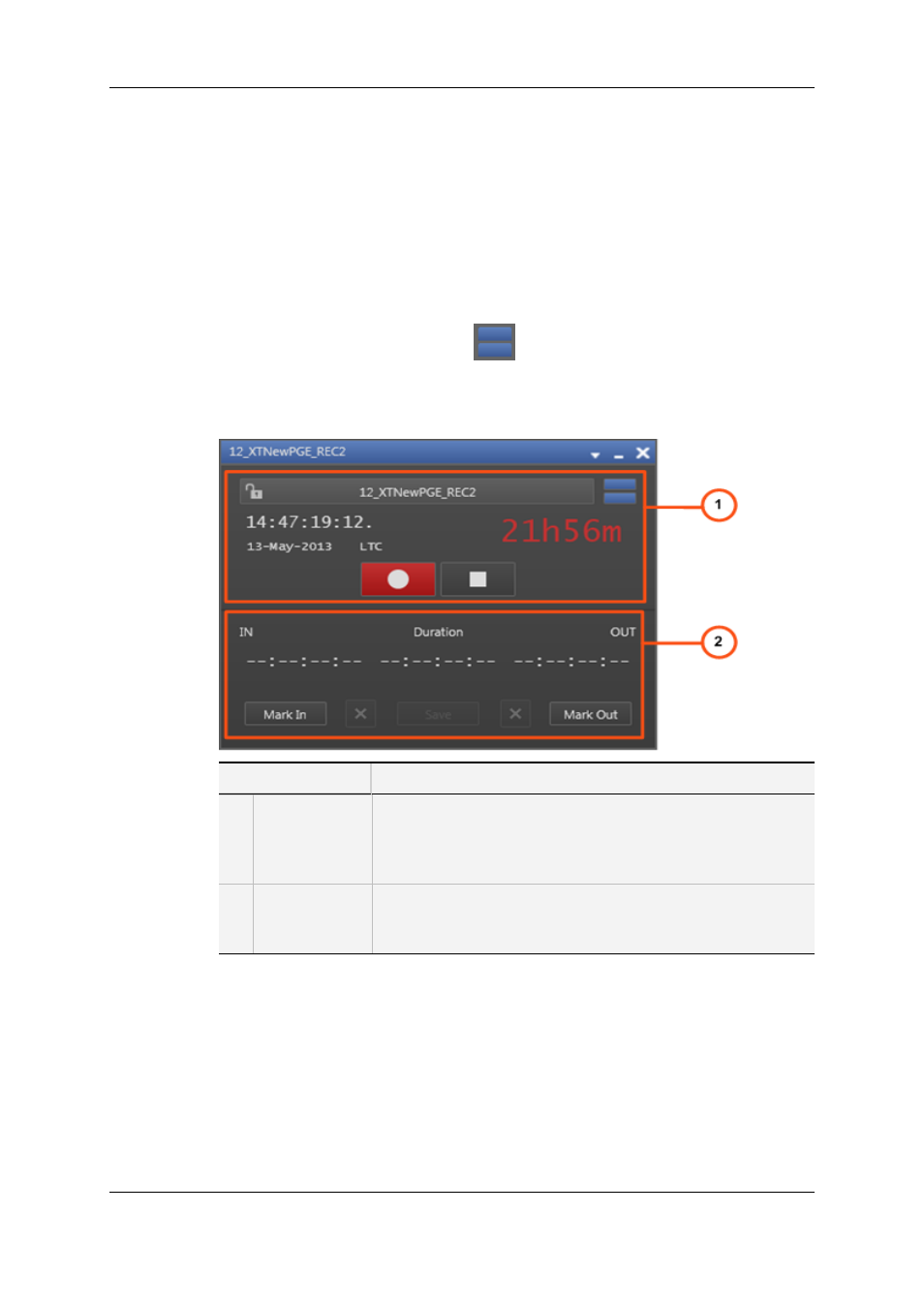

The Recorder Panel window contains the main panes highlighted on the following
screenshot and shortly described in the table below. These panes correspond to the
panes painted on the Pane Display icon.
Area Description
1. Recorder
Channel pane This pane provides the functions to start or stop the recorder
channels.
See section "Recorder Channel Pane" on page 3 for a
description of the user interface elements.
2. Clip Creation
pane This pane provides the functions to create a clip.
See section "Clip Creation Pane" on page 5 for a description of
the user interface elements.
