Integral-mounted Transmitter Installation
1.) Remove the cover from the instrument enclosure.

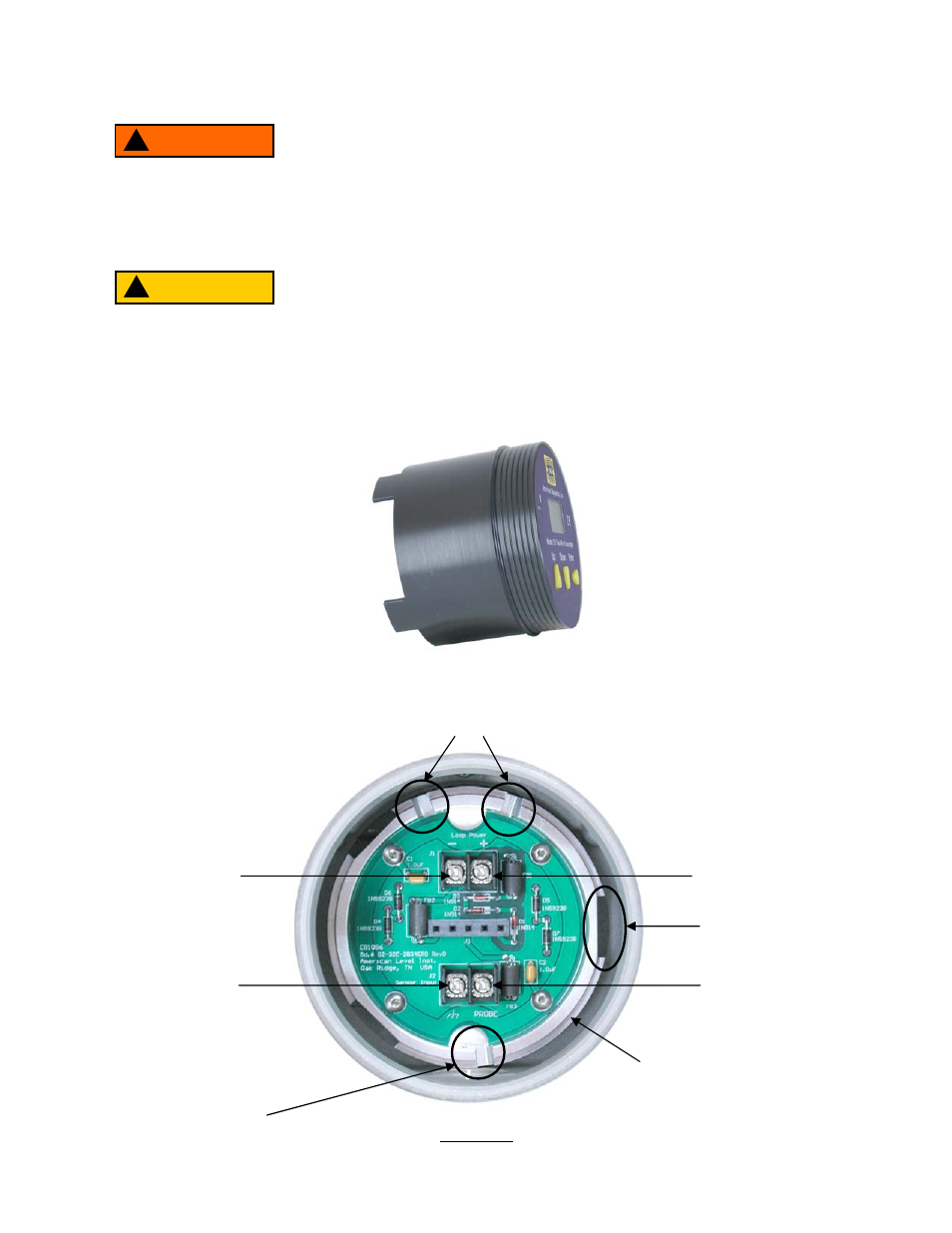

2.) Remove the electronic assembly (“puck”), Photo #4, from the instrument enclosure.
Hold the puck firmly around the diameter and pull it out of the enclosure. No tools
are necessary.
Photo #4
This will allow access to the user interface circuit board, shown in Photo #5.
Before starting installation procedures in hazardous areas, insure that all
power sources have been turned off and locked out. “Live” electrical
circuits can ignite flammable gasses and dusts.
Follow the wiring practices set forth in the National Electric Code, as well
as local electrical codes. These Codes supercede any information in this
manual.
Do not apply more than 33Vdc to the transmitter, as this may damage the
instrument.
CAUTION !
WARNING
!
Photo #5
Loop (-)
Probe Groun d
Loop (+)
Cable Stay
Cable Stays
Guide Slot
(1 of 3)
Base Ring
