CAUTION !

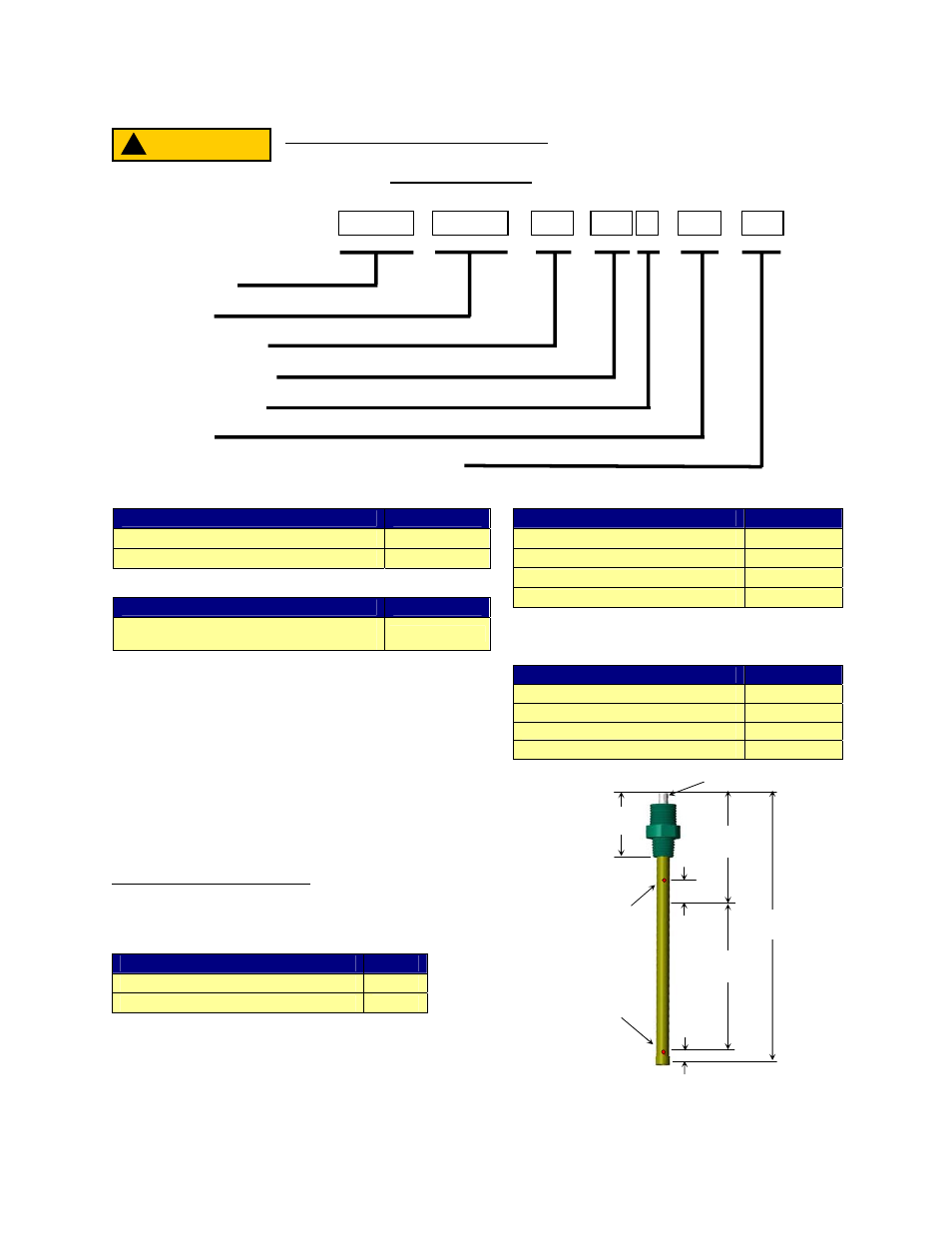

Probe (Capacitance Sensor) Model Configuration
Welded fittings cannot be adjusted. Ensure the dimensions are such that
when the probe fitting is fully engaged, the probe does not tighten
against the bottom of the container! Contact AMI Sales if you have any questions concerning
the dimensions or options. See dimensional drawing below.
CAPSEN - - -
/
- - -
Diameter
Fitting
Active Length
Overall Length
Length Units
Liquid
Options, Type, or Custom Specification
Diameter
Description Code
3/8″ Outer Diameter OD3/8
1/2″ Outer Diameter OD1/2
Fitting
Description Code
Model 175 Welded ½″ NPT (⅜″ or ½″
dia sensor)
M175NPT
Active Length
This is the measurement range of the probe. It
starts 0.375″ above the bottom tip of the probe,
and ends 1″ below the upper-most vent hole on
the probe.
Overall Length
This is defined as the total length of the probe,
measured from the bottom tip to the top of the
connector. Contact the factory to discuss
lengths exceeding the
Maximum Overall Lengths:
100″ for ⅜″-diameter, and
144″ for ½″-diameter.
Length Units
Description Code
Inches (nearest 1/10″) in
Centimeters (integer, no decimal) cm
**For expanded possibilities or FM-Approved requirements,
consider the AMI Model 32E and additional line of Industrial Probes.
***Custom probes require an AMI-approved customer-signed drawing.
“Custom” applies to any probe not falling in the “S”, “HCap”, or “RSvc”
Option categories. Also probes having a fitting other than the basic
M175NPT with BNC, those deviating from the length limits, or special
probes for use in conductive media.
Liquid*
Description Code
Liquid Nitrogen LN2
Liquid Oxygen O2
Liquid Hydrogen H2
Liquid Carbon Dioxide CO2
*For others, the commonly recognized chemical formula
(or abbreviation) will be used. Contact factory.
Options**
Description Code
Standard (⅜″ only) S
High Capacitance (½″ dia. only) HCap
Rugged Service (½″ dia. only) RSvc
Flange – Custom***, contact AMI. TBD: per Spec
0.375″
Typical Capacitance Probe
with M175NPT Welded Fitting
and BNC Connector
Vent Hole
Fill Hole
1.0″
Overall
Length
Minimum 4″
without flange.
Active
Length
Approximately
2-5/16″
BNC Connector
