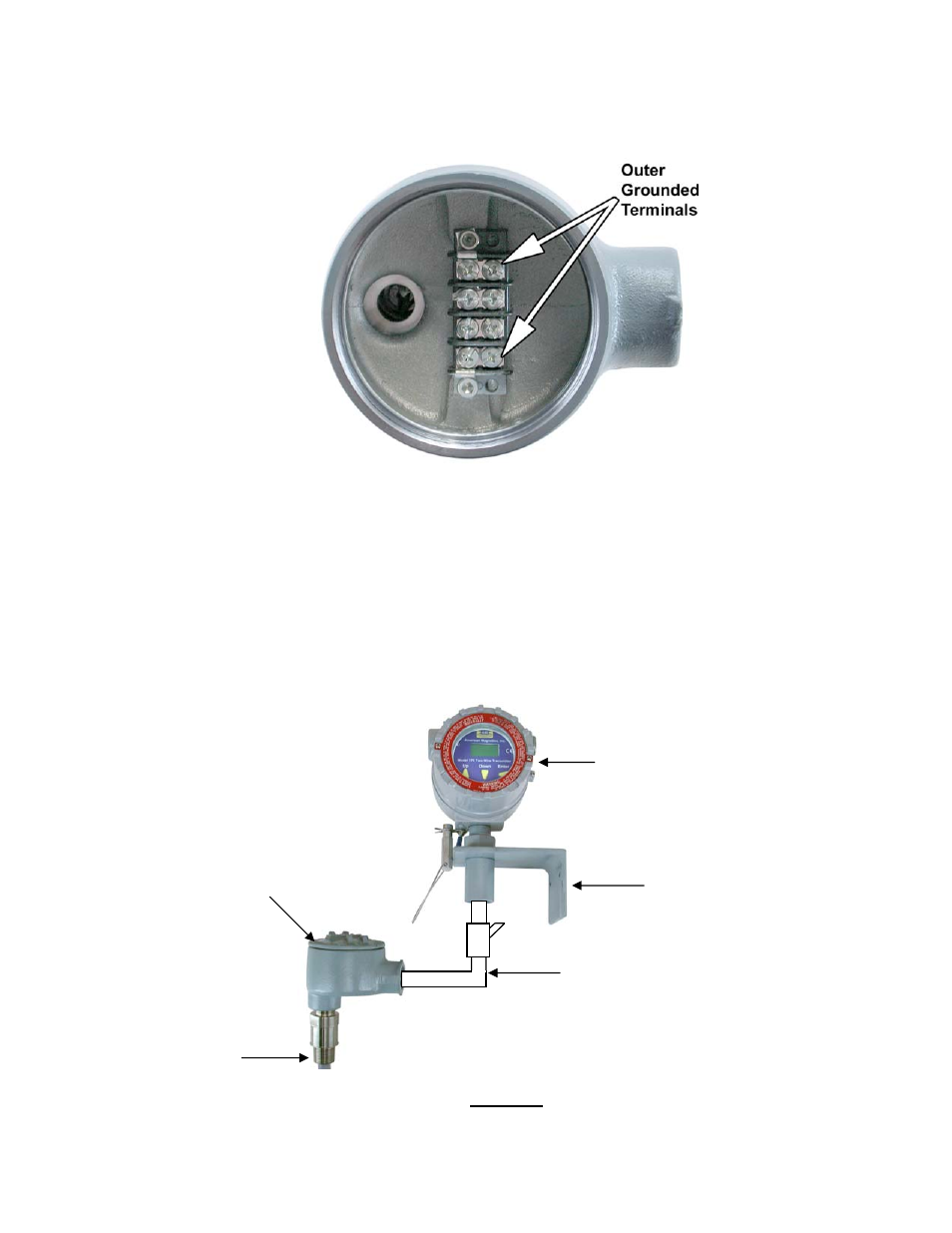

4.) The probe wire is the center conductor of the coax cable. Connect the Probe wire
to one of the two inner terminals on the terminal block inside the Interconnection
Housing. The shield connects to an outer (ground) terminal (Photo #6).
Photo #6
5.) Remove the cover from the instrument enclosure.
6.) Remove the electronic assembly (“puck”) from the instrument enclosure. Hold the
puck firmly around the diameter and pull it out of the enclosure. No tools are
necessary.
7.) Using the U-Bolts provided, attach the Remote-Mounting Bracket (Photo #7) to a
pipe stand or railing. The U-Bolts are sized for a 2″ diameter pipe.
Photo #7
Instrument
Enclosure
Remote-mounting
Bracket
Conduit
Interconn e ction
Housing
Probe
