190-00709-00 Rev. A Garmin G1000 Pilot’s Guide for the Socata TBM 850 2-31
FLIGHT INSTRUMENTS
TRAFFIC ANNUNCIATION
Traffic is displayed symbolically on the Inset Map (PFD), the Navigation Map Page (MFD), and various other
MFD page maps. Refer to the Hazard Avoidance Section and Appendix F for more details about the Traffic
Information Service (TIS). When a Traffic Advisory (TA) is detected, the following automatically occurs:
• The PFD Inset Map is enabled, displaying traffic
• A flashing black-on-yellow ‘TRAFFIC’ annunciation (Figure 2-44) appears to the top left of the Attitude
Indicator for 5 seconds and remains displayed until no TAs are detected in the area
• A single “TRAFFIC” aural alert is generated
If additional TAs appear, new aural and visual alerts are generated.
TAWS ANNUNCIATIONS
Terrain Awareness and Warning System (TAWS) annunciations appear on the PFD to the upper left of the
Altimeter (also where the marker beacon annunciations appear). Refer to the Hazard Avoidance Section and
Appendix A for information on TAWS alerts and annunciations.

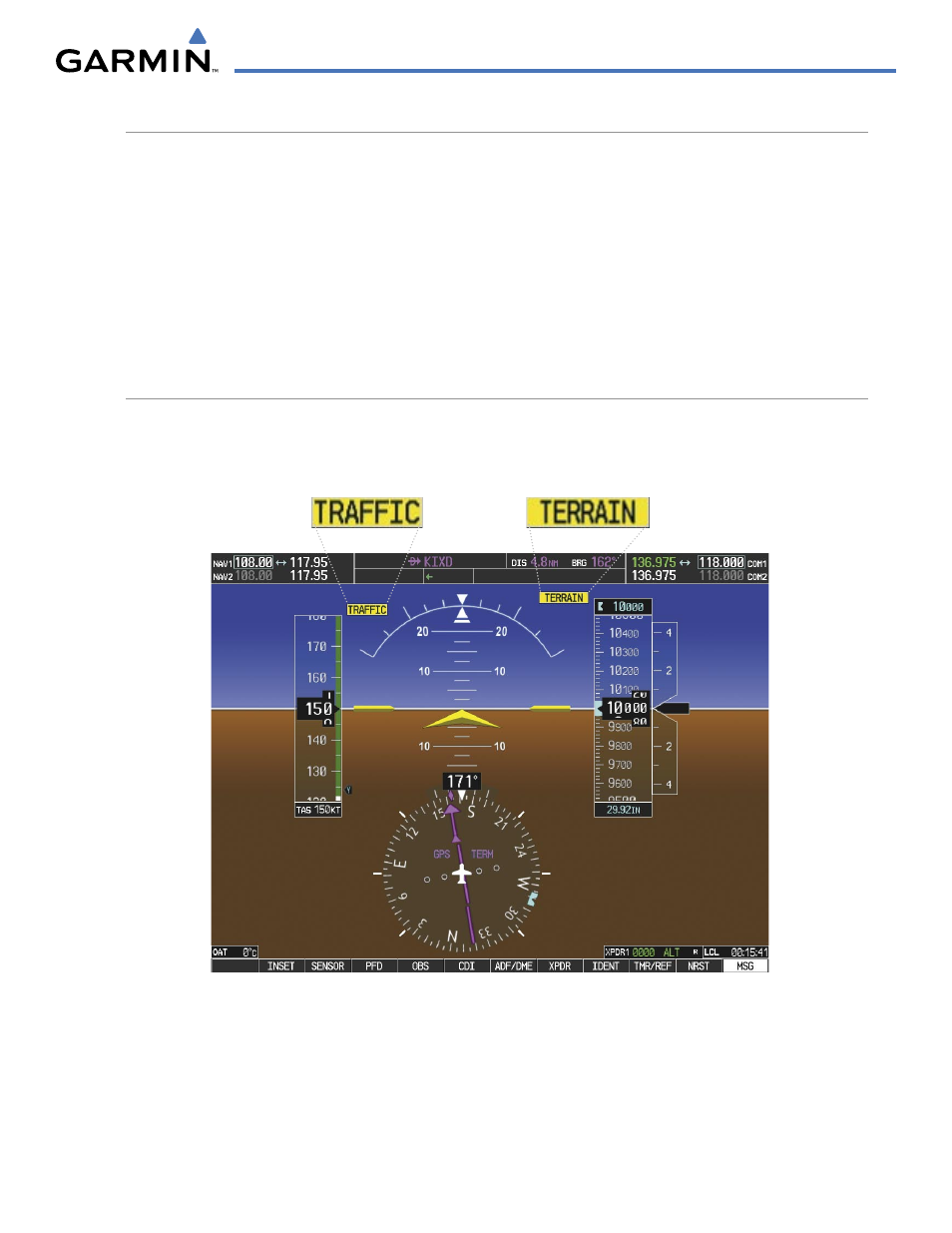

Figure 2-44 Traffic and Example TAWS Annunciations
