190-00709-00 Rev. A Garmin G1000 Pilot’s Guide for the Socata TBM 850 6-45
HAZARD AVOIDANCE
S
ECTOR
S
CAN
1) While in horizontal scan mode, select the BRG Softkey to display the Bearing Line and place the cursor in the
BEARING field. If the Bearing Line is not displayed, press the MENU Key and turn the large FMS Knob to select
Show Bearing Line.
2) Press the ENT Key.

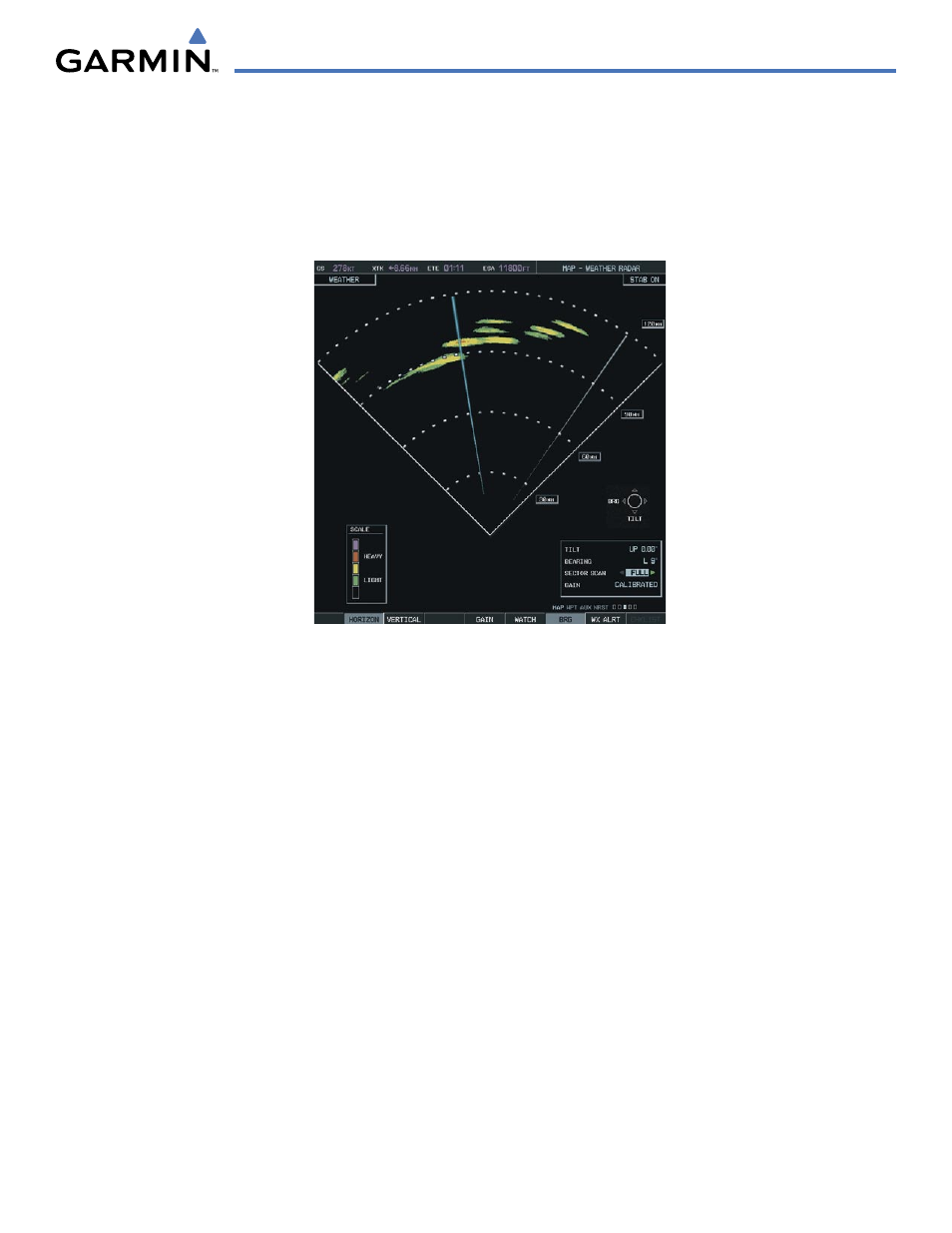

Figure 6-51 Selecting Sector Scan Position
3) Turn the small FMS Knob to place the Bearing Line in the desired position. The location of the Bearing Line
becomes the center point of the Sector Scan.
4) Turn the large FMS Knob to place the cursor in the SECTOR SCAN field.
5) Turn the small FMS Knob to select FULL, 60˚, 40˚, or 20˚ scan.
6) If desired, readjust the Bearing Line as discussed previously to change the center of the Sector Scan.
7) Select the BRG Softkey again to remove the Bearing Line and cursor. The bearing reference is also reset to 0º.
