Garmin G1000 Pilot’s Guide for the Socata TBM 850 190-00709-00 Rev. A 5-6
FLIGHT MANAGEMENT

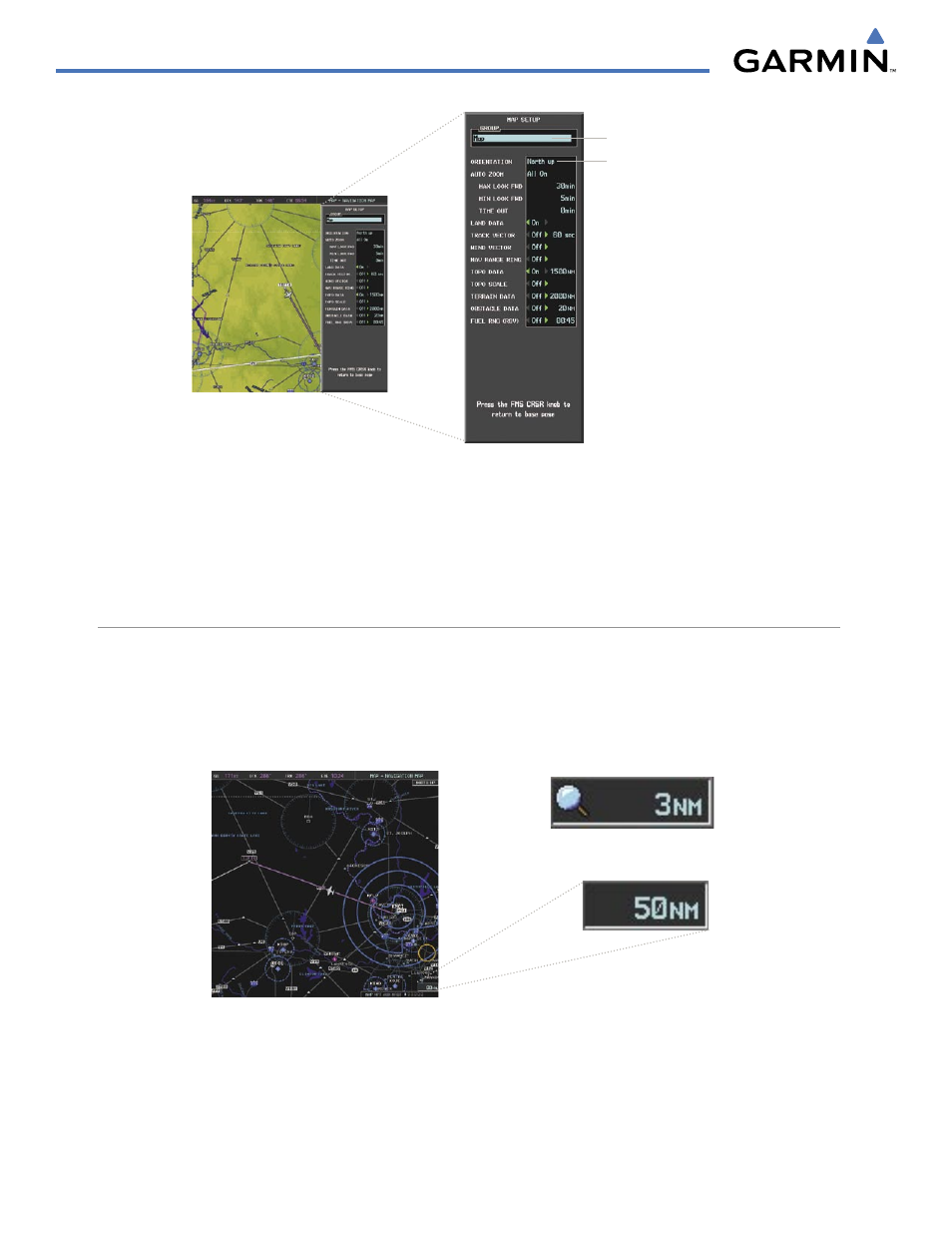

Figure 5-5 Map Setup Menu Window - Map Group
Orientation Field
Map Group Selection
4) Turn the small FMS Knob to select the desired orientation.
5) Select the ENT Key to select the new orientation.
6) Press the FMS Knob to return to the base page.
MAP RANGE
There are 28 different map ranges available, from 500 feet to 2000 nm. The current range is indicated in
the lower right corner of the map and represents the top-to-bottom distance covered by the map. When the
map range is decreased to a point that exceeds the capability of the G1000 to accurately represent the map,
a magnifying glass icon is shown to the left of the map range. To change the map range turn the Joystick
counter-clockwise to decrease the range, or clockwise to increase the range.
Figure 5-6 Map Range
Range Overzoom
