37
Fatal1ty X79 Professional Series Motherboard
English

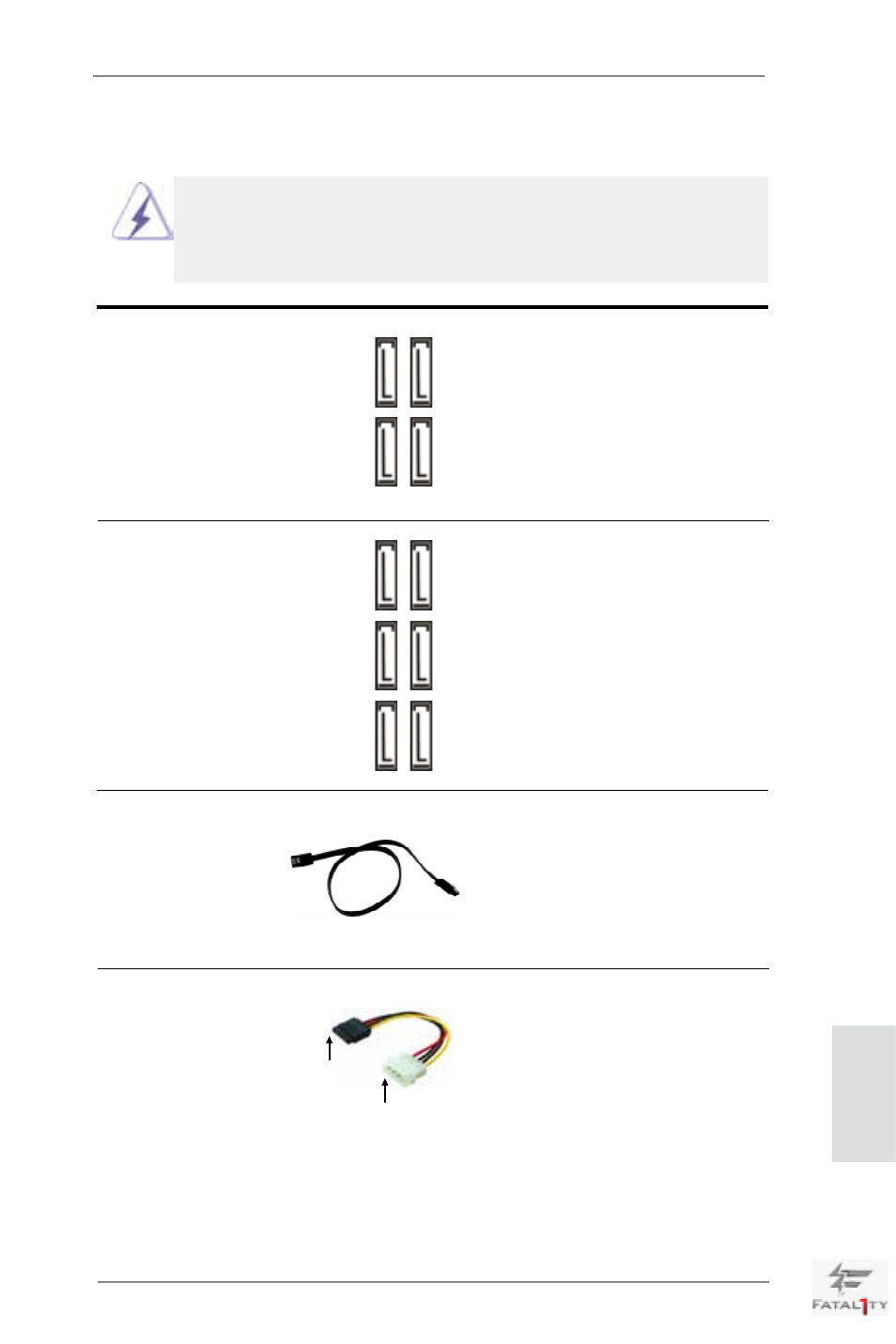

2.11 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2 (SATA2)
(SATA2_0_1: see p.4, No. 13) connectors support SATA data
(SATA2_2_3: see p.4, No. 12) cables for internal storage
devices. The current SATA2
interface allows up to 3.0 Gb/s
data transfer rate.
Serial ATA3 Connectors These six Serial ATA3
(SATA3_0_1: see p.4, No. 14) (SATA3) connectors support
(SATA3_M0_M1: see p.4, No. 15)
SATA data cables for internal
(SATA3_M2_M3: see p.4, No. 16) storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SA
TA2_0 SA
TA2_3
SA
TA2_1 SA
TA2_2
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
SA
TA3_1
SA
TA3_0
SA
TA3_M3 SA
TA3_M1
SA
TA3_M2 SA
TA3_M0
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional) power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
